Bremsgerät for BMW MINI F66 JCW

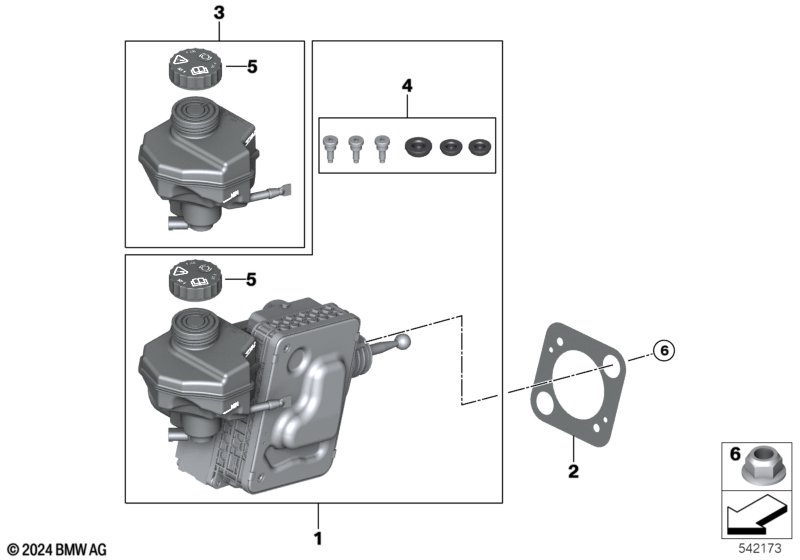

This Bremsgerät technical drawing provides a detailed breakdown of the assembly for the MINI F66 JCW. It includes part names, part numbers and all associated mounting hardware.
| Nr. | Beschreibung | Erläuterungen | Anzahl | Von | Bis | Teilenummer | Preis | Ergänzungen | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Bremsgerät | 1 | 11/2024 | 34505B41380 | Shop at ECS Tuning | |||||
| 01 | Bremsgerät | 1 | 34505B6A739 | Shop at ECS Tuning | ||||||
| 02 | Dichtung Bremskraftverstärker | 1 | 34505A59585 | Shop at ECS Tuning | ||||||
| 03 | Reparatursatz Ausgleichsbehälter | 1 | 34505A51319 | Shop at ECS Tuning | ||||||
| 04 | Behälterstopfen | 1 | 34505A51311 | Shop at ECS Tuning | ||||||
| 05 | Verschlussdeckel Ausgleichsbehälter | 1 | 34505A51314 | Shop at ECS Tuning | ||||||
| 06 | Bundmutter selbstsichernd | M8-10 ZNS3 | 2 | 07119905374 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW MINI F66 JCW Bremsgerät?
- This technical diagram illustrates the Bremsgerät within the Bremsen group for the MINI F66 JCW. It provides a detailed exploded view of the components, identifying key parts such as the Bremsgerät (Part #34505B41380).
- Which models use the hardware listed in this Bremsgerät?
- The hardware and components featured in the Bremsgerät are specific to the MINI F66 JCW. These technical specifications ensure that parts like the Bremsgerät (34505B41380) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Bremsgerät assembly?
- Each item in the Bremsgerät corresponds to the numbered list below the illustration. For the MINI F66 JCW, you can identify the Bremsgerät by locating its position on the schematic, which then links to the official BMW part number 34505B41380 for the Bremsen section.
