Fusshebelwerk Handschaltgetriebe for BMW 2 Series F45 Active Tourer 218d (2015)

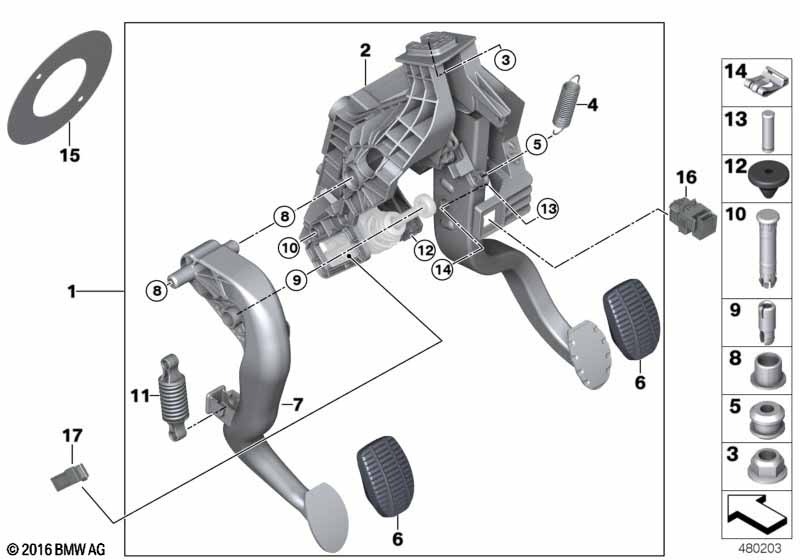

This Fusshebelwerk Handschaltgetriebe technical drawing provides a detailed breakdown of the assembly for the 2 Series F45 Active Tourer 218d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2015.
| Nr. | Beschreibung | Erläuterungen | Anzahl | Von | Bis | Teilenummer | Preis | Ergänzungen | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Für Fahrzeuge mit Automatikgetriebe und Sport-Automatik Getriebe und Steptronic mit Doppelkupplungsgetriebe |
S205A=Nein S2TBA=Nein S2TFA=Nein |
||||||||
| 01 | Fusshebelwerk komplett | 1 | 35006870848 | Shop at ECS Tuning | ||||||
| 02 | Fusshebelwerk mit Bremspedal | 1 | 35006860664 | Shop at ECS Tuning | ||||||
| 03 | Bundmutter selbstsichernd | M8-10 ZNS3 | 3 | 07119905374 | Shop at ECS Tuning | |||||
| Befestigung Lagerbock |
||||||||||
| 04 | Zugfeder | 1 | 35006860668 | Shop at ECS Tuning | ||||||
| Bremspedal | ||||||||||
| 05 | Tülle | D=7,5MM | 1 | 35411113728 | $0.57 | Shop at ECS Tuning | ||||
| Bremspedal | ||||||||||
| 06 | Pedalüberzug | 2 | 35206860691 | Shop at ECS Tuning | ||||||
| Bremspedal und Kupplungspedal |
||||||||||
| 07 | Kupplungspedal | 1 | 35006860669 | Shop at ECS Tuning | ||||||
| 08 | Lagerbuchse | 2 | 35006873503 | Shop at ECS Tuning | ||||||
| Kupplungspedal | ||||||||||
| 09 | Bolzen Geberzylinder | 1 | 35006860670 | Shop at ECS Tuning | ||||||
| Befestigung Kupplungspedal |
||||||||||
| 10 | Bolzen Geberzylinder | 2 | 35006860673 | Shop at ECS Tuning | ||||||
| Befestigung Lagerbock |
||||||||||
| 11 | Druckfeder | 1 | 35306860671 | Shop at ECS Tuning | ||||||
| Kupplungspedal | ||||||||||
| 12 | Anschlagpuffer Kupplungspedal | 1 | 35306860672 | Shop at ECS Tuning | ||||||
| 13 | Bolzen Bremspedal | 1 | 34336772928 | $0.66 | Shop at ECS Tuning | |||||
| Befestigung Bremskraftverstärker |
||||||||||
| 14 | Sicherung | B10-ZNS3 | 1 | 07129904567 | $0.40 | Shop at ECS Tuning | ||||
| 15 | Dichtung Bremskraftverstärker | 1 | 34336857618 | Shop at ECS Tuning | ||||||
| 16 | Bremslichtschalter | 1 | 35006876896 | Shop at ECS Tuning | ||||||
| 17 | Modul Kupplungsschalter | 1 | 35426876898 | Shop at ECS Tuning | ||||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 2 Series F45 Active Tourer 218d Fusshebelwerk Handschaltgetriebe?
- This technical diagram illustrates the Fusshebelwerk Handschaltgetriebe within the Fussbetätigung group for the 2 Series F45 Active Tourer 218d produced during 2015. It provides a detailed exploded view of the components, identifying key parts such as the Fusshebelwerk komplett (Part #35006870848).
- Which models use the hardware listed in this Fusshebelwerk Handschaltgetriebe?
- The hardware and components featured in the Fusshebelwerk Handschaltgetriebe are specific to the 2 Series F45 Active Tourer 218d produced during 2015. These technical specifications ensure that parts like the Fusshebelwerk komplett (35006870848) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Fusshebelwerk Handschaltgetriebe assembly?
- Each item in the Fusshebelwerk Handschaltgetriebe corresponds to the numbered list below the illustration. For the 2 Series F45 Active Tourer 218d, you can identify the Fusshebelwerk komplett by locating its position on the schematic, which then links to the official BMW part number 35006870848 for the Fussbetätigung section.
