Fusshebelwerk Automatikgetriebe for BMW 2 Series F45 Active Tourer 218d (2015)

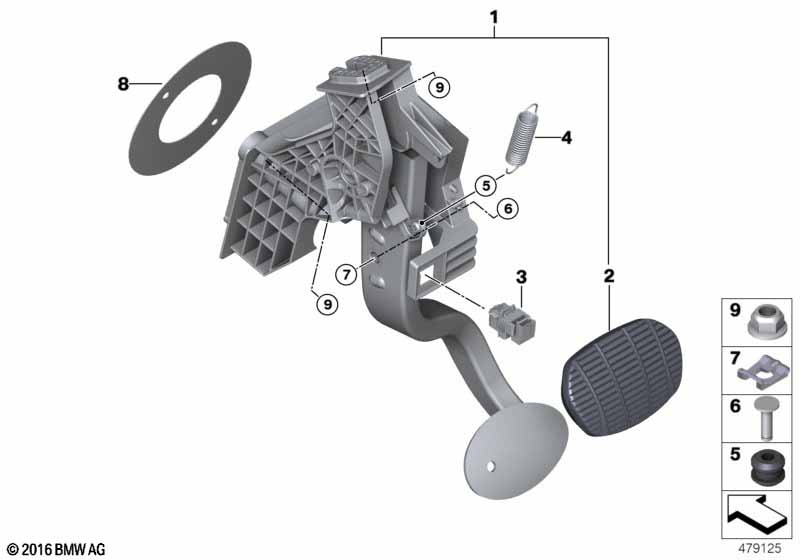

This Fusshebelwerk Automatikgetriebe technical drawing provides a detailed breakdown of the assembly for the 2 Series F45 Active Tourer 218d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2015.
| Nr. | Beschreibung | Erläuterungen | Anzahl | Von | Bis | Teilenummer | Preis | Ergänzungen | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Für Fahrzeuge mit Automatikgetriebe oder Sport-Automatik Getriebe oder Steptronic mit Doppelkupplungsgetriebe |
S205A=Ja S2TBA=Ja S2TFA=Ja |
||||||||
| 01 | Fusshebelwerk komplett | 1 | 35006856596 | Shop at ECS Tuning | ||||||
| 02 | Pedalüberzug | 1 | 35206860692 | Shop at ECS Tuning | ||||||
| 03 | Bremslichtschalter | 1 | 35006876896 | Shop at ECS Tuning | ||||||
| 04 | Zugfeder | 1 | 35006860668 | Shop at ECS Tuning | ||||||
| 05 | Tülle | D=7,5MM | 1 | 35411113728 | $0.57 | Shop at ECS Tuning | ||||
| 06 | Bolzen Bremspedal | 1 | 34336772928 | $0.66 | Shop at ECS Tuning | |||||
| 07 | Sicherung | B10-ZNS3 | 1 | 07129904567 | $0.40 | Shop at ECS Tuning | ||||
| 08 | Dichtung Bremskraftverstärker | 1 | 34336857618 | Shop at ECS Tuning | ||||||
| 09 | Bundmutter selbstsichernd | M8-10 ZNS3 | 3 | 07119905374 | Shop at ECS Tuning | |||||
