Fusshebelwerk Automatikgetriebe for BMW 5 Series G31 Touring 540iX (2019)

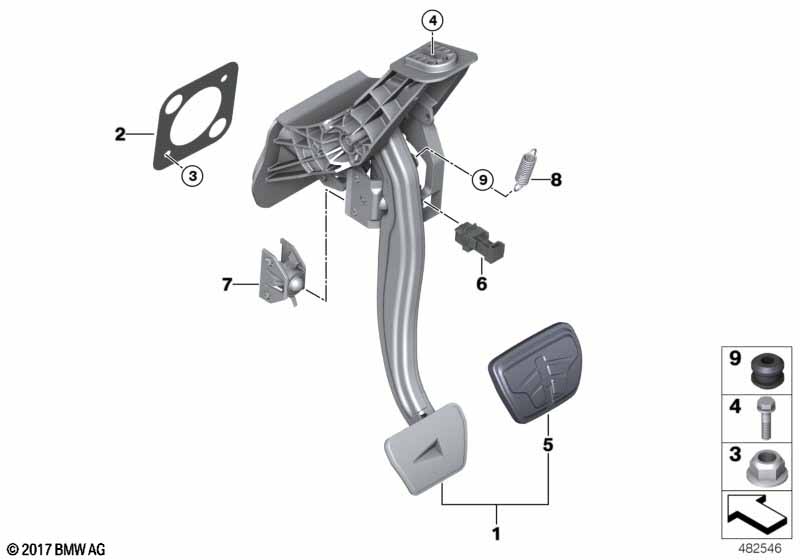

This Fusshebelwerk Automatikgetriebe technical drawing provides a detailed breakdown of the assembly for the 5 Series G31 Touring 540iX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2019.
| Nr. | Beschreibung | Erläuterungen | Anzahl | Von | Bis | Teilenummer | Preis | Ergänzungen | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Für Fahrzeuge mit M Sportpaket und M Sportbremse |
P337A=Ja S2NHA=Ja |
||||||||
| 01 | Fusshebelwerk komplett | 1 | 07/2017 | 35006866486 | Shop at ECS Tuning | |||||
| nur in Verbindung mit | ||||||||||
| -- | Pedalüberzug mit Edelstahleinlage | 1 | 07/2017 | 35216885852 | Shop at ECS Tuning | |||||
| 02 | Dichtung Bremskraftverstärker | 1 | 07/2017 | 34336864115 | Shop at ECS Tuning | |||||
| 03 | Bundmutter selbstsichernd | M8-10 ZNS3 | 2 | 07/2017 | 07119905374 | Shop at ECS Tuning | ||||
| 04 | Sechskantschraube mit Scheibe | M8X25-PC-U2-8.8 | 1 | 07/2017 | 07119908735 | Shop at ECS Tuning | ||||
| 05 | Pedalüberzug mit Edelstahleinlage | 1 | 07/2017 | 35216885852 | Shop at ECS Tuning | |||||
| 06 | Bremslichtschalter | 1 | 07/2017 | 35006876896 | Shop at ECS Tuning | |||||
| 07 | Kugelkopfaufnahme | 1 | 07/2017 | 35006891934 | Shop at ECS Tuning | |||||
| 08 | Rückzugfeder Bremspedal | 1 | 07/2017 | 35216772695 | $4.92 | Shop at ECS Tuning | ||||
| 09 | Tülle | D=7,5MM | 1 | 07/2017 | 35411113728 | $0.57 | Shop at ECS Tuning | |||
