BMW LM Rad Vielspeiche 235 - 19" for BMW 7 Series F02 760Li (2012)

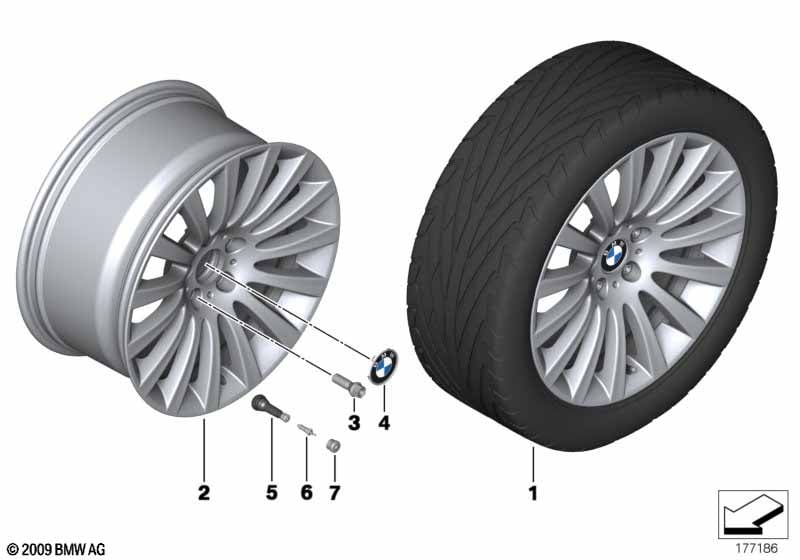

This BMW LM Rad Vielspeiche 235 - 19" technical drawing provides a detailed breakdown of the assembly for the 7 Series F02 760Li. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2012.
| Nr. | Beschreibung | Erläuterungen | Anzahl | Von | Bis | Teilenummer | Preis | Ergänzungen | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Hinweis: Nur für Fahrzeuge mit Zulassung nach EG- BE. Die ausgewählte Rad-/ Reifenkombination ist unter Umständen eintragungsrelevant. Bitte im Fahrzeug CoC prüfen, ob die Rad-/ Reifenkombination eingetragen ist. Sollte dies nicht der Fall sein, ist ggf. länderspezifisch eine nachträgliche nationale Zulassung erforderlich! Für Fahrzeuge mit BMW LM Rad Vielspeiche 235 oder BMW LM Rad Vielspeiche 235 |
S2H1A=Ja S2STA=Ja |
||||||||
| Für Fahrzeuge mit BMW LM Rad Vielspeiche 235 nur für Hinterachse |
S2STA=Ja |
|||||||||
| 02 | Scheibenrad Leichtmetall | 91/2JX19 ET:39 | 2 | 36116775405 | $643.00 | Shop at ECS Tuning | ||||
| Mischbereifung | ||||||||||
| Für Fahrzeuge mit BMW LM Rad Vielspeiche 235 oder BMW LM Rad Vielspeiche 235 |
S2H1A=Ja S2STA=Ja |
|||||||||
| 02 | Scheibenrad Leichtmetall | 81/2JX19 ET:25 | 2 | 36116775404 | $601.00 | Shop at ECS Tuning | ||||
| 03 | Radschraube Schwarz | M14X1,25 | 20 | 36136890324 | Shop at ECS Tuning | |||||
| 04 | Nabenabdeckung mit Chromrand | BMW | 4 | 36136783536 | $9.95 | Shop at ECS Tuning | ||||
| 05 | Gummiventil | L=48,5MM | 4 | 36121178869 | $3.30 | Shop at ECS Tuning | ||||
| Für Fahrzeuge mit Reifendruckanzeige |
S2VBA=Ja |
|||||||||
| 05 | Schraubventil RDC | GRÜN | 4 | 09/2010 | 36146792830 | Shop at ECS Tuning | ||||
| 06 | Ventileinsatz | 4 | 36141095389 | $1.38 | Shop at ECS Tuning | |||||
| 07 | Ventilkappe | 4 | 36121120779 | $0.60 | Shop at ECS Tuning | |||||
| Für Fahrzeuge mit Reifendruckanzeige |
S2VBA=Ja |
|||||||||
| 07 | Ventilkappe RDC | 4 | 09/2010 | 36111095436 | $0.35 | Shop at ECS Tuning | ||||
