BMW LM Rad Turbinenstyling 487 - 19" for BMW 2 Series F45 Active Tourer 218d (2015)

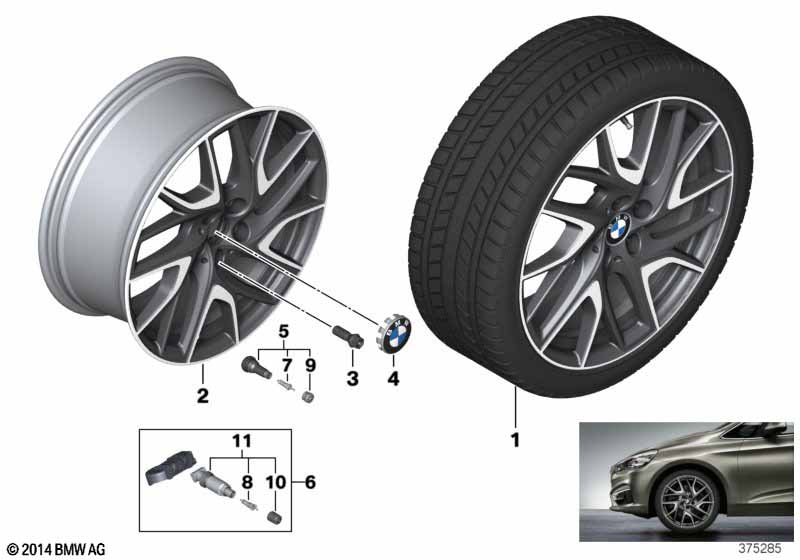

This BMW LM Rad Turbinenstyling 487 - 19" technical drawing provides a detailed breakdown of the assembly for the 2 Series F45 Active Tourer 218d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2015.
| Nr. | Beschreibung | Erläuterungen | Anzahl | Von | Bis | Teilenummer | Preis | Ergänzungen | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | ACHTUNG: Aufgrund der EU-Batterie-Verordnung ist eine Bauteilkennzeichnung für RDC-Sensoren bzw. für Bauteile mit fest verbauter Batterie gesetzlich verpflichtend! Dem Kunden muss beim Kauf dieses Produkts das anhängende Dokument ausgedruckt und ausgehändigt werden! In den EU-Mitgliedstaaten und in der Schweiz ist der Auszug aus der EU- Typgenehmigung (hinterlegt bei den Rad-/ Reifenkombinationen auf der EF-Homepage bzw. auf der KSD-DVD, in Deutschland auch im Infonet unter BMW > Aftersales > Zubehör > Gutachten) dem Kunden auszuhändigen. Dieser muss im Fahrzeug mitgeführt werden. Länderspezifisch ist ggf. eine nachträgliche Änderung der Fahrzeugpapiere notwendig. Für Fahrzeuge mit 19" LMR Turbinenstyling 487 und Länderausführung China |
SZQNA=Ja L8AAA=Nein |
||||||||
| 02 | Scheibenrad Leichtmetall Ferricgrey | 8JX19 ET:57 | 4 | 36116855096 | Entfallen | Shop at ECS Tuning | ||||
| 03 | Radschraube Schwarz | M14X1,25 | 20 | 36136890324 | Shop at ECS Tuning | |||||
| 04 | Nabenabdeckung mit Chromrand | BMW | 4 | 36136850834 | Shop at ECS Tuning | |||||
| Für Fahrzeuge mit Reifendruckanzeige |
S2VBA=Nein |
|||||||||
| 05 | Gummiventil | L=42,5MM | 4 | 36121116326 | $3.30 | Shop at ECS Tuning | ||||
| Für Fahrzeuge mit Reifendruckanzeige |
S2VBA=Ja |
|||||||||
| 06 | Radelektronikmodul RDCi m. Schraubventil | 4 | 36106881890 | Shop at ECS Tuning | ||||||
| Für Fahrzeuge mit Reifendruckanzeige |
S2VBA=Nein |
|||||||||
| 07 | Ventileinsatz | 4 | 36141095389 | $1.38 | Shop at ECS Tuning | |||||
| Für Fahrzeuge mit Reifendruckanzeige |
S2VBA=Ja |
|||||||||
| 08 | Ventileinsatz RDCi | 4 | 36146867031 | Shop at ECS Tuning | ||||||
| Für Fahrzeuge mit Reifendruckanzeige |
S2VBA=Nein |
|||||||||
| 09 | Ventilkappe | 4 | 36121120779 | $0.60 | Shop at ECS Tuning | |||||
| Für Fahrzeuge mit Reifendruckanzeige |
S2VBA=Ja |
|||||||||
| 10 | Ventilkappe RDCi | 4 | 36146867030 | Shop at ECS Tuning | ||||||
| 11 | Rep. Satz Schraubventil RDCi | 4 | 36106876673 | Shop at ECS Tuning | ||||||
Ergänzungen
- Entfallen = nicht mehr lieferbar.
