MINI LM Rad JCW STAR Spoke 962 17" for BMW MINI F66 JCW

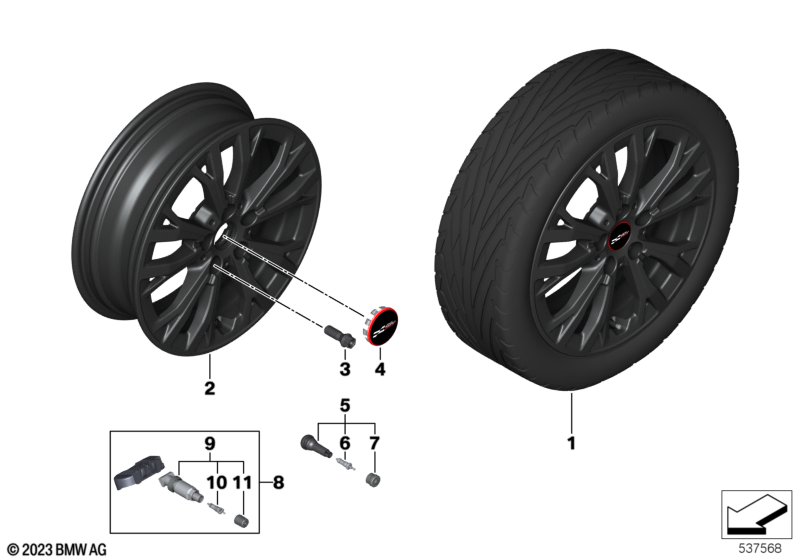

This MINI LM Rad JCW STAR Spoke 962 17" technical drawing provides a detailed breakdown of the assembly for the MINI F66 JCW. It includes part names, part numbers and all associated mounting hardware.
| Nr. | Beschreibung | Erläuterungen | Anzahl | Von | Bis | Teilenummer | Preis | Ergänzungen | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | ACHTUNG: Aufgrund der EU-Batterie-Verordnung ist eine Bauteilkennzeichnung für RDC-Sensoren bzw. für Bauteile mit fest verbauter Batterie gesetzlich verpflichtend! Dem Kunden muss beim Kauf dieses Produkts das anhängende Dokument ausgedruckt und ausgehändigt werden! Hinweis: Nur für Fahrzeuge mit Zulassung nach EG- BE. Die ausgewählte Rad-/ Reifenkombination ist unter Umständen eintragungsrelevant. Bitte im Fahrzeug CoC prüfen, ob die Rad-/ Reifenkombination eingetragen ist. Sollte dies nicht der Fall sein, ist ggf. länderspezifisch eine nachträgliche nationale Zulassung erforderlich! Für Fahrzeuge mit Winter- statt Sommerreifen ab Werk |
S931A=Ja |
||||||||
| 01 | Teil nicht separat erhältlich | 1 | 00000000000 | Shop at ECS Tuning | ||||||
| nur für Winterbereifung | ||||||||||
| 02 | Scheibenrad Leichtmetall schwarz II uni | 5,5JX17 ET:40 | 4 | 36115A3E643 | Shop at ECS Tuning | |||||
| unicolor | ||||||||||
| 03 | Radschraube Schwarz | M14X1,25 | 20 | 36136890324 | Shop at ECS Tuning | |||||
| 04 | Nabenabdeckung JOHN COOPER WORKS | JCW | 4 | 36135A4AF10 | Shop at ECS Tuning | |||||
| 04 | Nabenabdeckung | MINI | 4 | 36135A58E10 | Shop at ECS Tuning | |||||
| Für Fahrzeuge mit Reifendruckanzeige |
S2VBA=Nein |
|||||||||
| 05 | Gummiventil | L=42,5MM | 4 | 36121116326 | $3.30 | Shop at ECS Tuning | ||||
| 06 | Ventileinsatz | 4 | 36141095389 | $1.38 | Shop at ECS Tuning | |||||
| 07 | Ventilkappe | 4 | 36121120779 | $0.60 | Shop at ECS Tuning | |||||
| Für Fahrzeuge mit Reifendruckanzeige |
S2VBA=Ja |
|||||||||
| 08 | Radelektronikmodul RDC 433MHZ | 4 | 36106877937 | Shop at ECS Tuning | ||||||
| Für Fahrzeuge mit Reifendruckanzeige oder Funkfrequenz 315 MHz |
S2VBA=Ja S876A=Ja |
|||||||||
| 08 | Radelektronikmodul RDC 315MHZ | 4 | 36106877934 | Shop at ECS Tuning | ||||||
| Für Fahrzeuge mit Reifendruckanzeige |
S2VBA=Ja |
|||||||||
| 09 | Rep. Satz Schraubventil RDCi | 4 | 36106879168 | Shop at ECS Tuning | ||||||
| 10 | Ventileinsatz RDCi | 4 | 36106879165 | Shop at ECS Tuning | ||||||
| 11 | Ventilkappe RDCi | 4 | 36106879164 | Shop at ECS Tuning | ||||||
