Stirnwand Einzelteile for BMW 7 Series E32 735iL (1992)

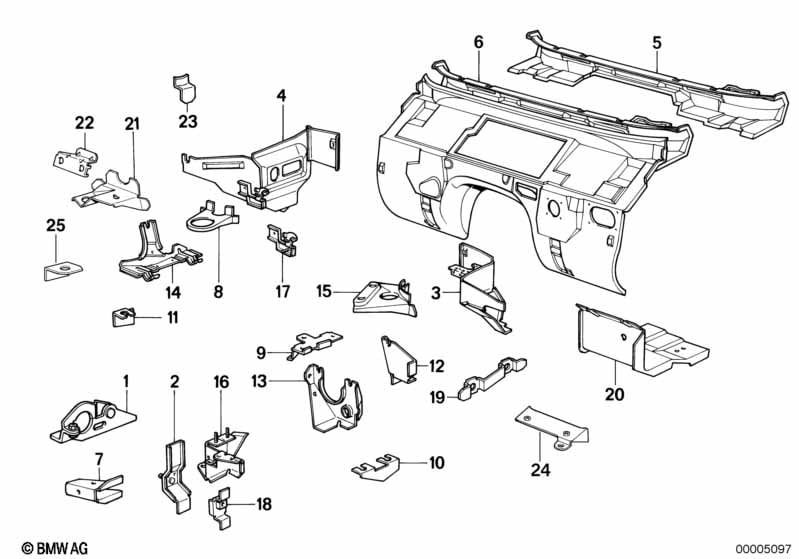

This Stirnwand Einzelteile technical drawing provides a detailed breakdown of the assembly for the 7 Series E32 735iL. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1992.
| Nr. | Beschreibung | Erläuterungen | Anzahl | Von | Bis | Teilenummer | Preis | Ergänzungen | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Halter Gelenk Frontklappe links | 1 | 41131928567 | $7.98 | Entfallen | Shop at ECS Tuning | ||||
| 01 | Halter Gelenk Frontklappe rechts | 1 | 41131928568 | $7.98 | Entfallen | Shop at ECS Tuning | ||||
| 02 | Halter Frontklappenstütze | 1 | 41111928565 | $7.20 | Shop at ECS Tuning | |||||
| 03 | Trennwand links | 1 | 41131954671 | $35.54 | Entfallen | Shop at ECS Tuning | ||||
| 04 | Trennwand rechts | 1 | 09/1992 | 41131974498 | $49.94 | Entfallen | Shop at ECS Tuning | |||
| 05 | Stirnwand | BASIS | 1 | 41131954673 | $730.98 | Entfallen | Shop at ECS Tuning | |||
| 06 | Stirnwand | BASIS | 1 | 03/1992 | 41138116325 | $730.98 | Entfallen | Shop at ECS Tuning | ||
| 07 | Halter Scheinwerfer | 2 | 41141958040 | $5.21 | Entfallen | Shop at ECS Tuning | ||||
| 08 | Halter Diagnosestecker | 1 | 41141958036 | $3.08 | Entfallen | Shop at ECS Tuning | ||||
| 09 | Halter Aufprallsensor links | 1 | 41148113965 | $11.73 | Shop at ECS Tuning | |||||
| 09 | Halter Aufprallsensor rechts | 1 | 41148113966 | $10.04 | Entfallen | Shop at ECS Tuning | ||||
| 10 | Halter ABS-Impulsgeber | 1 | 41141948891 | $3.33 | Shop at ECS Tuning | |||||
| 11 | Halter ABS-Impulsgeber | 1 | 41141948892 | $3.23 | Shop at ECS Tuning | |||||
| 12 | Halter ABS-Hydraulikeinheit H. 4-Kanal | 1 | 41111978081 | $5.75 | Shop at ECS Tuning | |||||
| 13 | Halter ABS-Hydraulikeinheit V. 4-Kanal | 1 | 41111978083 | $6.35 | Shop at ECS Tuning | |||||
| 14 | Halter Luftfilter | 1 | 41141958050 | $7.53 | Shop at ECS Tuning | |||||
| 15 | Halter Druckspeicher-Regler | 1 | 41141958037 | $5.86 | Shop at ECS Tuning | |||||
| 16 | Halter Ölbehälter | 1 | 41141958048 | $9.30 | Shop at ECS Tuning | |||||
| 17 | Halter Zündspule | 1 | 02/1988 | 41141978992 | $5.95 | Shop at ECS Tuning | ||||
| 18 | Halter Massekabel | 1 | 41111911957 | $1.80 | Shop at ECS Tuning | |||||
| 19 | Halter Bremsleitung | 1 | 41141938203 | $2.52 | Entfallen | Shop at ECS Tuning | ||||
| 20 | Verstärkung links | 1 | 41118152507 | $26.33 | Entfallen | Shop at ECS Tuning | ||||
| 20 | Verstärkung rechts | 1 | 41118152508 | $26.33 | Entfallen | Shop at ECS Tuning | ||||
| 21 | Halter Geber Leuchtweitenregulierung | 1 | 41141957180 | $4.70 | Entfallen | Shop at ECS Tuning | ||||
| 22 | Halter Verteiler Leuchtweitenregulierung | 1 | 41141957181 | $2.89 | Entfallen | Shop at ECS Tuning | ||||
| 23 | Halter Geber Leuchtweitenregulierung | 1 | 41141958389 | $0.98 | Entfallen | Shop at ECS Tuning | ||||
| 24 | Halter Beschleunigungssensor | 2 | 41148116394 | $7.47 | Shop at ECS Tuning | |||||
| 25 | Halter Schlauchleitung Niveauregulierung | 1 | 32411141734 | $38.22 | Shop at ECS Tuning |
Ergänzungen
- Entfallen = nicht mehr lieferbar.
