Tür vorn - Scharnier/Türbremse for BMW 7 Series E32 750iL (1990)

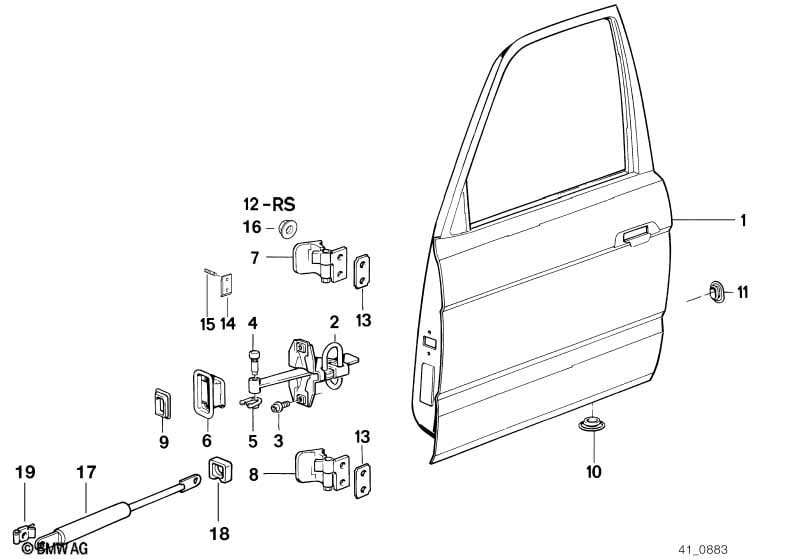

This Tür vorn - Scharnier/Türbremse technical drawing provides a detailed breakdown of the assembly for the 7 Series E32 750iL. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1990.
| Nr. | Beschreibung | Erläuterungen | Anzahl | Von | Bis | Teilenummer | Preis | Ergänzungen | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Tür vorn links | 1 | 41518111655 | $809.10 | Entfallen | Shop at ECS Tuning | ||||
| 01 | Tür vorn rechts | 1 | 41518111656 | $809.10 | Entfallen | Shop at ECS Tuning | ||||
| Für Fahrzeuge mit Isolierverglasung |
=Ja |
|||||||||
| 01 | Tür vorn links | 1 | 41518139925 | Entfallen | Shop at ECS Tuning | |||||
| 01 | Tür vorn rechts | 1 | 41518139926 | $809.10 | Entfallen | Shop at ECS Tuning | ||||
| 02 | Türbremse vorne | 2 | 51218155698 | $37.70 | Shop at ECS Tuning | |||||
| 03 | Torxschraube | ISA M6X12 | 4 | 51211973382 | $0.66 | Shop at ECS Tuning | ||||
| 04 | Bolzen | 2 | 51218141116 | $1.10 | Shop at ECS Tuning | |||||
| 05 | Sicherungsblech | 2 | 10/1991 | 51211948157 | $0.48 | Shop at ECS Tuning | ||||
| 06 | Dichtung Türbremse | 2 | 51211938275 | $12.11 | Shop at ECS Tuning | |||||
| 07 | Türscharnier vorn oben links | 1 | 41511951131 | $35.79 | Shop at ECS Tuning | |||||
| 07 | Türscharnier vorn oben rechts | 1 | 41511951132 | $35.79 | Shop at ECS Tuning | |||||
| 08 | Türscharnier vorn unten links | 1 | 41511951133 | $35.79 | Shop at ECS Tuning | |||||
| 08 | Türscharnier vorn unten rechts | 1 | 41511951134 | $35.79 | Shop at ECS Tuning | |||||
| 09 | Abdeckung | 2 | 51711938836 | $0.61 | Shop at ECS Tuning | |||||
| 10 | Verschlussstopfen | D=18,5MM | 4 | 51211838473 | $1.34 | Shop at ECS Tuning | ||||
| 10 | Verschlussstopfen | D=20MM | 4 | 51711964810 | $0.39 | Shop at ECS Tuning | ||||
| 11 | Verschlussstopfen | 14X25.5MM | 2 | 51711863869 | $0.94 | Shop at ECS Tuning | ||||
| 12 | Reparatursatz Scharnier | X | 41511922737 | $9.60 | Shop at ECS Tuning | |||||
| bestehend aus Bolzen Buchse Beilagscheibe Sicherungsscheibe Sechskantschraube mit Scheibe |
||||||||||
| 13 | Distanzscheibe | 1,0MM | X | 41517202047 | $3.02 | Shop at ECS Tuning | ||||
| 13 | Distanzscheibe | 0,5MM | X | 41518173321 | $3.02 | Shop at ECS Tuning | ||||
| 14 | Gewindeplatte | M8 | 4 | 41511925445 | $47.65 | Shop at ECS Tuning | ||||
| 15 | Stiftschraube | M8X25 | 8 | 41511925444 | $8.16 | Shop at ECS Tuning | ||||
| 16 | Sechskantmutter | M8-8-ZNS3 | 8 | 04/1994 | 07119904032 | $0.16 | Shop at ECS Tuning | |||
| 16 | Sechskantmutter | M8-8-ZNNIV SI | 8 | 07119905515 | $0.16 | Shop at ECS Tuning | ||||
Ergänzungen
- Entfallen = nicht mehr lieferbar.
