Frontklappe Abdichtungen for BMW 7 Series G70 740d (2022)

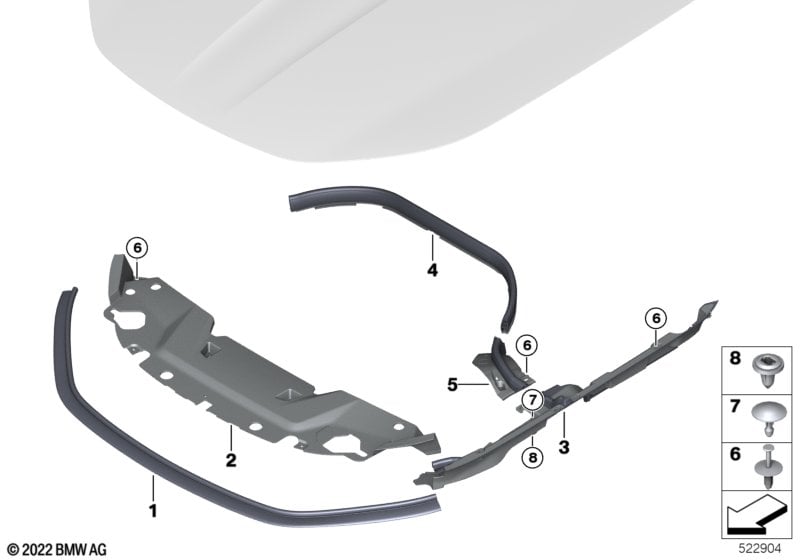

This Frontklappe Abdichtungen technical drawing provides a detailed breakdown of the assembly for the 7 Series G70 740d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2022.
| Nr. | Beschreibung | Erläuterungen | Anzahl | Von | Bis | Teilenummer | Preis | Ergänzungen | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Dichtung Frontklappe vorne | 1 | 51749464344 | Shop at ECS Tuning | ||||||
| 02 | Abdeckung Motorraum Mitte | 1 | 51749464368 | Shop at ECS Tuning | ||||||
| 03 | Abdichtung Seitenwand links | 1 | 51749464371 | Shop at ECS Tuning | ||||||
| 03 | Abdichtung Seitenwand rechts | 1 | 51749464372 | Shop at ECS Tuning | ||||||
| 04 | Dichtung Frontklappe hinten Mitte | 1 | 51749464367 | Shop at ECS Tuning | ||||||
| 05 | Dichtung Frontklappe seitlich links | 1 | 51749464369 | Shop at ECS Tuning | ||||||
| 05 | Dichtung Frontklappe seitlich rechts | 1 | 51749464370 | Shop at ECS Tuning | ||||||
| 06 | Spreizniet | 17 | 51118174185 | $0.30 | Shop at ECS Tuning | |||||
| 07 | Clip Oberteil | 2 | 51717048316 | $1.45 | Shop at ECS Tuning | |||||
| 08 | Clip Unterteil | 2 | 07147446452 | Shop at ECS Tuning |
