Dach for BMW 7 Series G70 740d (2022)

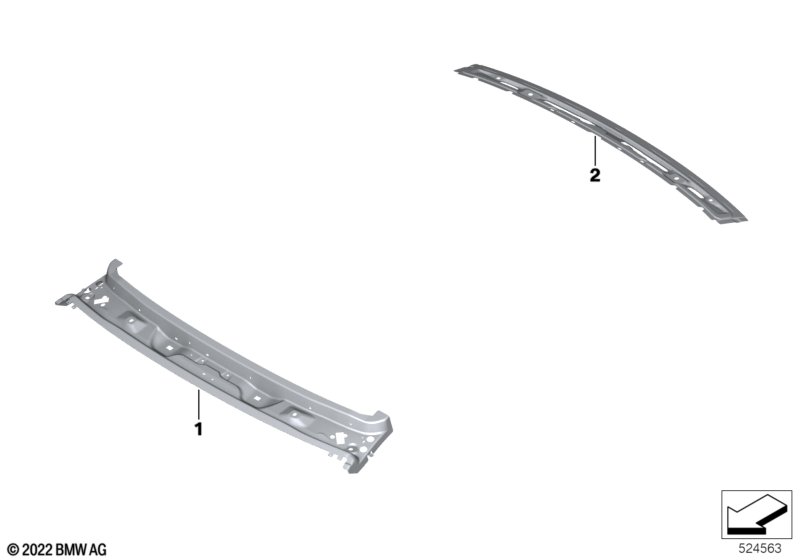

This Dach technical drawing provides a detailed breakdown of the assembly for the 7 Series G70 740d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2022.
| Nr. | Beschreibung | Erläuterungen | Anzahl | Von | Bis | Teilenummer | Preis | Ergänzungen | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Windlauf oben | 1 | 41235A37B89 | Shop at ECS Tuning | ||||||
| 02 | Heckfensterrahmen oben | 1 | 41235A37BA2 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series G70 740d Dach?
- This technical diagram illustrates the Dach within the Karosserie Blechteile group for the 7 Series G70 740d produced during 2022. It provides a detailed exploded view of the components, identifying key parts such as the Windlauf oben (Part #41235A37B89).
- Which models use the hardware listed in this Dach?
- The hardware and components featured in the Dach are specific to the 7 Series G70 740d produced during 2022. These technical specifications ensure that parts like the Windlauf oben (41235A37B89) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Dach assembly?
- Each item in the Dach corresponds to the numbered list below the illustration. For the 7 Series G70 740d, you can identify the Windlauf oben by locating its position on the schematic, which then links to the official BMW part number 41235A37B89 for the Karosserie Blechteile section.
