Frontklappe / Anbauteile for BMW MINI F66 JCW

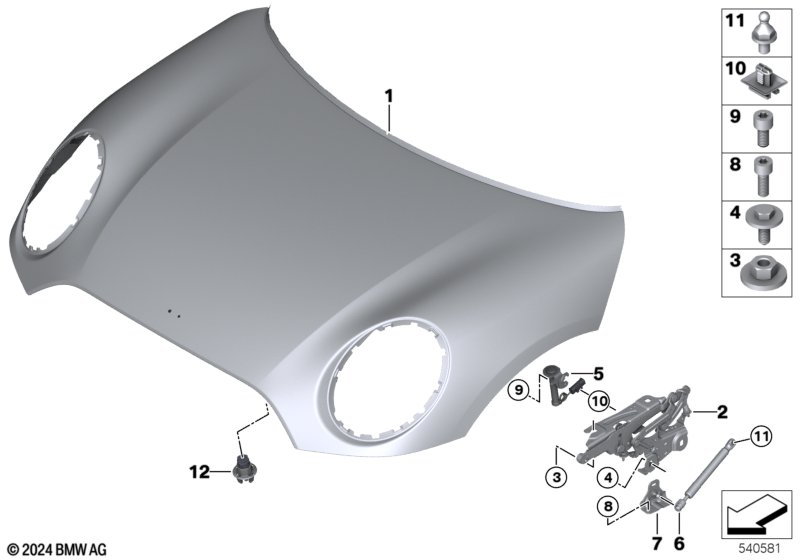

This Frontklappe / Anbauteile technical drawing provides a detailed breakdown of the assembly for the MINI F66 JCW. It includes part names, part numbers and all associated mounting hardware.
| Nr. | Beschreibung | Erläuterungen | Anzahl | Von | Bis | Teilenummer | Preis | Ergänzungen | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Frontklappe | 1 | 41619629203 | Shop at ECS Tuning | ||||||
| Für Fahrzeuge mit Aktiver Fussgängerschutz |
S8TFA=Ja |
|||||||||
| 02 | Scharnier Frontklappe rechts | AKTIV | 1 | 41009635068 | Shop at ECS Tuning | |||||
| 02 | Scharnier Frontklappe links | AKTIV | 1 | 41619635067 | Shop at ECS Tuning | |||||
| Für Fahrzeuge mit Aktiver Fussgängerschutz |
S8TFA=Nein |
|||||||||
| 02 | Scharnier Frontklappe links | PASSIV | 1 | 41619635069 | Shop at ECS Tuning | |||||
| 02 | Scharnier Frontklappe rechts | PASSIV | 1 | 41619635070 | Shop at ECS Tuning | |||||
| 03 | Sechskantmutter mit Scheibe | M8 | 4 | 07149302543 | Shop at ECS Tuning | |||||
| 04 | Sechskantschraube mit Scheibe | M8X25 | 4 | 07149231837 | Shop at ECS Tuning | |||||
| Für Fahrzeuge mit Aktiver Fussgängerschutz |
S8TFA=Ja |
|||||||||
| 05 | Aktor links | 1 | 51235A79633 | Shop at ECS Tuning | ||||||
| 05 | Aktor rechts | 1 | 51235A79634 | Shop at ECS Tuning | ||||||
| 06 | Gasfeder Frontklappe | 2 | 51237300567 | Shop at ECS Tuning | ||||||
| 07 | Aufnahme Gasfeder | 2 | 51237300575 | Shop at ECS Tuning | ||||||
| 08 | ISA-Schraube | M6X16-8.8-ZNS3 | 4 | 07129904588 | $0.96 | Shop at ECS Tuning | ||||
| Für Fahrzeuge mit Aktiver Fussgängerschutz |
S8TFA=Ja |
|||||||||
| 09 | ISA-Schraube | M6X12-8.8-ZNNIV | 2 | 07129905867 | Shop at ECS Tuning | |||||
| 10 | Halter Steckverbindung | 2 | 61139285769 | Shop at ECS Tuning | ||||||
| Für Fahrzeuge mit Aktiver Fussgängerschutz |
S8TFA=Nein |
|||||||||
| 10 | Halter Steckverbindung | 2 | 09/2023 | 61139285769 | Shop at ECS Tuning | |||||
| 11 | Kugelbolzen | 2 | 07147159561 | $2.34 | Shop at ECS Tuning | |||||
| 12 | Einsteller | 2 | 51765A62345 | Shop at ECS Tuning | ||||||
