Heckklappe for BMW MINI F66 JCW

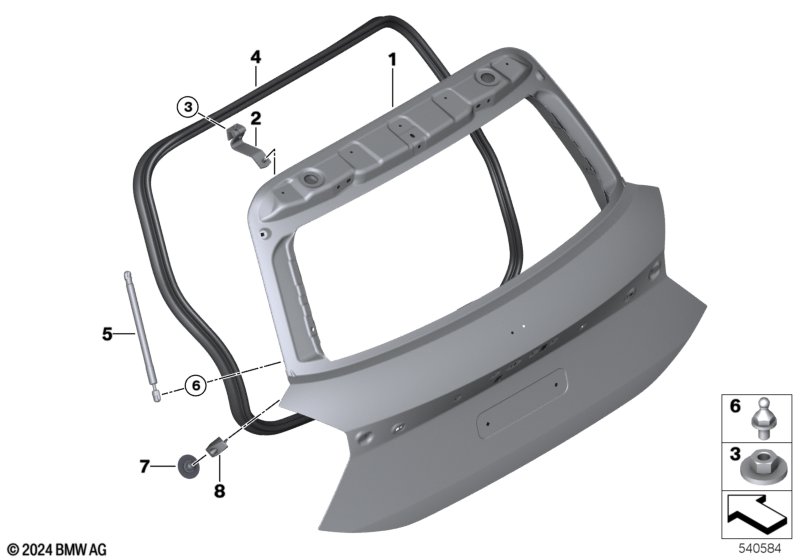

This Heckklappe technical drawing provides a detailed breakdown of the assembly for the MINI F66 JCW. It includes part names, part numbers and all associated mounting hardware.
| Nr. | Beschreibung | Erläuterungen | Anzahl | Von | Bis | Teilenummer | Preis | Ergänzungen | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Heckklappe | 1 | 41629628891 | Shop at ECS Tuning | ||||||
| 02 | Scharnier Heckklappe links | 1 | 41007320547 | Shop at ECS Tuning | ||||||
| 02 | Scharnier Heckklappe rechts | 1 | 41007320548 | Shop at ECS Tuning | ||||||
| 03 | Sechskantmutter mit Scheibe | M8 | 4 | 07149302543 | Shop at ECS Tuning | |||||
| 04 | Heckklappendichtung | 1 | 51767375849 | Shop at ECS Tuning | ||||||
| 05 | Gasfeder Heckklappe | 2 | 51245A31C05 | Shop at ECS Tuning | ||||||
| 06 | Kugelbolzen | 2 | 07147159561 | $2.34 | Shop at ECS Tuning | |||||
| 07 | Anschlagpuffer | 2 | 51247340380 | Shop at ECS Tuning | ||||||
| 08 | Gegenlager Anschlag | 2 | 51245A377F1 | Shop at ECS Tuning |
