Frontklappe Abdichtungen for BMW MINI F66 JCW

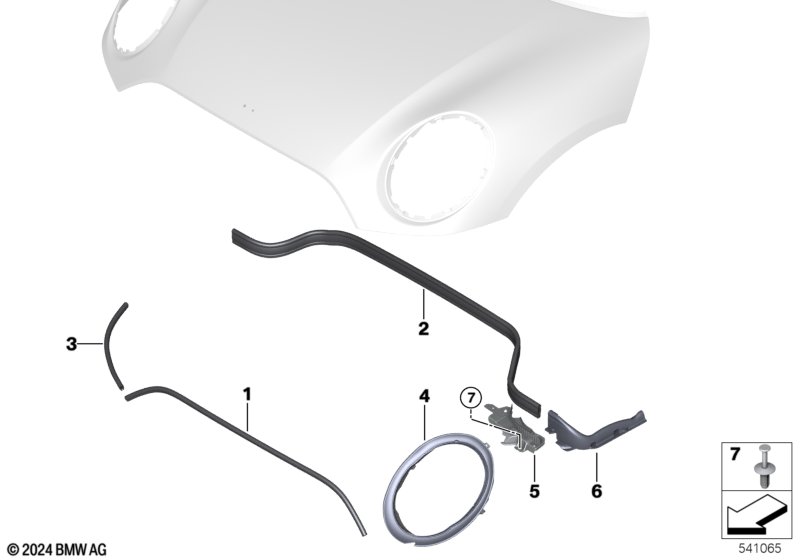

This Frontklappe Abdichtungen technical drawing provides a detailed breakdown of the assembly for the MINI F66 JCW. It includes part names, part numbers and all associated mounting hardware.
| Nr. | Beschreibung | Erläuterungen | Anzahl | Von | Bis | Teilenummer | Preis | Ergänzungen | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Abdichtung Frontklappe vorne | 1 | 51765A2F429 | Shop at ECS Tuning | ||||||
| 02 | Abdichtung Frontklappe hinten | 1 | 51767300560 | Shop at ECS Tuning | ||||||
| 03 | Abdichtung Frontklappe vorne | 2 | 51765A2F430 | Shop at ECS Tuning | ||||||
| 04 | Dichtung Scheinwerfer links | 1 | 51765A2F433 | Shop at ECS Tuning | ||||||
| 04 | Dichtung Scheinwerfer rechts | 1 | 51765A2F434 | Shop at ECS Tuning | ||||||
| 05 | Aufnahme Abdichtung Frontklappe links | 1 | 51765A2FB37 | Shop at ECS Tuning | ||||||
| 05 | Aufnahme Abdichtung Frontklappe rechts | 1 | 51765A2FB38 | Shop at ECS Tuning | ||||||
| 06 | Abdichtung Seitenwand vorne links | 1 | 51765A4E421 | Shop at ECS Tuning | ||||||
| 06 | Abdichtung Seitenwand vorne rechts | 1 | 51765A4E422 | Shop at ECS Tuning | ||||||
| 07 | Spreizniet | D = 6MM | 2 | 51111908077 | $0.30 | Shop at ECS Tuning |
