Stossstange vorne for BMW 5 Series E28 524td (1986)

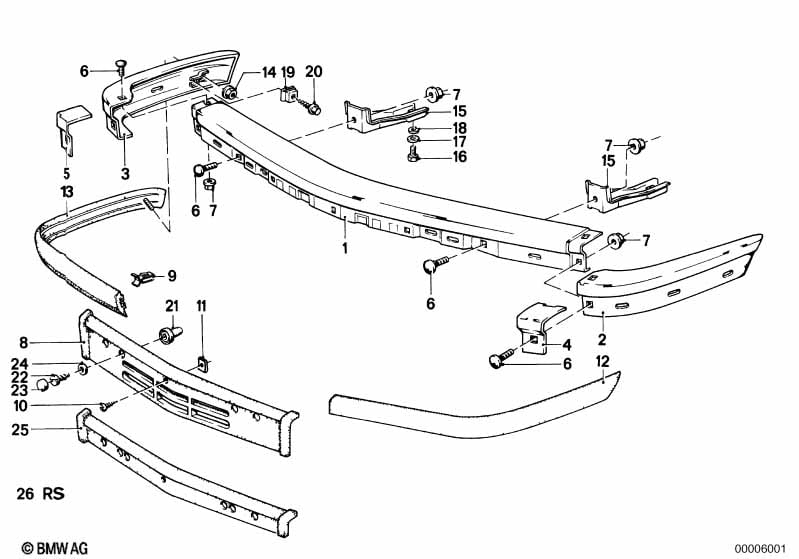

This Stossstange vorne technical drawing provides a detailed breakdown of the assembly for the 5 Series E28 524td. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1986.
| Nr. | Beschreibung | Erläuterungen | Anzahl | Von | Bis | Teilenummer | Preis | Ergänzungen | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Stossstange vorne Mitte | 1 | 51111868091 | $488.33 | Entfallen | Shop at ECS Tuning | ||||
| 01 | Stossstange grundiert vorne Mitte | 1 | 51111961861 | $221.67 | Entfallen | Shop at ECS Tuning | ||||
| 02 | Stossstange vorne links | 1 | 51111868093 | $179.63 | Entfallen | Shop at ECS Tuning | ||||
| 02 | Stossstange grundiert vorne links | 1 | 51111961867 | $133.80 | Shop at ECS Tuning | |||||
| 03 | Stossstange vorne rechts | 1 | 51111868094 | $174.85 | Shop at ECS Tuning | |||||
| 03 | Stossstange grundiert vorne rechts | 1 | 51111961868 | $133.80 | Shop at ECS Tuning | |||||
| 04 | Blende links | 1 | 51111868097 | $37.00 | Shop at ECS Tuning | |||||
| 04 | Blende grundiert links | 1 | 51111961873 | $21.61 | Shop at ECS Tuning | |||||
| 05 | Blende rechts | 1 | 51111868098 | $37.00 | Shop at ECS Tuning | |||||
| 05 | Blende grundiert rechts | 1 | 51111961874 | $21.61 | Shop at ECS Tuning | |||||
| 06 | Schraube | 6 | 51121843029 | $0.65 | Shop at ECS Tuning | |||||
| 07 | Sechskantmutter mit Scheibe | M8 | 6 | 51117070183 | $0.77 | Shop at ECS Tuning | ||||
| 08 | Stossleiste | 1 | 51111907849 | $21.38 | Entfallen | Shop at ECS Tuning | ||||
| 09 | Klammer | X | 51111867927 | $0.42 | Shop at ECS Tuning | |||||
| 10 | Linsenblechschraube | ST4,8X16-Z1 | 1 | 07119907925 | $0.25 | Shop at ECS Tuning | ||||
| 11 | Blechmutter | ST 4,8-7-ZNS3 | 1 | 07129904226 | $0.09 | Shop at ECS Tuning | ||||
| 12 | Stossleiste links | 1 | 51111868101 | $32.07 | Shop at ECS Tuning | |||||
| 13 | Stossleiste rechts | 1 | 51111868102 | $32.07 | Shop at ECS Tuning | |||||
| 14 | Sechskantmutter mit Scheibe | M6 | 4 | 07147134319 | $1.05 | Shop at ECS Tuning | ||||
| 15 | Halter | 2 | 51111868105 | $16.37 | Shop at ECS Tuning | |||||
| 16 | Sechskantschraube | M10X25 8.8 | 2 | 07119908569 | Shop at ECS Tuning | |||||
| 16 | Sechskantschraube | M10X25-8.8 ZN | 2 | 07119913834 | $0.71 | Shop at ECS Tuning | ||||
| 17 | Scheibe | 10-200 ZNS3 | 2 | 07119904209 | $1.16 | Shop at ECS Tuning | ||||
| 18 | Federscheibe | B10-ZNS3 | 2 | 07119904463 | Shop at ECS Tuning | |||||
| 19 | Blechmutter | ST6.3 ZN | 2 | 51111900386 | $2.90 | Entfallen | Shop at ECS Tuning | |||
| 20 | Sechskantblechschraube | ST6,3X19-C-Z2 | 2 | 07119916967 | $0.29 | Shop at ECS Tuning | ||||
| 21 | Einsteckmutter | 2 | 51181852299 | $0.23 | Shop at ECS Tuning | |||||
| 22 | Linsenblechschraube | ST4,8X16MM | 2 | 07143448498 | $0.18 | Shop at ECS Tuning | ||||
| 23 | Abdeckkappe | WEISS | 2 | 51181813017 | $0.21 | Shop at ECS Tuning | ||||
| 23 | Abdeckkappe | SCHWARZ | 2 | 51181823474 | $0.21 | Shop at ECS Tuning | ||||
| 24 | Scheibe | 4-200 HV-ZNS3 | 2 | 07119904207 | Shop at ECS Tuning | |||||
| Für Fahrzeuge mit Länderausführung Italien |
L814A=Ja |
|||||||||
| 25 | Unterlage | 1 | 51111868099 | $12.52 | Entfallen | Shop at ECS Tuning | ||||
| 26 | Satz Befestigungsteile | 1 | 51119056461 | $15.12 | Entfallen | Shop at ECS Tuning | ||||
Ergänzungen
- Entfallen = nicht mehr lieferbar.
