Embleme / Schriftzüge for BMW 5 Series E28 M535i (1987)

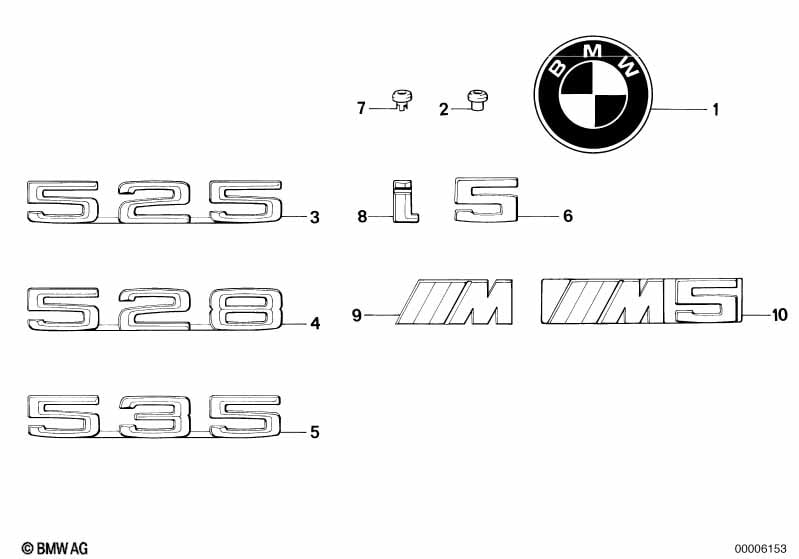

This Embleme / Schriftzüge technical drawing provides a detailed breakdown of the assembly for the 5 Series E28 M535i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1987.
| Nr. | Beschreibung | Erläuterungen | Anzahl | Von | Bis | Teilenummer | Preis | Ergänzungen | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Plakette Heckklappe | 1 | 51141872969 | $30.43 | Shop at ECS Tuning | |||||
| 01 | Plakette | Ø 82MM | 1 | 51148132375 | $32.02 | Shop at ECS Tuning | ||||
| Für die Reparatur notwendig | ||||||||||
| -- | Tülle | 2 | 51141807495 | $0.68 | Shop at ECS Tuning | |||||
| 02 | Tülle | X | 51141902279 | $0.62 | Shop at ECS Tuning | |||||
| 05 | Emblem geklebt | "535" | 1 | 51141946164 | $22.33 | Entfallen | Shop at ECS Tuning | |||
| 08 | Emblem geklebt hinten | "I" | 1 | 51141916137 | $12.63 | Shop at ECS Tuning | ||||
| 09 | Buchstabe "M" vorne | 1 | 51141884015 | $37.00 | Shop at ECS Tuning | |||||
| 09 | Buchstabe "M" hinten | 1 | 51141917739 | $37.00 | Shop at ECS Tuning | |||||
Ergänzungen
- Entfallen = nicht mehr lieferbar.
