Ablegefach Anbauteile for BMW 6 Series E24 630CSi

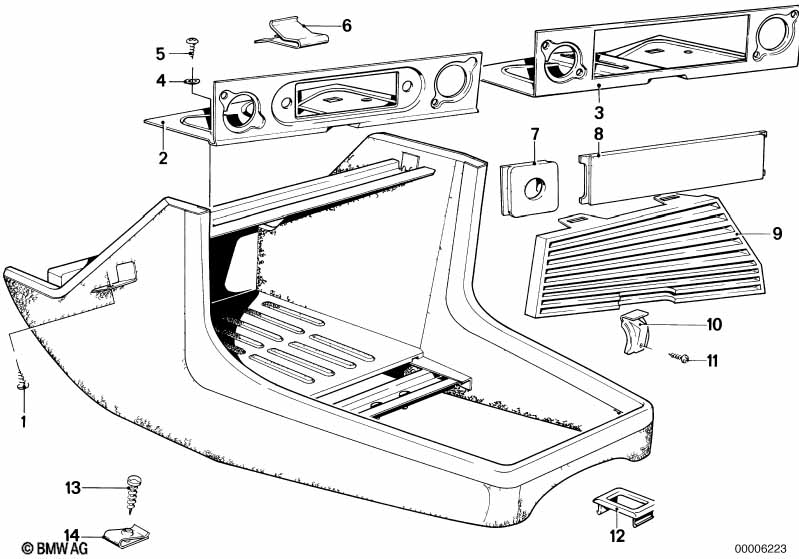

This Ablegefach Anbauteile technical drawing provides a detailed breakdown of the assembly for the 6 Series E24 630CSi. It includes part names, part numbers and all associated mounting hardware.
| Nr. | Beschreibung | Erläuterungen | Anzahl | Von | Bis | Teilenummer | Preis | Ergänzungen | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Linsenblechschraube | ST3,9X13 | 2 | 09/1982 | 07119907720 | $2.09 | Shop at ECS Tuning | |||
| 01 | Linsenblechschraube | ST3,9X13 | 2 | 09/1982 | 07147202502 | $0.26 | Shop at ECS Tuning | |||
| 02 | Verbindungsstück | 1 | 09/1978 | 51161839415 | $22.20 | Entfallen | Shop at ECS Tuning | |||
| 04 | Federscheibe | B5 | 4 | 09/1982 | 07119932098 | $0.38 | Shop at ECS Tuning | |||
| 05 | Linsenschraube | M5X10 | 4 | 09/1982 | 07119907639 | $0.40 | Shop at ECS Tuning | |||
| 06 | Klammer | 2 | 09/1982 | 51211803685 | $1.93 | Shop at ECS Tuning | ||||
| 07 | Blende | 1 | 09/1979 | 51161839419 | Entfallen | Shop at ECS Tuning | ||||
| 08 | Abdeckblende | 1 | 09/1978 | 51161839420 | Entfallen | Shop at ECS Tuning | ||||
| 09 | Blende | 1 | 09/1982 | 51161839636 | $56.22 | Entfallen | Shop at ECS Tuning | |||
| 10 | Halter | 1 | 09/1982 | 51161839637 | $17.30 | Entfallen | Shop at ECS Tuning | |||
| 11 | Linsenblechschraube | ST2,9X6,5 | 2 | 09/1982 | 07119907701 | $1.91 | Shop at ECS Tuning | |||
| 12 | Blende | 2 | 09/1982 | 51161839762 | Entfallen | Shop at ECS Tuning | ||||
| 13 | Linsenblechschraube | ST4,2X13 | 2 | 09/1982 | 07119906748 | $0.18 | Shop at ECS Tuning | |||
| 14 | Blechmutter | ST4,2-1-ZNS3 | 1 | 07129904220 | $0.09 | Shop at ECS Tuning |
Ergänzungen
- Entfallen = nicht mehr lieferbar.
