Verschlussdeckel/Verschlussstopfen for BMW 7 Series E32 750iL (1990)

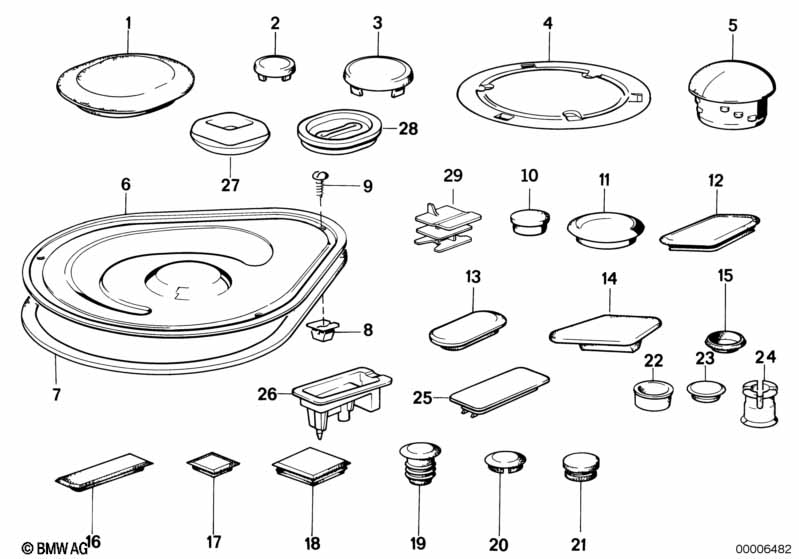

This Verschlussdeckel/Verschlussstopfen technical drawing provides a detailed breakdown of the assembly for the 7 Series E32 750iL. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1990.
| Nr. | Beschreibung | Erläuterungen | Anzahl | Von | Bis | Teilenummer | Preis | Ergänzungen | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Verschlussstopfen | 30X36MM | 1 | 51711872829 | $0.89 | Shop at ECS Tuning | ||||
| 02 | Lackstopfen mit Schmelzklebering | D=20MM | X | 41007140848 | $0.43 | Shop at ECS Tuning | ||||
| 03 | Lackstopfen mit Schmelzklebering | D=35MM | 7 | 04/1994 | 41007140847 | $0.68 | Entfallen | Shop at ECS Tuning | ||
| 03 | Lackstopfen | D=35MM | 7 | 51915A0C2C4 | Shop at ECS Tuning | |||||
| 03 | Verschlusskappe | SCHWARZ | 1 | 51411869871 | $5.44 | Shop at ECS Tuning | ||||
| 04 | Verschlussdeckel | D=144MM | 3 | 41128200462 | $5.07 | Entfallen | Shop at ECS Tuning | |||
| 04 | Verschlussdeckel | D=105MM | 3 | 51711946184 | $1.77 | Entfallen | Shop at ECS Tuning | |||
| 05 | Verschlussstopfen | D=20MM | 6 | 51711801066 | $0.23 | Shop at ECS Tuning | ||||
| 06 | Verschlussdeckel | 1 | 51711908338 | $6.05 | Shop at ECS Tuning | |||||
| 07 | Dichtung | 1 | 51711908339 | $2.73 | Shop at ECS Tuning | |||||
| 08 | Spreizmutter | ST 3.9 | 5 | 51711874203 | $0.23 | Shop at ECS Tuning | ||||
| 09 | Linsenblechschraube | ST4,2X9,5-Z1 | 1 | 07119907812 | $0.38 | Shop at ECS Tuning | ||||
| 10 | Verschlussstopfen | D=14MM | 2 | 33111236826 | $0.23 | Shop at ECS Tuning | ||||
| 10 | Abdeckkappe | D=16,5MM | 2 | 51711839321 | $0.26 | Shop at ECS Tuning | ||||
| 10 | Stopfen Motorträger | D=22,6MM | 2 | 51711881468 | $0.73 | Shop at ECS Tuning | ||||
| 10 | Verschlussstopfen | D=22,8MM | 6 | 51711963579 | $0.79 | Shop at ECS Tuning | ||||
| 11 | Verschlussstopfen | D=18,5MM | 8 | 51211838473 | $1.34 | Shop at ECS Tuning | ||||
| 12 | Verschlussstopfen | 14X28 | 2 | 51211938581 | $1.69 | Entfallen | Shop at ECS Tuning | |||
| 12 | Verschlussstopfen | 24X12 | 2 | 51211975404 | $1.26 | Shop at ECS Tuning | ||||
| 13 | Verschlussstopfen | 20X50 | 2 | 51711852763 | $1.19 | Shop at ECS Tuning | ||||
| 13 | Verschlussstopfen | 14X25.5MM | 2 | 51711863869 | $0.94 | Shop at ECS Tuning | ||||
| 14 | Verschlussstopfen | 1 | 51711950866 | $0.34 | Shop at ECS Tuning | |||||
| 15 | Verschlussstopfen | D=35MM | 2 | 07147140849 | $0.73 | Shop at ECS Tuning | ||||
| 15 | Verschlussstopfen | D=20MM | X | 51711964810 | $0.39 | Shop at ECS Tuning | ||||
| 15 | Verschlussstopfen | D=12MM | 2 | 51718110199 | $0.18 | Shop at ECS Tuning | ||||
| 16 | Verschlussstopfen | 2 | 51711964815 | $0.69 | Entfallen | Shop at ECS Tuning | ||||
| 17 | Verschlussstopfen | 22X22 | 9 | 51711964816 | $0.55 | Shop at ECS Tuning | ||||
| 18 | Verschlussstopfen | D=10MM | 4 | 51711906001 | $0.26 | Shop at ECS Tuning | ||||
| 18 | Verschlussstopfen | 35X35 | 4 | 51711964817 | $1.03 | Shop at ECS Tuning | ||||
| 19 | Verschlussstopfen | D=15MM | 2 | 51711964818 | $0.40 | Shop at ECS Tuning | ||||
| 20 | Verschlussstopfen | D=8MM | 1 | 51211839913 | $0.39 | Shop at ECS Tuning | ||||
| 20 | Verschlussstopfen | D=6.9MM | 2 | 51711911299 | $0.23 | Entfallen | Shop at ECS Tuning | |||
| 20 | Verschlussstopfen | D=15MM | 2 | 51711964819 | $0.56 | Shop at ECS Tuning | ||||
| 20 | Verschlussstopfen | D=15MM | 1 | 51718170298 | $0.23 | Shop at ECS Tuning | ||||
| 21 | Verschlussstopfen | D=6MM | 2 | 51711904603 | $0.32 | Shop at ECS Tuning | ||||
| 21 | Abdichtfolie | PUR, D=30MM | 8 | 51711922189 | $0.82 | Shop at ECS Tuning | ||||
| 21 | Verschlussstopfen | D=18.5MM | X | 61131379865 | $2.65 | Entfallen | Shop at ECS Tuning | |||
| 21 | Verschlussstopfen | D=20MM | X | 61131391714 | $0.55 | Shop at ECS Tuning | ||||
| 23 | Verschlussstopfen | D=14MM | 2 | 33111236826 | $0.23 | Shop at ECS Tuning | ||||
| 23 | Verschlussstopfen | D=22MM | 1 | 51711855009 | $0.50 | Shop at ECS Tuning | ||||
| 23 | Verschlussstopfen | D=15MM | 2 | 51711964309 | $0.23 | Shop at ECS Tuning | ||||
| 24 | Verschlussstopfen | D=15MM | 4 | 51711952009 | $0.23 | Shop at ECS Tuning | ||||
| 24 | Verschlussstopfen | D=13,5MM | 1 | 51711974209 | $1.03 | Shop at ECS Tuning | ||||
| 25 | Abdeckkappe | KARMESINROT | 1 | 09/1988 | 51718117128 | $1.03 | Entfallen | Shop at ECS Tuning | ||
| 25 | Abdeckkappe | SCHWARZ | 1 | 09/1990 | 51718148713 | $1.03 | Shop at ECS Tuning | |||
| 25 | Abdeckkappe | SILBERGRAU | 1 | 09/1990 | 51718148714 | $1.03 | Shop at ECS Tuning | |||
| 25 | Abdeckkappe | ULTRAMARIN | 1 | 09/1990 | 51718148715 | $1.12 | Entfallen | Shop at ECS Tuning | ||
| 25 | Abdeckkappe | PERGAMENT | 1 | 09/1990 | 51718148716 | $1.03 | Shop at ECS Tuning | |||
| 26 | Gehäuse | 1 | 09/1987 | 51711969746 | $5.13 | Entfallen | Shop at ECS Tuning | |||
| 27 | Verschlussstopfen | D=10MM | 1 | 61131384482 | $0.48 | Shop at ECS Tuning | ||||
| 28 | Tülle | D=50X44MM | X | 51711954772 | $1.53 | Shop at ECS Tuning | ||||
| 29 | Verschlussstopfen | 14X20 | 2 | 51718101858 | $1.23 | Entfallen | Shop at ECS Tuning |
Ergänzungen
- Entfallen = nicht mehr lieferbar.
