Türfenstermechanismus vorn for BMW 3 Series E36 328i (1994)

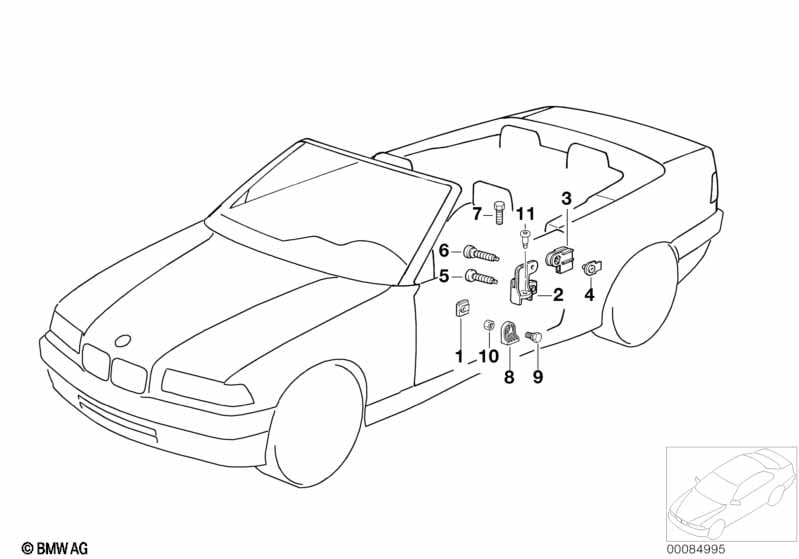

This Türfenstermechanismus vorn technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 328i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1994.
| Nr. | Beschreibung | Erläuterungen | Anzahl | Von | Bis | Teilenummer | Preis | Ergänzungen | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Halter links | 1 | 51328151357 | $4.42 | Shop at ECS Tuning | |||||
| 01 | Halter rechts | 1 | 51328151358 | $4.42 | Entfallen | Shop at ECS Tuning | ||||
| 02 | Halter links | 1 | 51321977813 | $5.90 | Entfallen | Shop at ECS Tuning | ||||
| 02 | Halter rechts | 1 | 51321977814 | $5.90 | Shop at ECS Tuning | |||||
| 03 | Unterlage links | 2 | 51328151227 | $1.50 | Shop at ECS Tuning | |||||
| 03 | Unterlage rechts | 2 | 51328151228 | $1.50 | Shop at ECS Tuning | |||||
| 04 | Halteblech | 4 | 51328151226 | $3.23 | Shop at ECS Tuning | |||||
| 05 | Sechskantschraube | M6 | 4 | 51328153040 | $0.66 | Shop at ECS Tuning | ||||
| 06 | Sechskantschraube mit Scheibe | M6X12-U2-8.8 | 4 | 07119904459 | $0.65 | Shop at ECS Tuning | ||||
| 07 | Sechskantschraube | M6X10-8.8-ZNS3 | 4 | 07119904633 | $0.20 | Shop at ECS Tuning | ||||
| 08 | Anschlag | 4 | 51328151356 | $0.77 | Shop at ECS Tuning | |||||
| 09 | Sechskantschraube | M6X10 M. ANSATZ | 2 | 41518195403 | $0.25 | Shop at ECS Tuning | ||||
| 10 | Sechskantmutter | M6-04-2-ZN | 4 | 07119921054 | $0.11 | Shop at ECS Tuning | ||||
| 11 | Zylinderschraube | M8 | 2 | 07147233975 | Shop at ECS Tuning |
Ergänzungen
- Entfallen = nicht mehr lieferbar.
