Aussenspiegel for BMW 3 Series E46 328i (2000)

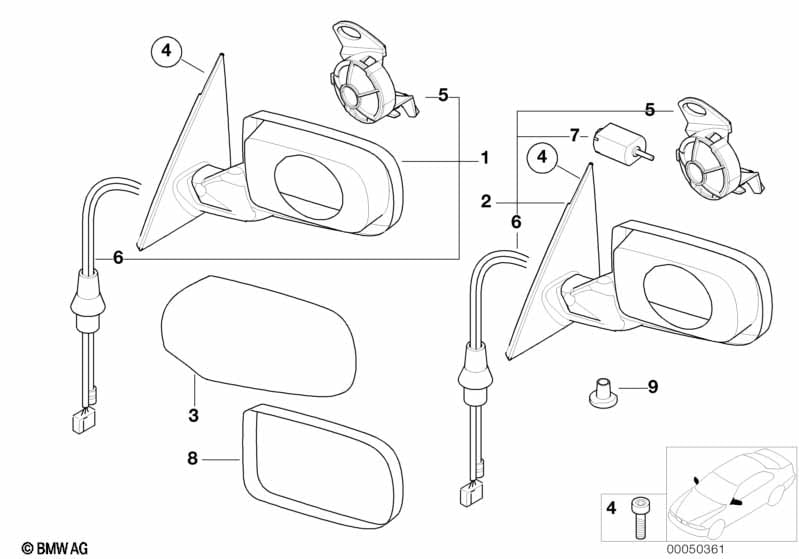

This Aussenspiegel technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 328i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2000.
| Nr. | Beschreibung | Erläuterungen | Anzahl | Von | Bis | Teilenummer | Preis | Ergänzungen | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Aussenspiegel ohne Spiegelglas auch passend für Memory bis 09/99 Für Fahrzeuge mit Sitzverstellung elektrisch mit Memory |
S459A=Nein |
||||||||
| Für Fahrzeuge mit Aussenspiegel Anklappfunktion |
S313A=Nein |
|||||||||
| 01 | Aussenspiegel beheizt links | 1 | 51168245125 | $204.78 | Shop at ECS Tuning | |||||
| 01 | Aussenspiegel beheizt rechts | 1 | 51168245128 | $204.78 | Shop at ECS Tuning | |||||
| Für Fahrzeuge mit Aussenspiegel Anklappfunktion und Hochglanz Shadow-Line |
S313A=Nein S760A=Ja |
|||||||||
| 01 | Aussenspiegel beheizt links | GLANZSCHWARZ | 1 | 51167890825 | $233.13 | Shop at ECS Tuning | ||||
| 01 | Aussenspiegel beheizt rechts | GLANZSCHWARZ | 1 | 51167890828 | $233.13 | Shop at ECS Tuning | ||||
| Für Fahrzeuge mit Aussenspiegel Anklappfunktion und Hochglanz Shadow-Line |
S313A=Ja S760A=Ja |
|||||||||
| 02 | Aussenspiegel beheizt links | GLANZSCHWARZ | 1 | 51167890829 | $373.17 | Shop at ECS Tuning | ||||
| 02 | Aussenspiegel beheizt rechts | GLANZSCHWARZ | 1 | 51167890832 | $373.17 | Shop at ECS Tuning | ||||
| Für Fahrzeuge mit Aussenspiegel Anklappfunktion und Komfortsitz mit Memory und Sitzverstellung elektrisch mit Memory |
S313A=Ja S456A=Nein S459A=Nein |
|||||||||
| 02 | Aussenspiegel beheizt links | 1 | 51168245129 | $344.82 | Shop at ECS Tuning | |||||
| 02 | Aussenspiegel beheizt rechts | 1 | 51168245132 | $344.82 | Shop at ECS Tuning | |||||
| 03 | Abdeckung grundiert links | 1 | 51168238375 | $48.89 | Shop at ECS Tuning | |||||
| 03 | Abdeckung grundiert rechts | 1 | 51168238376 | $48.89 | Shop at ECS Tuning | |||||
| 03 | Abdeckkappe lackiert links | CODE - UNI/MET. | 1 | 51169071286 | $171.41 | Entfallen | Shop at ECS Tuning | |||
| Bei Bestellung Farbcode angeben | ||||||||||
| 03 | Abdeckkappe lackiert rechts | CODE - UNI/MET. | 1 | 51169071287 | $171.41 | Entfallen | Shop at ECS Tuning | |||
| Bei Bestellung Farbcode angeben | ||||||||||
| 04 | Zylinderschraube | 3 | 07147196375 | $0.64 | Shop at ECS Tuning | |||||
| 05 | Stellantrieb links | 1 | 67138362421 | $84.48 | Shop at ECS Tuning | |||||
| 05 | Stellantrieb rechts | 1 | 67138362422 | $84.48 | Shop at ECS Tuning | |||||
| 06 | Kabelsatz links | 1 | 67138379003 | $19.43 | Shop at ECS Tuning | |||||
| nur in Verbindung mit | ||||||||||
| 06 | Kabelsatz rechts | 1 | 67138379004 | $19.43 | Shop at ECS Tuning | |||||
| nur in Verbindung mit | ||||||||||
| -- | Stossverbinder | 0.2-0.5 MM² | 18 | 61138353746 | $0.77 | Shop at ECS Tuning | ||||
| 08 | Rep.Satz Rahmen Aussenspiegel links | 1 | 51168269025 | $35.93 | Shop at ECS Tuning | |||||
| 08 | Rep.Satz Rahmen Aussenspiegel rechts | 1 | 51168269026 | $35.93 | Shop at ECS Tuning | |||||
| 09 | Abdeckkappe unten links | 1 | 51167001035 | $7.72 | Shop at ECS Tuning | |||||
| 09 | Abdeckkappe unten rechts | 1 | 51167001036 | $7.72 | Shop at ECS Tuning | |||||
Ergänzungen
- Entfallen = nicht mehr lieferbar.
