Ablageschale Pannenset for BMW 3 Series E46 M3 (2001)

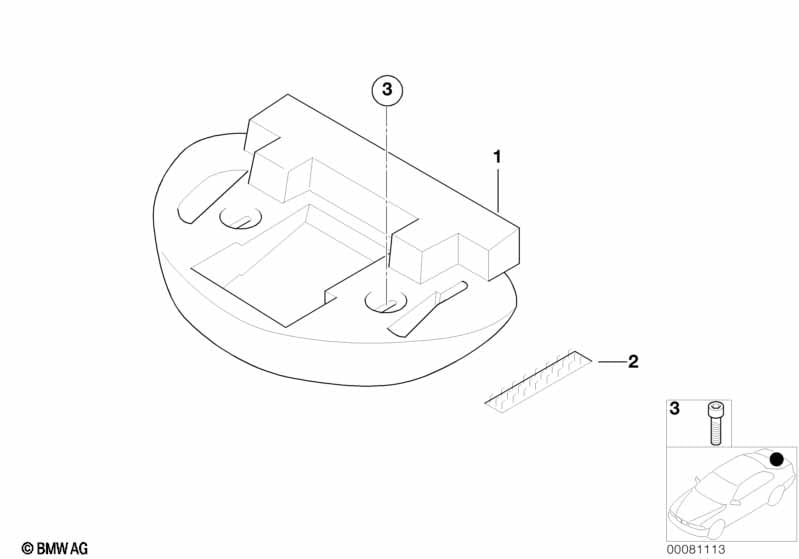

This Ablageschale Pannenset technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 M3. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2001.
| Nr. | Beschreibung | Erläuterungen | Anzahl | Von | Bis | Teilenummer | Preis | Ergänzungen | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Ablageschale Pannenset | 1 | 09/2004 | 51717906447 | $68.88 | Shop at ECS Tuning | ||||
| nur in Verbindung mit | ||||||||||
| -- | M Mobility System | 1 | 09/2004 | 71102282822 | $111.36 | Entfallen | Shop at ECS Tuning | |||
| -- | Reifendichtmittelflasche | 620ML | 1 | 09/2004 | 71102282826 | $37.61 | Shop at ECS Tuning | |||
| 02 | Klettband | 1 | 51717893999 | $14.07 | Shop at ECS Tuning | |||||
| 03 | Zylinderschraube | ISA M10X41 | 1 | 72118171254 | $0.83 | Entfallen | Shop at ECS Tuning | |||
Ergänzungen
- Entfallen = nicht mehr lieferbar.
