Verkleidung hinten for BMW 1 Series E87 120d

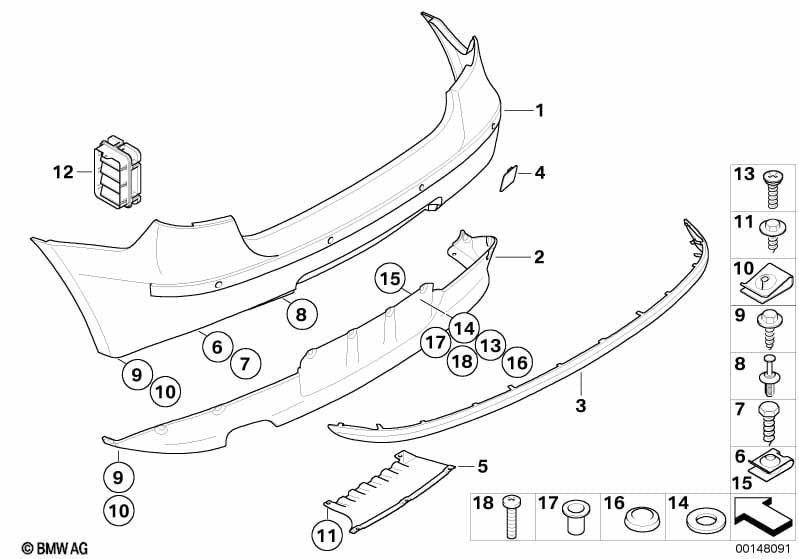

This Verkleidung hinten technical drawing provides a detailed breakdown of the assembly for the 1 Series E87 120d. It includes part names, part numbers and all associated mounting hardware.
| Nr. | Beschreibung | Erläuterungen | Anzahl | Von | Bis | Teilenummer | Preis | Ergänzungen | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Verkleidung Stossfänger lackiert hinten | CODE - UNI/MET. | 1 | 51120032630 | Entfallen | Shop at ECS Tuning | ||||
| nur in Verbindung mit | ||||||||||
| 01 | Verkleidung Stossf. hi. oben grundiert | 1 | 51127136089 | $310.15 | Shop at ECS Tuning | |||||
| nur in Verbindung mit | ||||||||||
| -- | Satz Anbauteile Stossfänger hinten | VALUE PARTS | 1 | 51122410016 | Shop at ECS Tuning | |||||
| 02 | Verkleidung Stossfänger unten lackiert | CODE - UNI/MET. | 1 | 51120032631 | Entfallen, +Pfand | Shop at ECS Tuning | ||||
| 02 | Verkleidung Stossf. hi. unten grundiert | 1 | 51127136090 | $67.02 | Shop at ECS Tuning | |||||
| 03 | Stossleiste lackiert | CODE - UNI/MET. | 1 | 51120032632 | Entfallen | Shop at ECS Tuning | ||||
| 03 | Stossleiste Mitte | SCHWARZ | 1 | 51127073897 | Shop at ECS Tuning | |||||
| 03 | Stossleiste Stossfänger hinten grundiert | 1 | 51127136091 | $25.73 | +Pfand | Shop at ECS Tuning | ||||
| Achtung! Produktinformation beachten. "Nur-in-Verbindung-mit"-Teile verwenden. |
||||||||||
| 03 | Stossleiste Stossfänger hinten grundiert | PDC | 1 | 51127136092 | $46.43 | Shop at ECS Tuning | ||||
| nur in Verbindung mit | ||||||||||
| -- | Entkopplungsring PDC Wandler | 4 | 66206923000 | $1.05 | Shop at ECS Tuning | |||||
| -- | Satz Blindblenden | GEN 4 | 1 | 51125A3F536 | Shop at ECS Tuning | |||||
| -- | Aufkleber | NO PDC | 1 | 01295A3BFA7 | Shop at ECS Tuning | |||||
| Für Fahrzeuge mit Park Distance Control hinten (PDC) oder Park Distance Control (PDC) |
S507A=Ja S508A=Ja |
|||||||||
| 03 | Stossleiste lackiert | CODE - UNI/MET. | 1 | 51120032633 | Entfallen | Shop at ECS Tuning | ||||
| 03 | Stossleiste Stossfänger hinten grundiert | PDC | 1 | 51127136092 | $46.43 | Shop at ECS Tuning | ||||
| 04 | Klappe Abschleppöse lackiert | CODE - UNI/MET. | 1 | 51120032634 | Entfallen | Shop at ECS Tuning | ||||
| 04 | Klappe Abschleppöse grundiert | 1 | 51127136093 | Shop at ECS Tuning | ||||||
| 05 | Abdeckung unten | 1 | 51127117631 | Shop at ECS Tuning | ||||||
| 05 | Abdeckung AHK unten | 1 | 51127118162 | Shop at ECS Tuning | ||||||
| 06 | Sechskantblechschraube | ST4,8X16-ZNS3 | 4 | 07119901299 | $0.25 | Shop at ECS Tuning | ||||
| 07 | Blechmutter | ST4,8-13-ZNS3 | 4 | 07129904223 | $0.11 | Shop at ECS Tuning | ||||
| 08 | Spreizniet | D = 6MM | 2 | 51111908077 | $0.30 | Shop at ECS Tuning | ||||
| 09 | Sechskantblechschraube mit Scheibe | ST4,8X16MM | 8 | 07147129160 | $0.36 | Shop at ECS Tuning | ||||
| 10 | C-Clip Mutter selbstsichernd | ST 4.8 -ZNS3 | 8 | 07146951655 | $0.20 | Shop at ECS Tuning | ||||
| 11 | Sechskantblechschraube mit Scheibe | ST4,8X16MM | 3 | 07147129160 | $0.36 | Shop at ECS Tuning | ||||
| 11 | Sechskantschraube mit Scheibe | M6X12 | 2 | 07147147513 | $0.38 | Shop at ECS Tuning | ||||
| 12 | Heckentlüftung | 2 | 64226937994 | $15.33 | Shop at ECS Tuning | |||||
| Kennzeichenbefestigung | ||||||||||
| 13 | Kreuzschlitzschraube für Kunststoff | TS 5X8 | 4 | 07146959895 | $0.29 | Shop at ECS Tuning | ||||
| 14 | Scheibe | 4-200 HV-ZNS3 | 4 | 07/2007 | 07119904207 | Shop at ECS Tuning | ||||
| Für Fahrzeuge mit Länderausführung Japan Kennzeichenbefestigung |
L807A=Ja |
|||||||||
| 15 | Clipmutter | M6 | 2 | 41357060601 | $0.70 | Shop at ECS Tuning | ||||
| Kennzeichenbefestigung | ||||||||||
| 16 | Abdeckkappe | WEISS | X | 51181813017 | $0.21 | Shop at ECS Tuning | ||||
| 16 | Abdeckkappe | EUROPABLAU | X | 51187060798 | $0.21 | Shop at ECS Tuning | ||||
| 16 | Abdeckkappe | GOLDGELB | X | 51188106919 | $0.21 | Shop at ECS Tuning | ||||
| Kennzeichenbefestigung Reparaturlösung |
||||||||||
| 17 | Blindnietmutter Flachkopf | M5 | 4 | 51138400227 | $2.77 | Shop at ECS Tuning | ||||
| 18 | Schraube | M5X20 | 4 | 46612315376 | $0.60 | Shop at ECS Tuning | ||||
Ergänzungen
- Entfallen = nicht mehr lieferbar.
- +Pfand = plus Altteilepfand (Möglicherweise muss das Altteil im Austausch abgegeben werden)
