Innenspiegel manuell abblendbar for BMW MINI R56 Cooper (2007)
This Innenspiegel manuell abblendbar technical drawing provides a detailed breakdown of the assembly for the MINI R56 Cooper. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2007.
| Nr. | Beschreibung | Erläuterungen | Anzahl | Von | Bis | Teilenummer | Preis | Ergänzungen | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | EC = Electrochrom Funk = Funkfernbedienung LED = Leuchtdiode für Diebstahlwarnanlage GTO = integrierte Universalfernbedienung/Garagentoröffner FLA = Fernlichtassistent Kompass = digitale Kompassanzeige ETC = Electronic Toll Collection TLC = Spurverlassenswarnung Für Fahrzeuge mit Innenspiegel automatisch abblendend und Funkfrequenz 434 MHZ |
S431A=Nein S874A=Nein |
||||||||
| Für Fahrzeuge mit Länderausführung Korea und Integrierte Universal-Fernbedienung |
L802A=Ja S319A=Nein |
|||||||||
| 01 | Innenspiegel manuell / Funk | 315 MHZ LP | 1 | 08/2010 | 51169218053 | Shop at ECS Tuning | ||||
| Für Fahrzeuge mit Länderausführung Japan und Integrierte Universal-Fernbedienung und Funkfrequenz 315 MHz |
L807A=Ja S319A=Nein S876A=Ja |
|||||||||
| 01 | Innenspiegel manuell / Funk | 315 MHZ | 1 | 51169302871 | Shop at ECS Tuning | |||||
| Für Fahrzeuge mit Länderausführung Japan und Integrierte Universal-Fernbedienung und Funkfrequenz 315 MHz |
L807A=Ja S319A=Nein S876A=Nein |
|||||||||
| 01 | Innenspiegel manuell / Funk | 315 MHZ | 1 | 51169302871 | Shop at ECS Tuning | |||||
| Für Fahrzeuge mit Länderausführung Japan und Integrierte Universal-Fernbedienung und Funkfrequenz 315 MHz |
L807A=Nein S319A=Nein S876A=Ja |
|||||||||
| 01 | Innenspiegel manuell / Funk | 315 MHZ | 1 | 51169302871 | Shop at ECS Tuning | |||||
| Für Fahrzeuge mit Länderausführung Korea und Länderausführung Japan und Integrierte Universal-Fernbedienung und Innenspiegel mit digitalem Kompass und Funkfrequenz 434 MHZ und Funkfrequenz 315 MHz |
L802A=Nein L807A=Nein S319A=Nein S4NAA=Nein S874A=Nein S876A=Nein |
|||||||||
| 01 | Innenspiegel manuell / Funk | 868 MHZ | 1 | 51169302872 | Shop at ECS Tuning | |||||
| Für Fahrzeuge mit Integrierte Universal-Fernbedienung |
S319A=Ja |
|||||||||
| 02 | Innenspiegel manuell / GTO / Funk | 868 MHZ | 1 | 51162752988 | Shop at ECS Tuning | |||||
| 03 | Halter Innenspiegel | 1 | 07/2012 | 51162752989 | $6.27 | Entfallen | Shop at ECS Tuning | |||
| 04 | Kunststoffmutter | 2 | 07129906564 | $1.73 | Shop at ECS Tuning | |||||
| 05 | Schraube | M6X28MM | 1 | 07100702886 | $0.38 | Shop at ECS Tuning | ||||
| 06 | Torxschraube für Kunststoff | ISA L=22MM | 1 | 84137007031 | $0.62 | Shop at ECS Tuning | ||||
| 07 | Spreizmutter | D=8,5MM | 1 | 07130656754 | $0.29 | Shop at ECS Tuning | ||||
| 08 | Satz Abdeckungen Spiegelfuss | SCHWARZ | 1 | 51167163810 | $5.82 | Shop at ECS Tuning | ||||
Ergänzungen
- Entfallen = nicht mehr lieferbar.
See Also
Frequently Asked Questions
- What assembly is shown in the BMW MINI R56 Cooper Innenspiegel manuell abblendbar?

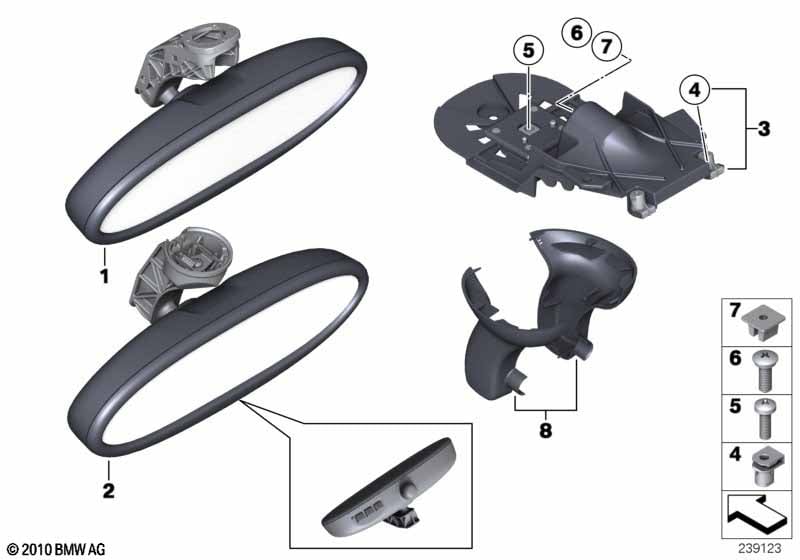

- This technical diagram illustrates the Innenspiegel manuell abblendbar within the Fahrzeugausstattung group for the MINI R56 Cooper produced during 2007. It provides a detailed exploded view of the components, identifying key parts such as the Innenspiegel manuell / Funk (Part #51169218053).
- Which models use the hardware listed in this Innenspiegel manuell abblendbar?
- The hardware and components featured in the Innenspiegel manuell abblendbar are specific to the MINI R56 Cooper produced during 2007. These technical specifications ensure that parts like the Innenspiegel manuell / Funk (51169218053) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Innenspiegel manuell abblendbar assembly?
- Each item in the Innenspiegel manuell abblendbar corresponds to the numbered list below the illustration. For the MINI R56 Cooper, you can identify the Innenspiegel manuell / Funk by locating its position on the schematic, which then links to the official BMW part number 51169218053 for the Fahrzeugausstattung section.
