Innenspiegel automatisch abblendend for BMW MINI R56 Cooper (2007)

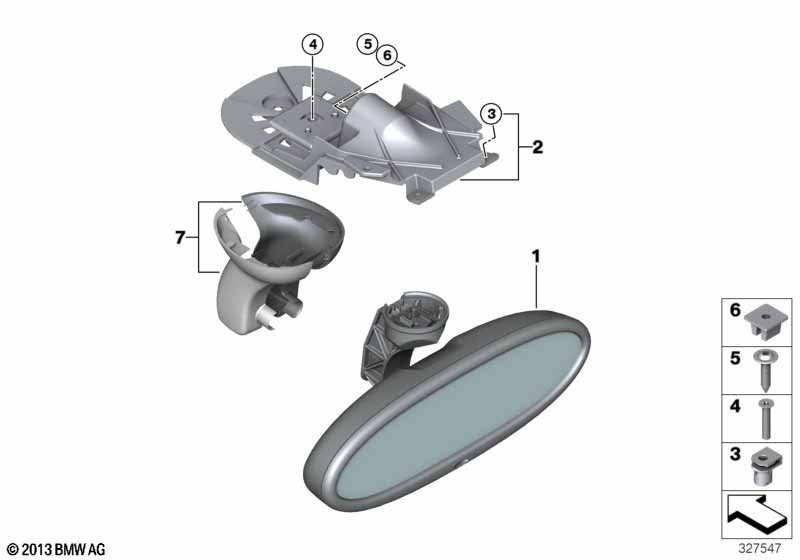

This Innenspiegel automatisch abblendend technical drawing provides a detailed breakdown of the assembly for the MINI R56 Cooper. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2007.
| Nr. | Beschreibung | Erläuterungen | Anzahl | Von | Bis | Teilenummer | Preis | Ergänzungen | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | EC = Electrochrom Funk = Funkfernbedienung LED = Leuchtdiode für Diebstahlwarnanlage GTO = integrierte Universalfernbedienung/Garagentoröffner FLA = Fernlichtassistent Kompass = digitale Kompassanzeige ETC = Electronic Toll Collection TLC = Spurverlassenswarnung Für Fahrzeuge mit Innenspiegel automatisch abblendend |
S431A=Ja |
||||||||
| Für Fahrzeuge mit Funkfrequenz 434 MHZ |
S874A=Ja |
|||||||||
| 01 | Innenspiegel EC / Funk | 434 MHZ | 1 | 51169219375 | Shop at ECS Tuning | |||||
| Für Fahrzeuge mit Integrierte Universal-Fernbedienung |
S319A=Ja |
|||||||||
| 01 | Innenspiegel EC / GTO / Funk | 868 MHZ | 1 | 51169302883 | Shop at ECS Tuning | |||||
| Für Fahrzeuge mit Länderausführung Korea und Innenspiegel mit digitalem Kompass und Funkfrequenz 315 MHz |
L802A=Nein S4NAA=Nein S876A=Ja |
|||||||||
| 01 | Innenspiegel EC / Funk | 315 MHZ | 1 | 51169302882 | Shop at ECS Tuning | |||||
| Für Fahrzeuge mit Länderausführung Korea und Länderausführung Japan und Integrierte Universal-Fernbedienung und Innenspiegel mit digitalem Kompass |
L802A=Ja L807A=Nein S319A=Nein S4NAA=Nein |
|||||||||
| 01 | Innenspiegel EC / Funk | 315 MHZ LP | 1 | 51169219372 | Shop at ECS Tuning | |||||
| Für Fahrzeuge mit Länderausführung Korea und Länderausführung Japan und Integrierte Universal-Fernbedienung und Innenspiegel mit digitalem Kompass und Funkfrequenz 315 MHz |
L802A=Nein L807A=Nein S319A=Nein S4NAA=Nein S876A=Ja |
|||||||||
| 01 | Innenspiegel EC / Funk | 315 MHZ | 1 | 51169302882 | Shop at ECS Tuning | |||||
| Für Fahrzeuge mit Länderausführung Korea und Länderausführung Japan und Integrierte Universal-Fernbedienung und Innenspiegel mit digitalem Kompass und Funkfrequenz 434 MHZ und Funkfrequenz 315 MHz |
L802A=Nein L807A=Nein S319A=Nein S4NAA=Nein S874A=Nein S876A=Nein |
|||||||||
| 01 | Innenspiegel EC / Funk | 868 MHZ | 1 | 51169302881 | Shop at ECS Tuning | |||||
| 02 | Halter Innenspiegel | 1 | 07/2012 | 51162752989 | $6.27 | Entfallen | Shop at ECS Tuning | |||
| 03 | Kunststoffmutter | 2 | 07129906564 | $1.73 | Shop at ECS Tuning | |||||
| 04 | Schraube | M6X28MM | 1 | 07100702886 | $0.38 | Shop at ECS Tuning | ||||
| 05 | Torxschraube für Kunststoff | ISA L=22MM | 1 | 84137007031 | $0.62 | Shop at ECS Tuning | ||||
| 06 | Spreizmutter | D=8,5MM | 1 | 07130656754 | $0.29 | Shop at ECS Tuning | ||||
| 07 | Satz Abdeckungen Spiegelfuss | SCHWARZ | 1 | 51167163810 | $5.82 | Shop at ECS Tuning | ||||
Ergänzungen
- Entfallen = nicht mehr lieferbar.
