Träger Instrumententafel for BMW MINI R56 Cooper (2007)

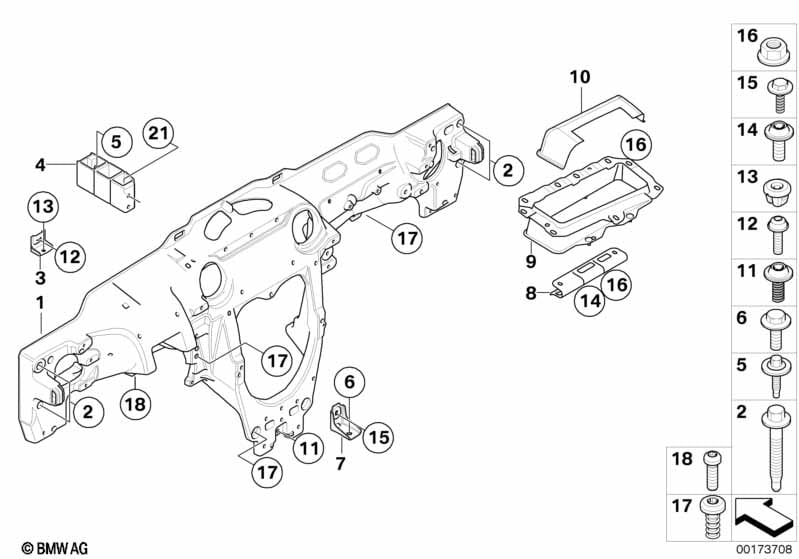

This Träger Instrumententafel technical drawing provides a detailed breakdown of the assembly for the MINI R56 Cooper. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2007.
| Nr. | Beschreibung | Erläuterungen | Anzahl | Von | Bis | Teilenummer | Preis | Ergänzungen | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Träger Instrumententafel | 1 | 51452757005 | $273.79 | Shop at ECS Tuning | |||||
| 02 | Sechskantschraube mit Flansch | M10X72 | 4 | 51452753897 | $2.43 | Shop at ECS Tuning | ||||
| 03 | Halter | 1 | 51452752748 | $2.77 | Shop at ECS Tuning | |||||
| 04 | Halter Träger I-Tafel Stirnwand | 1 | 51452752760 | $15.63 | Shop at ECS Tuning | |||||
| 05 | Sechskantschraube mit Flansch | M8X33 | 1 | 51452753896 | $1.75 | Shop at ECS Tuning | ||||
| 06 | Torxschraube mit Bund | M6X20MM | 2 | 51712754669 | $0.67 | Shop at ECS Tuning | ||||
| 07 | Halter Träger I-Tafel Boden | 2 | 51452752759 | $5.85 | Shop at ECS Tuning | |||||
| 08 | Halter Beifahrerairbag | 1 | 51452752767 | $15.97 | Shop at ECS Tuning | |||||
| 09 | Schusskanal Beifahrerairbag | 1 | 51459233845 | Shop at ECS Tuning | ||||||
| 10 | Abdeckung Beifahrerairbag | 2 | 51452755619 | $13.57 | Shop at ECS Tuning | |||||
| 11 | Torxschraube selbstschneidend | 6X16 | 1 | 51162755932 | $0.66 | Shop at ECS Tuning | ||||
| 12 | Torxschraube für Kunststoff | 5X20-ZNFE SW | 1 | 07147133620 | $0.45 | Shop at ECS Tuning | ||||
| 13 | Clip | 1 | 51452756289 | $0.53 | Shop at ECS Tuning | |||||
| 14 | Torxschraube mit Bund | 6X20 | X | 51452756345 | $0.57 | Shop at ECS Tuning | ||||
| 15 | Torxschraube mit Bund | 6X20 | 2 | 51452756345 | $0.57 | Shop at ECS Tuning | ||||
| 16 | Sechskantmutter selbstsichernd | M6 | 11 | 51417053138 | $0.38 | Shop at ECS Tuning | ||||
| 17 | Torxschraube | 7X18 | 5 | 51452756344 | $0.72 | Shop at ECS Tuning | ||||
| 18 | Torxschraube selbstschneidend | 4 | 32306781741 | $0.90 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW MINI R56 Cooper Träger Instrumententafel?
- This technical diagram illustrates the Träger Instrumententafel within the Fahrzeugausstattung group for the MINI R56 Cooper produced during 2007. It provides a detailed exploded view of the components, identifying key parts such as the Träger Instrumententafel (Part #51452757005).
- Which models use the hardware listed in this Träger Instrumententafel?
- The hardware and components featured in the Träger Instrumententafel are specific to the MINI R56 Cooper produced during 2007. These technical specifications ensure that parts like the Träger Instrumententafel (51452757005) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Träger Instrumententafel assembly?
- Each item in the Träger Instrumententafel corresponds to the numbered list below the illustration. For the MINI R56 Cooper, you can identify the Träger Instrumententafel by locating its position on the schematic, which then links to the official BMW part number 51452757005 for the Fahrzeugausstattung section.
