Verkleidung Instrumententafel for BMW MINI R56 Cooper (2007)

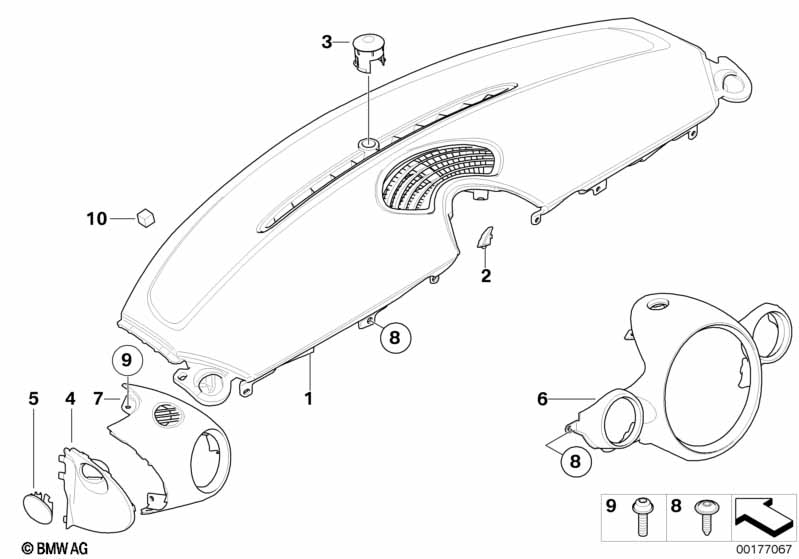

This Verkleidung Instrumententafel technical drawing provides a detailed breakdown of the assembly for the MINI R56 Cooper. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2007.
| Nr. | Beschreibung | Erläuterungen | Anzahl | Von | Bis | Teilenummer | Preis | Ergänzungen | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Verkleidung Instrumententafel oben | 1 | 51452752769 | $425.49 | Shop at ECS Tuning | |||||
| 02 | Abdeckung Luftauslassgitter links | 1 | 51452752771 | $2.02 | Shop at ECS Tuning | |||||
| 02 | Abdeckung Luftauslassgitter rechts | 1 | 51452752772 | $2.02 | Shop at ECS Tuning | |||||
| Für Fahrzeuge mit Klimaautomatik |
S534A=Nein |
|||||||||
| 03 | Blende Ausschnitt Solarsensor | 1 | 51452752896 | $3.10 | Shop at ECS Tuning | |||||
| 04 | Blende I-Tafel aussen links | 1 | 51452752905 | $10.13 | Shop at ECS Tuning | |||||
| 04 | Blende I-Tafel aussen rechts | 1 | 51452752906 | $10.13 | Shop at ECS Tuning | |||||
| 05 | Abdeckung Ausschnitt Schalter links | 1 | 51452752907 | $5.30 | Shop at ECS Tuning | |||||
| Für Fahrzeuge mit Deaktivierung Airbag Beifahrer |
S5DAA=Nein |
|||||||||
| 05 | Abdeckung Ausschnitt Schalter rechts | 1 | 51452752908 | $5.30 | Shop at ECS Tuning | |||||
| Für Fahrzeuge mit Chrome Line Interieur |
S345A=Ja |
|||||||||
| 06 | Abdeckung Instrumente Chrom | CHROM | 1 | 51452752794 | $52.25 | Shop at ECS Tuning | ||||
| Für Fahrzeuge mit Chrome Line Interieur |
S345A=Nein |
|||||||||
| 06 | Abdeckung Instrumente | SILVER | 1 | 51452752793 | $55.46 | Shop at ECS Tuning | ||||
| Für Fahrzeuge mit Chrome Line Interieur |
S345A=Ja |
|||||||||
| 07 | Abdeckung Luftauslass I-Tafel links | CHROM | 1 | 51452752799 | $31.72 | Shop at ECS Tuning | ||||
| 07 | Abdeckung Luftauslass I-Tafel rechts | CHROM | 1 | 51452752800 | $31.72 | Shop at ECS Tuning | ||||
| Für Fahrzeuge mit Chrome Line Interieur |
S345A=Nein |
|||||||||
| 07 | Abdeckung Luftauslass I-Tafel links | SILVER | 1 | 51452752797 | $33.36 | Shop at ECS Tuning | ||||
| 07 | Abdeckung Luftauslass I-Tafel rechts | SILVER | 1 | 51452752798 | $33.36 | Shop at ECS Tuning | ||||
| 08 | Linsenblechschraube mit Bund | ISA ST4,2X16 | 60 | 07147136006 | $0.18 | Shop at ECS Tuning | ||||
| 09 | Torxschraube für Kunststoff | 5X20-ZNFE SW | 5 | 07147133620 | $0.45 | Shop at ECS Tuning | ||||
| 09 | Linsenblechschraube mit Bund | ISA ST4,8X25 | 2 | 07149247838 | Shop at ECS Tuning | |||||
| 10 | Distanzstück | 25X25X24MM | 4 | 10/2011 | 51438204235 | $0.91 | Shop at ECS Tuning | |||
