Verkleidung Gepäckraum seitlich for BMW MINI R56 Cooper (2007)

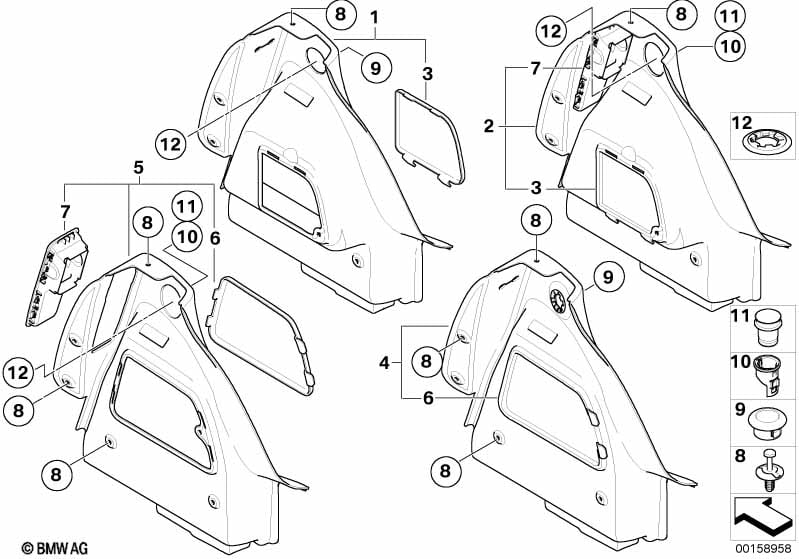

This Verkleidung Gepäckraum seitlich technical drawing provides a detailed breakdown of the assembly for the MINI R56 Cooper. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2007.

Verkleidung Gepäckraum seitlich
Nr. Beschreibung Erläuterungen Anzahl  Von   Bis  Teilenummer Preis Ergänzungen
Für Fahrzeuge mit
Ablagenpaket
und
HiFi System Harman Kardon

S493A=Nein

S674A=Nein
01 Verkleidung Gepäckraum links 1 51477136801 Shop at ECS Tuning
01 Verkleidung Gepäckraum rechts 1 51477136802 +Pfand Shop at ECS Tuning
Für Fahrzeuge mit
Ablagenpaket
und
DAB-Tuner

S493A=Ja

S654A=Nein
02 Verkleidung Gepäckraum rechts 1 51477262284 Shop at ECS Tuning
Für Fahrzeuge mit
Ablagenpaket
und
HiFi System Harman Kardon

S493A=Ja

S674A=Nein
02 Verkleidung Gepäckraum links 1 51477262283 Shop at ECS Tuning
Für Fahrzeuge mit
DAB-Tuner

S654A=Nein
03 Deckel Verkleidung Gepäckraum rechts 1 51477138430 $62.67 Shop at ECS Tuning
Für Fahrzeuge mit
HiFi System Harman Kardon

S674A=Nein
03 Deckel Verkleidung Gepäckraum links 1 51477138429 $62.67 Shop at ECS Tuning
Für Fahrzeuge mit
Ablagenpaket
und
MINI HiFi Lautsprechersystem

S493A=Nein

S6FDA=Ja
04 Verkleidung Gepäckraum links 1 51412751429 +Pfand Shop at ECS Tuning
Für Fahrzeuge mit
Ablagenpaket
und
DAB-Tuner

S493A=Nein

S654A=Ja
04 Verkleidung Gepäckraum rechts 1 51412751430 +Pfand Shop at ECS Tuning
Für Fahrzeuge mit
Ablagenpaket
und
DAB-Tuner

S493A=Ja

S654A=Ja
05 Verkleidung Gepäckraum rechts 1 51477262286 Shop at ECS Tuning
Für Fahrzeuge mit
Ablagenpaket
und
HiFi System Harman Kardon

S493A=Ja

S674A=Ja
05 Verkleidung Gepäckraum links 1 51477262285 Shop at ECS Tuning
Für Fahrzeuge mit
DAB-Tuner

S654A=Ja
06 Deckel Verkleidung Gepäckraum rechts 1 51412752968 $30.46 +Pfand Shop at ECS Tuning
Für Fahrzeuge mit
HiFi System Harman Kardon

S674A=Ja
06 Deckel Verkleidung Gepäckraum links 1 51412752967 $30.46 +Pfand Shop at ECS Tuning
Für Fahrzeuge mit
Ablagenpaket

S493A=Ja
07 Einsatz Verkleidung Gepäckraum 2 51472752257 $9.51 Shop at ECS Tuning
08 Spreizniet 10 51472754477 $1.12 Shop at ECS Tuning
Für Fahrzeuge mit
Ablagenpaket

S493A=Nein
09 Abdeckkappe PANTHER BLACK 1 51437034489 $3.42 Shop at ECS Tuning
10 Leuchtring orange 1 51167052720 $3.73 Shop at ECS Tuning
11 Stopfen Steckdose DARK SILVER 1 51167058258 $5.65 Shop at ECS Tuning
11 Stopfen Steckdose 1 61349316116 Shop at ECS Tuning
12 Aufnahme Steckdose 1 51477252642 Shop at ECS Tuning
Ergänzungen
  • +Pfand = plus Altteilepfand (Möglicherweise muss das Altteil im Austausch abgegeben werden)
