Bodenverkleidung for BMW MINI R56 Cooper (2007)

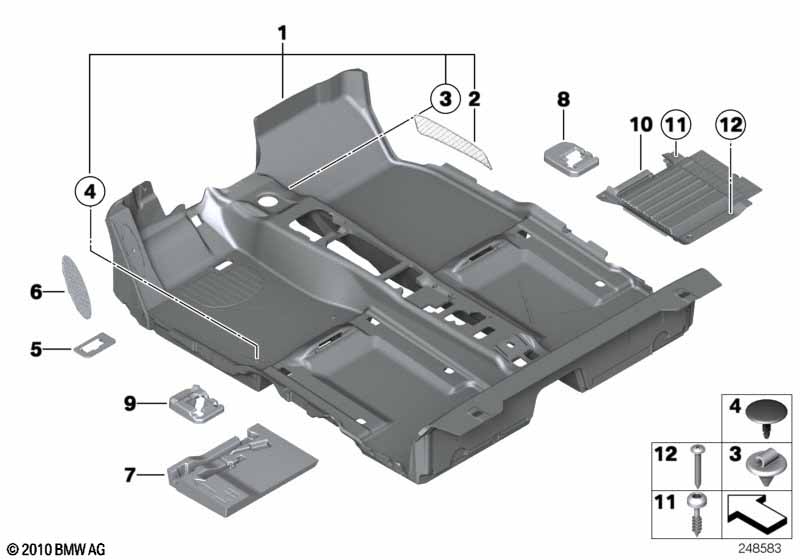

This Bodenverkleidung technical drawing provides a detailed breakdown of the assembly for the MINI R56 Cooper. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2007.
| Nr. | Beschreibung | Erläuterungen | Anzahl | Von | Bis | Teilenummer | Preis | Ergänzungen | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Bodenverkleidung | CARBON BLACK | 1 | 51479181159 | $473.55 | Shop at ECS Tuning | ||||
| Für Fahrzeuge mit Ablagenpaket |
S493A=Ja |
|||||||||
| 02 | Ablagenetz Fussraum vorn | 1 | 51472756214 | $35.92 | Shop at ECS Tuning | |||||
| 03 | Clip | 5 | 51472756186 | $7.86 | Shop at ECS Tuning | |||||
| 04 | Verschlusskappe | 2 | 51479176815 | $5.52 | Shop at ECS Tuning | |||||
| 06 | Einlage Fussstütze | 1 | 51477138446 | $6.52 | Shop at ECS Tuning | |||||
| Für Fahrzeuge mit Habanero |
P7HHA=Ja |
|||||||||
| 06 | Einlage Fussstütze Edelstahl | 1 | 51477149471 | $31.35 | Shop at ECS Tuning | |||||
| 07 | Einleger Fussraum hinten links | 1 | 51477246202 | $13.37 | Shop at ECS Tuning | |||||
| Für Fahrzeuge mit Dynamische-Stabilitäts-Control und TV-Funktion |
S210A=Ja S601A=Nein |
|||||||||
| 07 | Einleger Fussraum hinten rechts | DSC | 1 | 51477342434 | Shop at ECS Tuning | |||||
| Für Fahrzeuge mit Dynamische-Stabilitäts-Control oder TV-Funktion |
S210A=Nein S601A=Nein |
|||||||||
| 07 | Einleger Fussraum hinten rechts | 1 | 51472753408 | $13.37 | Shop at ECS Tuning | |||||
| Für Fahrzeuge mit Armlehne vorne |
S473A=Ja |
|||||||||
| 08 | Füllstück | MRSZ4 | 1 | 51472754964 | $8.30 | Shop at ECS Tuning | ||||
| Für Fahrzeuge mit Armlehne vorne und Freisprecheinrichtung Bluetooth |
S473A=Nein S6NDA=Ja |
|||||||||
| 09 | Füllstück | MRS6 | 1 | 51477207507 | $11.32 | Shop at ECS Tuning | ||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW MINI R56 Cooper Bodenverkleidung?
- This technical diagram illustrates the Bodenverkleidung within the Fahrzeugausstattung group for the MINI R56 Cooper produced during 2007. It provides a detailed exploded view of the components, identifying key parts such as the Bodenverkleidung (Part #51479181159).
- Which models use the hardware listed in this Bodenverkleidung?
- The hardware and components featured in the Bodenverkleidung are specific to the MINI R56 Cooper produced during 2007. These technical specifications ensure that parts like the Bodenverkleidung (51479181159) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Bodenverkleidung assembly?
- Each item in the Bodenverkleidung corresponds to the numbered list below the illustration. For the MINI R56 Cooper, you can identify the Bodenverkleidung by locating its position on the schematic, which then links to the official BMW part number 51479181159 for the Fahrzeugausstattung section.
