Verkleidung A- / B- / C-Säule for BMW MINI R56 Cooper (2007)

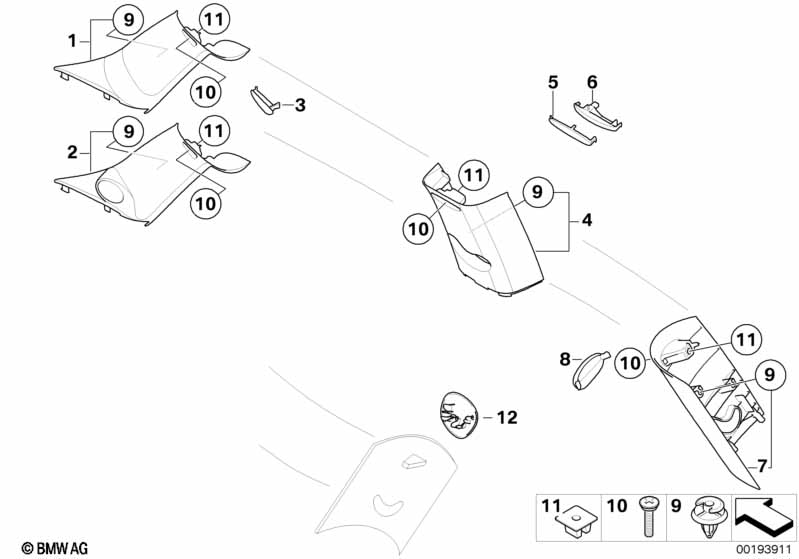

This Verkleidung A- / B- / C-Säule technical drawing provides a detailed breakdown of the assembly for the MINI R56 Cooper. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2007.
| Nr. | Beschreibung | Erläuterungen | Anzahl | Von | Bis | Teilenummer | Preis | Ergänzungen | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Für Fahrzeuge mit Dachhimmel anthrazit und HiFi System Harman Kardon und MINI HiFi Lautsprechersystem |
S4AAA=Nein S674A=Nein S6FDA=Nein |
|||||||||
| 01 | Blende A-Säule links | HELLGRAU | 1 | 08/2010 | 51432752997 | $23.70 | Entfallen | Shop at ECS Tuning | ||
| 01 | Blende A-Säule rechts | HELLGRAU | 1 | 08/2010 | 51432752998 | $23.70 | Entfallen | Shop at ECS Tuning | ||
| Für Fahrzeuge mit Dachhimmel anthrazit und HiFi System Harman Kardon und MINI HiFi Lautsprechersystem |
S4AAA=Ja S674A=Nein S6FDA=Nein |
|||||||||
| 01 | Blende A-Säule links | CARBON BLACK | 1 | 51432752999 | $23.43 | Shop at ECS Tuning | ||||
| 01 | Blende A-Säule rechts | CARBON BLACK | 1 | 51432753000 | $23.43 | Shop at ECS Tuning | ||||
| Für Fahrzeuge mit Dachhimmel anthrazit und MINI HiFi Lautsprechersystem |
S4AAA=Nein S6FDA=Ja |
|||||||||
| 02 | Blende A-Säule links | HELLGRAU | 1 | 09/2009 | 51432756767 | $33.81 | Shop at ECS Tuning | |||
| Ohne Lautsprecher | ||||||||||
| 02 | Blende A-Säule rechts | HELLGRAU | 1 | 09/2009 | 51432756768 | $33.81 | Shop at ECS Tuning | |||
| Ohne Lautsprecher | ||||||||||
| Für Fahrzeuge mit Dachhimmel anthrazit und MINI HiFi Lautsprechersystem |
S4AAA=Ja S6FDA=Ja |
|||||||||
| 02 | Blende A-Säule links | CARBON BLACK | 1 | 09/2009 | 51432756769 | $33.81 | Shop at ECS Tuning | |||
| Ohne Lautsprecher | ||||||||||
| 02 | Blende A-Säule rechts | CARBON BLACK | 1 | 09/2009 | 51432756770 | $33.81 | Shop at ECS Tuning | |||
| Ohne Lautsprecher | ||||||||||
| Für Fahrzeuge mit Dachhimmel anthrazit |
S4AAA=Ja |
|||||||||
| 03 | Abdeckkappe ''Airbag'' A-Säule links | CARBON BLACK | 1 | 51432753011 | $0.44 | Shop at ECS Tuning | ||||
| 03 | Abdeckkappe "Airbag" A-Säule rechts | CARBON BLACK | 1 | 51432753012 | $0.44 | Shop at ECS Tuning | ||||
| Für Fahrzeuge mit Dachhimmel anthrazit |
S4AAA=Nein |
|||||||||
| 03 | Abdeckkappe ''Airbag'' A-Säule links | HELLGRAU | 1 | 08/2010 | 51432753009 | $0.44 | Shop at ECS Tuning | |||
| 03 | Abdeckkappe "Airbag" A-Säule rechts | HELLGRAU | 1 | 08/2010 | 51432753010 | $0.44 | Shop at ECS Tuning | |||
| Für Fahrzeuge mit Dachhimmel anthrazit |
S4AAA=Ja |
|||||||||
| 04 | Blende B-Säule oben links | CARBON BLACK | 1 | 51432753003 | $38.40 | Shop at ECS Tuning | ||||
| 04 | Blende B-Säule oben rechts | CARBON BLACK | 1 | 51432753004 | $38.40 | Shop at ECS Tuning | ||||
| Für Fahrzeuge mit Dachhimmel anthrazit |
S4AAA=Nein |
|||||||||
| 04 | Blende B-Säule oben links | HELLGRAU | 1 | 08/2010 | 51432753001 | $38.40 | Shop at ECS Tuning | |||
| 04 | Blende B-Säule oben rechts | HELLGRAU | 1 | 08/2010 | 51432753002 | $38.40 | Shop at ECS Tuning | |||
| Für Fahrzeuge mit Dachhimmel anthrazit und Lichtpaket |
S4AAA=Ja S563A=Nein |
|||||||||
| 05 | Abdeckkappe ''Airbag'' B-Säule links | CARBON BLACK | 1 | 51432753015 | $0.44 | Shop at ECS Tuning | ||||
| 05 | Abdeckkappe "Airbag" B-Säule rechts | CARBON BLACK | 1 | 51432753016 | $0.44 | Shop at ECS Tuning | ||||
| Für Fahrzeuge mit Dachhimmel anthrazit oder Lichtpaket |
S4AAA=Nein S563A=Nein |
|||||||||
| 05 | Abdeckkappe ''Airbag'' B-Säule links | HELLGRAU | 1 | 08/2010 | 51432753013 | Shop at ECS Tuning | ||||
| 05 | Abdeckkappe "Airbag" B-Säule rechts | HELLGRAU | 1 | 08/2010 | 51432753014 | $0.44 | Shop at ECS Tuning | |||
| Für Fahrzeuge mit Dachhimmel anthrazit und Lichtpaket |
S4AAA=Nein S563A=Ja |
|||||||||
| 06 | Abdeckkappe ''Airbag'' B-Säule links | HELLGRAU | 1 | 08/2010 | 51432754513 | $9.60 | Shop at ECS Tuning | |||
| 06 | Abdeckkappe "Airbag" B-Säule rechts | HELLGRAU | 1 | 08/2010 | 51432754514 | $9.60 | Shop at ECS Tuning | |||
| Für Fahrzeuge mit Dachhimmel anthrazit und Lichtpaket |
S4AAA=Ja S563A=Ja |
|||||||||
| 06 | Abdeckkappe ''Airbag'' B-Säule links | CARBON BLACK | 1 | 51432754515 | $9.60 | Shop at ECS Tuning | ||||
| 06 | Abdeckkappe "Airbag" B-Säule rechts | CARBON BLACK | 1 | 51432754516 | $9.60 | Shop at ECS Tuning | ||||
| Für Fahrzeuge mit Dachhimmel anthrazit |
S4AAA=Ja |
|||||||||
| 07 | Blende C-Säule links | CARBON BLACK | 1 | 51432753007 | $38.40 | Shop at ECS Tuning | ||||
| 07 | Blende C-Säule rechts | CARBON BLACK | 1 | 51432753008 | $38.40 | Shop at ECS Tuning | ||||
| Für Fahrzeuge mit Dachhimmel anthrazit |
S4AAA=Nein |
|||||||||
| 07 | Blende C-Säule links | HELLGRAU | 1 | 08/2010 | 51432753005 | $38.40 | Shop at ECS Tuning | |||
| 07 | Blende C-Säule rechts | HELLGRAU | 1 | 08/2010 | 51432753006 | $38.40 | Entfallen | Shop at ECS Tuning | ||
| Für Fahrzeuge mit Dachhimmel anthrazit |
S4AAA=Ja |
|||||||||
| 08 | Abdeckkappe Airbag C-Säule links | CARBON BLACK | 1 | 51432753023 | $0.44 | Shop at ECS Tuning | ||||
| 08 | Abdeckkappe "Airbag" C-Säule rechts | CARBON BLACK | 1 | 51432753024 | $0.44 | Shop at ECS Tuning | ||||
| Für Fahrzeuge mit Dachhimmel anthrazit |
S4AAA=Nein |
|||||||||
| 08 | Abdeckkappe Airbag C-Säule links | HELLGRAU | 1 | 08/2010 | 51432753021 | $0.44 | Shop at ECS Tuning | |||
| 08 | Abdeckkappe "Airbag" C-Säule rechts | HELLGRAU | 1 | 08/2010 | 51432753022 | $0.44 | Shop at ECS Tuning | |||
| 09 | Clip natur | 12 | 51437001491 | $0.42 | Shop at ECS Tuning | |||||
| 10 | Torxschraube für Kunststoff | ISA L=22MM | 6 | 84137007031 | $0.62 | Shop at ECS Tuning | ||||
| 11 | Spreizmutter | D=8,5MM | 6 | 07130656754 | $0.29 | Shop at ECS Tuning | ||||
Ergänzungen
- Entfallen = nicht mehr lieferbar.
See Also
Frequently Asked Questions
- What assembly is shown in the BMW MINI R56 Cooper Verkleidung A- / B- / C-Säule?
- This technical diagram illustrates the Verkleidung A- / B- / C-Säule within the Fahrzeugausstattung group for the MINI R56 Cooper produced during 2007. It provides a detailed exploded view of the components, identifying key parts such as the Blende A-Säule links (Part #51432752997).
- Which models use the hardware listed in this Verkleidung A- / B- / C-Säule?
- The hardware and components featured in the Verkleidung A- / B- / C-Säule are specific to the MINI R56 Cooper produced during 2007. These technical specifications ensure that parts like the Blende A-Säule links (51432752997) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Verkleidung A- / B- / C-Säule assembly?
- Each item in the Verkleidung A- / B- / C-Säule corresponds to the numbered list below the illustration. For the MINI R56 Cooper, you can identify the Blende A-Säule links by locating its position on the schematic, which then links to the official BMW part number 51432752997 for the Fahrzeugausstattung section.
