Verkleidung Heckklappe for BMW MINI R56 Cooper (2007)

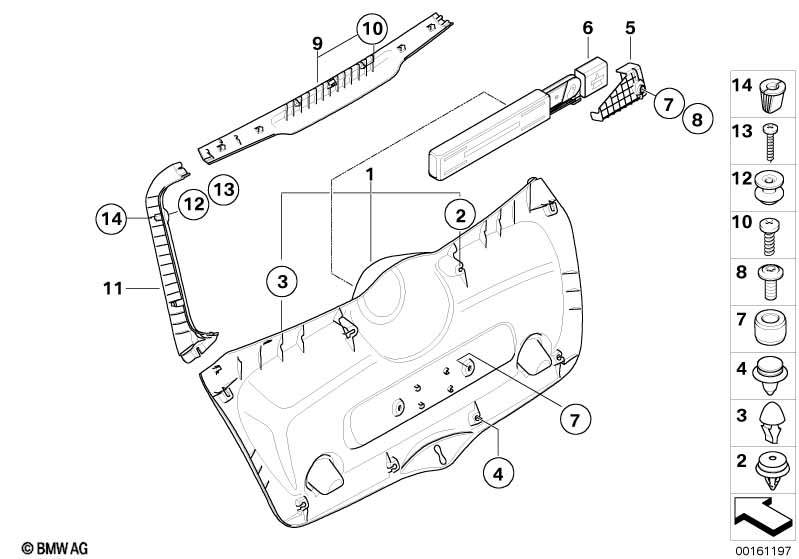

This Verkleidung Heckklappe technical drawing provides a detailed breakdown of the assembly for the MINI R56 Cooper. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2007.
| Nr. | Beschreibung | Erläuterungen | Anzahl | Von | Bis | Teilenummer | Preis | Ergänzungen | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Verkleidung Heckklappe unten | 1 | 51497148904 | $83.22 | Shop at ECS Tuning | |||||
| 02 | Clip natur | 6 | 51437001491 | $0.42 | Shop at ECS Tuning | |||||
| 03 | Puffer | 2 | 07132756983 | $4.62 | Shop at ECS Tuning | |||||
| 04 | Clip gelb | 2 | 07131503417 | $0.75 | Shop at ECS Tuning | |||||
| Für Fahrzeuge mit Warndreieck und Verbandstasche |
S428A=Ja |
|||||||||
| 05 | Halter Warndreieck links | 1 | 01/2010 | 71102755793 | Shop at ECS Tuning | |||||
| 05 | Halter Warndreieck rechts | 1 | 01/2010 | 71102755794 | Shop at ECS Tuning | |||||
| 06 | Warndreieck mit Behälter | ECE R27 | 1 | 71606770487 | Shop at ECS Tuning | |||||
| 08 | Torxschraube mit Scheibe | ISA M6X22 | 2 | 07147144993 | $0.65 | Shop at ECS Tuning | ||||
| 09 | Verkleidung Heckklappe oben | 1 | 51497148908 | $9.11 | Shop at ECS Tuning | |||||
| 10 | Linsenschraube | E4X8 | 2 | 51458102577 | $0.33 | Shop at ECS Tuning | ||||
| 11 | Verkleidung Heckklappe links | 1 | 51497148909 | $6.83 | Shop at ECS Tuning | |||||
| 11 | Verkleidung Heckklappe rechts | 1 | 51497148910 | $6.83 | Shop at ECS Tuning | |||||
| 12 | Hülse Fangband Ablegeboden | 2 | 51470744888 | $1.03 | Shop at ECS Tuning | |||||
| 13 | Schraube für Kunststoff | ISA TS4X45 | 2 | 07142755453 | $0.25 | Shop at ECS Tuning | ||||
| 14 | Spreizmutter | ST 4.8 WEISS | 2 | 63171367868 | $0.60 | Shop at ECS Tuning | ||||
