Dachhimmel for BMW MINI R56 Cooper (2007)

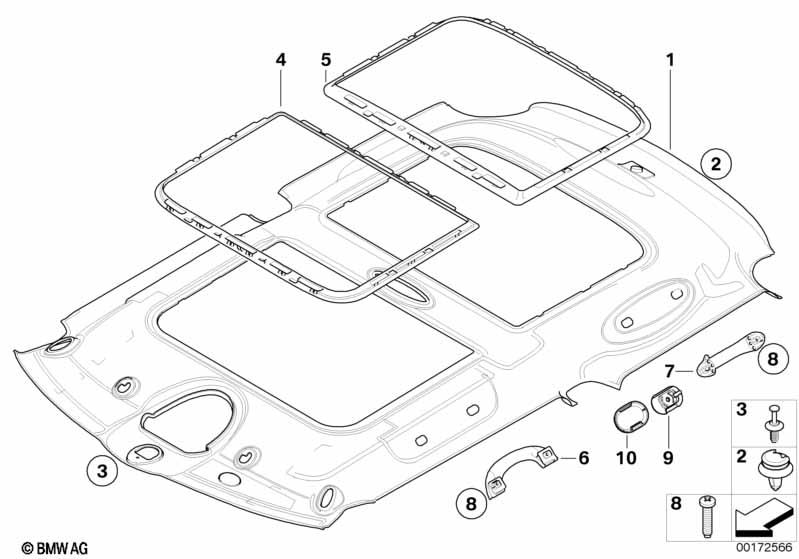

This Dachhimmel technical drawing provides a detailed breakdown of the assembly for the MINI R56 Cooper. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2007.
| Nr. | Beschreibung | Erläuterungen | Anzahl | Von | Bis | Teilenummer | Preis | Ergänzungen | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Für Fahrzeuge mit Glasdach elektrisch |
S403A=Ja |
||||||||
| Für Fahrzeuge mit Dachhimmel anthrazit |
S4AAA=Nein |
|||||||||
| 01 | Dachhimmel Schiebehebedach | HELLGRAU | 1 | 08/2010 | 51442752270 | $375.62 | Shop at ECS Tuning | |||
| Für Fahrzeuge mit Dachhimmel anthrazit |
S4AAA=Ja |
|||||||||
| 01 | Dachhimmel Schiebehebedach | CARBON BLACK | 1 | 51442752269 | $375.62 | Shop at ECS Tuning | ||||
| 02 | Clip mit Dichtscheibe natur | WEIß | 1 | 51418224768 | $0.69 | Shop at ECS Tuning | ||||
| 03 | Spreizniet | D = 6MM | 1 | 51111908077 | $0.30 | Shop at ECS Tuning | ||||
| 04 | Blende Himmel vorn | CARBON BLACK | 1 | 51442753146 | $36.30 | Shop at ECS Tuning | ||||
| 05 | Blende Himmel hinten | CARBON BLACK | 1 | 51442753148 | $36.30 | Shop at ECS Tuning | ||||
| Für Fahrzeuge mit Dachhimmel anthrazit |
S4AAA=Nein |
|||||||||
| 06 | Haltegriff vorn | HELLGRAU | 1 | 08/2010 | 51162754169 | $10.22 | Shop at ECS Tuning | |||
| Für Fahrzeuge mit Dachhimmel anthrazit |
S4AAA=Ja |
|||||||||
| 06 | Haltegriff vorn | CARBON BLACK | 1 | 51162754168 | $10.22 | Shop at ECS Tuning | ||||
| Für Fahrzeuge mit Dachhimmel anthrazit |
S4AAA=Nein |
|||||||||
| 07 | Haltegriff hinten links | HELLGRAU | 1 | 08/2010 | 51442753141 | $8.48 | Shop at ECS Tuning | |||
| 07 | Haltegriff hinten rechts | HELLGRAU | 1 | 08/2010 | 51442753142 | $8.48 | Shop at ECS Tuning | |||
| Für Fahrzeuge mit Dachhimmel anthrazit |
S4AAA=Ja |
|||||||||
| 07 | Haltegriff hinten links | CARBON BLACK | 1 | 51442753143 | $8.48 | Shop at ECS Tuning | ||||
| 07 | Haltegriff hinten rechts | CARBON BLACK | 1 | 51442753144 | $8.48 | Shop at ECS Tuning | ||||
| 08 | Linsenschraube mit Lackschabenut | M5X22 | 8 | 07149175903 | $0.44 | Shop at ECS Tuning | ||||
| Für Fahrzeuge mit Dachhimmel anthrazit und Ablagenpaket |
S4AAA=Ja S493A=Nein |
|||||||||
| 10 | Abdeckkappe Himmel | CARBON BLACK | 2 | 51162754163 | $1.68 | Shop at ECS Tuning | ||||
| Für Fahrzeuge mit Dachhimmel anthrazit oder Ablagenpaket |
S4AAA=Nein S493A=Nein |
|||||||||
| 10 | Abdeckkappe Himmel | HELLGRAU | 2 | 08/2010 | 51162754165 | $1.68 | Entfallen | Shop at ECS Tuning | ||
Ergänzungen
- Entfallen = nicht mehr lieferbar.
