Sonnenblenden for BMW MINI R56 Cooper (2007)

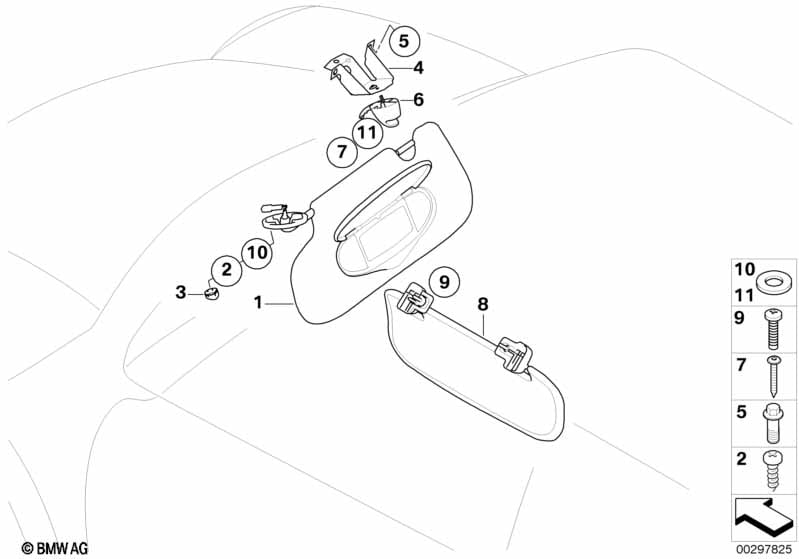

This Sonnenblenden technical drawing provides a detailed breakdown of the assembly for the MINI R56 Cooper. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2007.
| Nr. | Beschreibung | Erläuterungen | Anzahl | Von | Bis | Teilenummer | Preis | Ergänzungen | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Für Fahrzeuge mit Dachhimmel anthrazit |
S4AAA=Nein |
|||||||||
| 01 | Sonnenblende ohne Label links | HELLGRAU | 1 | 08/2010 | 51167339375 | Shop at ECS Tuning | ||||
| 01 | Sonnenblende ohne Label rechts | HELLGRAU | 1 | 08/2010 | 51167339376 | Shop at ECS Tuning | ||||
| Für Fahrzeuge mit Dachhimmel anthrazit |
S4AAA=Ja |
|||||||||
| 01 | Sonnenblende ohne Label links | CARBON BLACK | 1 | 51167361833 | Shop at ECS Tuning | |||||
| Für Fahrzeuge mit Dachhimmel anthrazit und Bordliteratur polnisch und Ländersteuerung Russland 10323 |
S4AAA=Ja S8ATA=Nein S8LRA=Nein |
|||||||||
| 01 | Sonnenblende ohne Label rechts | CARBON BLACK | 1 | 51167361834 | Shop at ECS Tuning | |||||
| 02 | Linsenblechschraube mit Bund | ST4,2X16MM | 4 | 63212754322 | $0.14 | Shop at ECS Tuning | ||||
| Für Fahrzeuge mit Dachhimmel anthrazit |
S4AAA=Nein |
|||||||||
| 03 | Abdeckung Verschraubung Lagerbock | HELLGRAU | 4 | 08/2010 | 51162754558 | $0.70 | Shop at ECS Tuning | |||
| Für Fahrzeuge mit Dachhimmel anthrazit |
S4AAA=Ja |
|||||||||
| 03 | Abdeckung Verschraubung Lagerbock | CARBON BLACK | 4 | 51162754557 | $0.70 | Shop at ECS Tuning | ||||
| 04 | Halter Sonnenblende | 2 | 41221170050 | $2.44 | Shop at ECS Tuning | |||||
| 05 | Sechskantschraube | M6X12-8.8-ZNS3 | 6 | 07119905827 | $0.38 | Shop at ECS Tuning | ||||
| Für Fahrzeuge mit Dachhimmel anthrazit |
S4AAA=Nein |
|||||||||
| 06 | Gegenlager Sonnenblende | HELLGRAU | 2 | 08/2010 | 51162756977 | $1.83 | Shop at ECS Tuning | |||
| Für Fahrzeuge mit Dachhimmel anthrazit |
S4AAA=Ja |
|||||||||
| 06 | Gegenlager Sonnenblende | CARBON BLACK | 2 | 51162756978 | $1.83 | Shop at ECS Tuning | ||||
| 07 | Linsenblechschraube mit Bund | ST4,2X31 | 2 | 07147136516 | $0.47 | Shop at ECS Tuning | ||||
| Für Fahrzeuge mit Dachhimmel anthrazit oder Glasdach elektrisch |
S4AAA=Nein S403A=Nein |
|||||||||
| 08 | Sonnenblende seitlich | HELLGRAU | 1 | 09/2008 | 51162753552 | $43.88 | Shop at ECS Tuning | |||
| Für Fahrzeuge mit Dachhimmel anthrazit und Glasdach elektrisch |
S4AAA=Ja S403A=Ja |
|||||||||
| 08 | Sonnenblende seitlich | CARBON BLACK | 1 | 09/2008 | 51162753585 | $43.88 | Shop at ECS Tuning | |||
| Für Fahrzeuge mit Dachhimmel anthrazit und Glasdach elektrisch |
S4AAA=Ja S403A=Nein |
|||||||||
| 08 | Sonnenblende seitlich | CARBON BLACK | 1 | 09/2008 | 51162753551 | $43.88 | Shop at ECS Tuning | |||
| Für Fahrzeuge mit Dachhimmel anthrazit und Glasdach elektrisch |
S4AAA=Nein S403A=Ja |
|||||||||
| 08 | Sonnenblende seitlich | HELLGRAU | 1 | 09/2008 | 51162753586 | $43.88 | Shop at ECS Tuning | |||
| 09 | Linsenschraube mit Lackschabenut | M5X22 | 2 | 07149175903 | $0.44 | Shop at ECS Tuning | ||||
