Verkleidung Gepäckraumboden for BMW MINI R56 Cooper (2007)

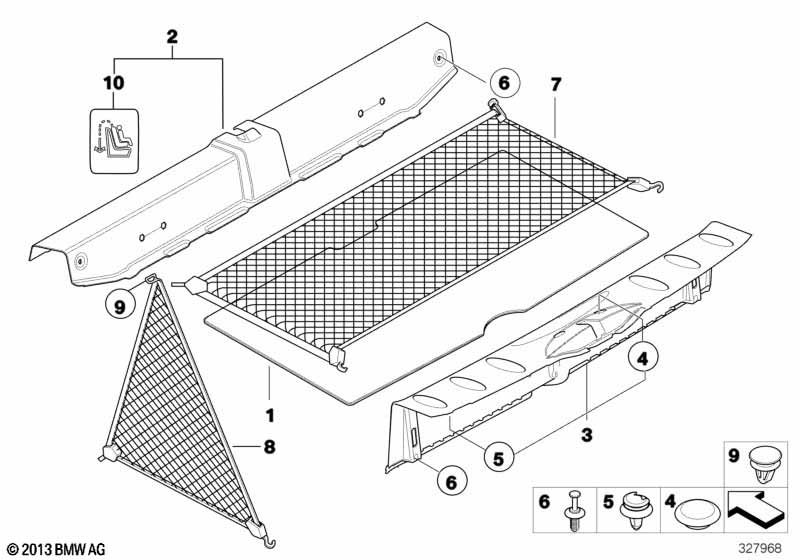

This Verkleidung Gepäckraumboden technical drawing provides a detailed breakdown of the assembly for the MINI R56 Cooper. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2007.
| Nr. | Beschreibung | Erläuterungen | Anzahl | Von | Bis | Teilenummer | Preis | Ergänzungen | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Verkleidung Gepäckraumboden | 1 | 51477138452 | $44.38 | Shop at ECS Tuning | |||||
| 03 | Blende Ladekante | 1 | 51477138451 | $47.40 | Shop at ECS Tuning | |||||
| 04 | Stopfen | 2 | 51472754399 | $0.44 | Shop at ECS Tuning | |||||
| 05 | Clip natur | 4 | 51437001491 | $0.42 | Shop at ECS Tuning | |||||
| 06 | Spreizniet | D = 6MM | 5 | 51111908077 | $0.30 | Shop at ECS Tuning | ||||
| Für Fahrzeuge mit Ablagenpaket |
S493A=Ja |
|||||||||
| 07 | Gepäckraumbodennetz | 1 | 51472754568 | $57.47 | Shop at ECS Tuning | |||||
| 08 | Gepäckraumnetz seitlich | 2 | 51472754569 | $47.88 | Shop at ECS Tuning | |||||
| 09 | Gummipuffer | 2 | 51462755332 | $3.32 | Shop at ECS Tuning | |||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW MINI R56 Cooper Verkleidung Gepäckraumboden?
- This technical diagram illustrates the Verkleidung Gepäckraumboden within the Fahrzeugausstattung group for the MINI R56 Cooper produced during 2007. It provides a detailed exploded view of the components, identifying key parts such as the Verkleidung Gepäckraumboden (Part #51477138452).
- Which models use the hardware listed in this Verkleidung Gepäckraumboden?
- The hardware and components featured in the Verkleidung Gepäckraumboden are specific to the MINI R56 Cooper produced during 2007. These technical specifications ensure that parts like the Verkleidung Gepäckraumboden (51477138452) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Verkleidung Gepäckraumboden assembly?
- Each item in the Verkleidung Gepäckraumboden corresponds to the numbered list below the illustration. For the MINI R56 Cooper, you can identify the Verkleidung Gepäckraumboden by locating its position on the schematic, which then links to the official BMW part number 51477138452 for the Fahrzeugausstattung section.
