Verkleidung Zierelemente vorn for BMW MINI R56 Cooper (2007)

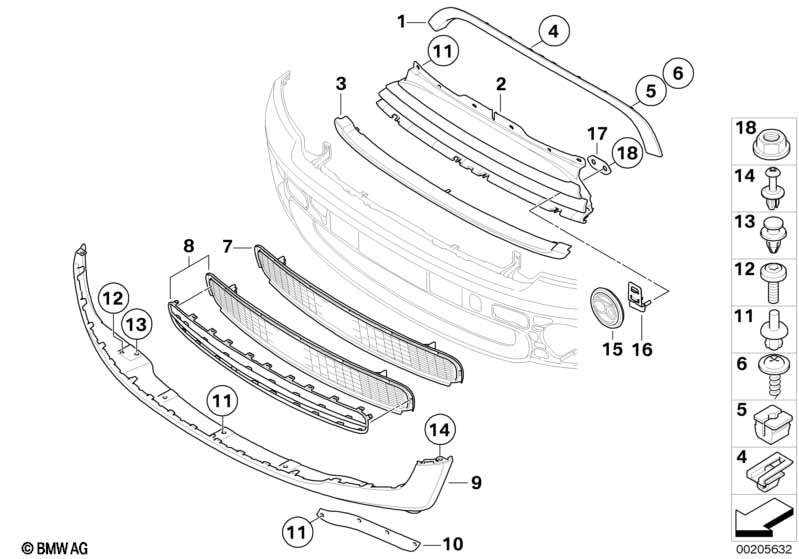

This Verkleidung Zierelemente vorn technical drawing provides a detailed breakdown of the assembly for the MINI R56 Cooper. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2007.
| Nr. | Beschreibung | Erläuterungen | Anzahl | Von | Bis | Teilenummer | Preis | Ergänzungen | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Für Fahrzeuge mit Aerodynamikpaket |
S7ARA=Nein |
||||||||
| 01 | Zierleiste Frontklappe | CHROM | 1 | 08/2010 | 51137149957 | $48.57 | Entfallen | Shop at ECS Tuning | ||
| 02 | Ziergitter Front | CHROM | 1 | 08/2010 | 51112752363 | $208.46 | Shop at ECS Tuning | |||
| 02 | Ziergitter Front grundiert | 1 | 08/2010 | 51117046364 | Shop at ECS Tuning | |||||
| Für Fahrzeuge mit MINI 50 Mayfair oder MINI 50 Camden |
P7HAA=Ja P7HBA=Ja |
|||||||||
| 02 | Ziergitter Front | CHROM | 1 | 08/2010 | 51117229333 | Shop at ECS Tuning | ||||
| 03 | Blende Ziergitter Front | CHROM | 1 | 08/2010 | 51112751623 | $26.99 | Shop at ECS Tuning | |||
| 04 | Clip | 6 | 08/2010 | 51132754667 | $0.33 | Shop at ECS Tuning | ||||
| 05 | Mutter | 4 | 08/2010 | 51132754668 | $0.65 | Shop at ECS Tuning | ||||
| 06 | Linsenblechschraube | ST4,2X12MM | 4 | 08/2010 | 07149128048 | $0.36 | Shop at ECS Tuning | |||
| 07 | Ziergitter unten | 1 | 08/2010 | 51112751285 | $62.55 | Shop at ECS Tuning | ||||
| Für Fahrzeuge mit Chrome Line Exterieur |
S346A=Ja |
|||||||||
| 08 | Ziergitter unten | 1 | 08/2010 | 51112755463 | $62.55 | Shop at ECS Tuning | ||||
| 09 | Spoiler Mitte | 1 | 08/2010 | 51112756495 | $68.82 | Shop at ECS Tuning | ||||
| 10 | Staulippe links | 1 | 08/2010 | 51112755333 | $9.46 | Shop at ECS Tuning | ||||
| 10 | Staulippe rechts | 1 | 08/2010 | 51112755334 | $9.46 | Shop at ECS Tuning | ||||
| 11 | Spreizniet | D = 8MM | 10 | 08/2010 | 51471911992 | $0.40 | Shop at ECS Tuning | |||
| 12 | PT-Schraube | M5X16 | 4 | 08/2010 | 51642752568 | $0.86 | Shop at ECS Tuning | |||
| 13 | Spreizniet | 4 | 08/2010 | 07130702966 | $0.48 | Shop at ECS Tuning | ||||
| 14 | Spreizniet | 2 | 08/2010 | 51472754477 | $1.12 | Shop at ECS Tuning | ||||
| Für Fahrzeuge mit MINI 50 Mayfair oder MINI 50 Camden |
P7HAA=Ja P7HBA=Ja |
|||||||||
| 15 | Plakette | 50 | 1 | 08/2010 | 51147238085 | $31.33 | Shop at ECS Tuning | |||
| 16 | Halter | 1 | 08/2010 | 51147248880 | $12.70 | Shop at ECS Tuning | ||||
| 17 | Sicherung | 1 | 08/2010 | 51147248882 | $5.35 | Shop at ECS Tuning | ||||
| 18 | Sechskantmutter mit Scheibe | AM6-8-ZNNIV SI | 2 | 08/2010 | 07129904553 | $0.64 | Shop at ECS Tuning | |||
Ergänzungen
- Entfallen = nicht mehr lieferbar.
See Also
Frequently Asked Questions
- What assembly is shown in the BMW MINI R56 Cooper Verkleidung Zierelemente vorn?
- This technical diagram illustrates the Verkleidung Zierelemente vorn within the Fahrzeugausstattung group for the MINI R56 Cooper produced during 2007. It provides a detailed exploded view of the components, identifying key parts such as the Zierleiste Frontklappe (Part #51137149957).
- Which models use the hardware listed in this Verkleidung Zierelemente vorn?
- The hardware and components featured in the Verkleidung Zierelemente vorn are specific to the MINI R56 Cooper produced during 2007. These technical specifications ensure that parts like the Zierleiste Frontklappe (51137149957) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Verkleidung Zierelemente vorn assembly?
- Each item in the Verkleidung Zierelemente vorn corresponds to the numbered list below the illustration. For the MINI R56 Cooper, you can identify the Zierleiste Frontklappe by locating its position on the schematic, which then links to the official BMW part number 51137149957 for the Fahrzeugausstattung section.
