Mittelkonsole for BMW MINI R56 Cooper (2007)

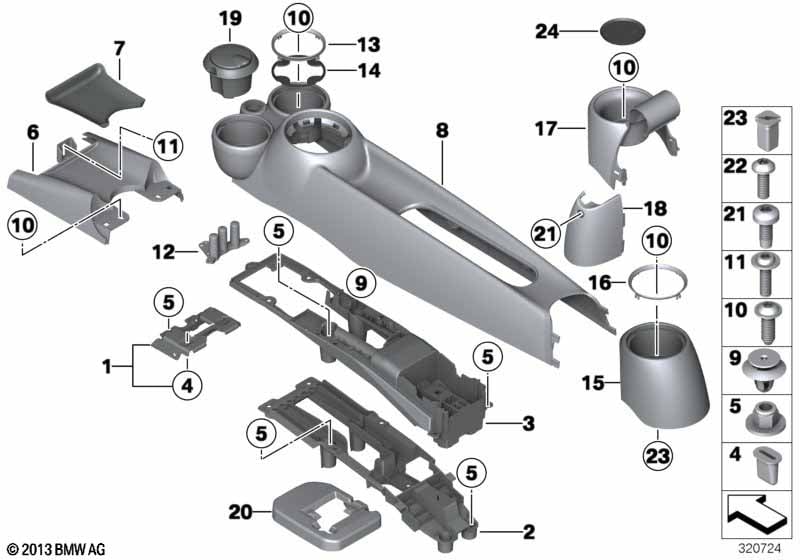

This Mittelkonsole technical drawing provides a detailed breakdown of the assembly for the MINI R56 Cooper. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2007.
| Nr. | Beschreibung | Erläuterungen | Anzahl | Von | Bis | Teilenummer | Preis | Ergänzungen | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Halter Handbremskonsole | 1 | 51169183593 | $9.46 | Shop at ECS Tuning | |||||
| Für Fahrzeuge mit Armlehne vorne |
S473A=Nein |
|||||||||
| 02 | Halter Handbremskonsole hinten | 1 | 51162752947 | $11.40 | Shop at ECS Tuning | |||||
| Für Fahrzeuge mit Armlehne vorne |
S473A=Ja |
|||||||||
| 03 | Halter Handbremskonsole hinten | 1 | 51169185223 | $19.14 | Shop at ECS Tuning | |||||
| 04 | Einsteckmutter | 2 | 51169180326 | $0.87 | Shop at ECS Tuning | |||||
| nur in Verbindung mit | ||||||||||
| -- | Schraube thermoplastische Kunststoffe | M5X20MM ZNFE SW | 2 | 51162755697 | $0.41 | Shop at ECS Tuning | ||||
| 05 | Sechskantmutter | 6 | 07129906887 | $0.56 | Shop at ECS Tuning | |||||
| 05 | Sechskantmutter selbstsichernd | M6 | 6 | 64509123157 | $0.70 | Shop at ECS Tuning | ||||
| 06 | Verkleidung Mittelkonsole vorn | CARBON BLACK | 1 | 07/2012 | 51162757006 | $29.52 | Shop at ECS Tuning | |||
| Für Fahrzeuge mit Armlehne vorne und Navigationssystem Business und Navigationssystem Professional und Radio MINI Visual Boost |
S473A=Ja S606A=Ja S609A=Nein S6FPA=Nein |
|||||||||
| 08 | Handbremskonsole | 1 | 51162756157 | $62.14 | Shop at ECS Tuning | |||||
| Für Fahrzeuge mit Armlehne vorne und Navigationssystem Business und Navigationssystem Professional und Radio MINI Visual Boost |
S473A=Ja S606A=Nein S609A=Ja S6FPA=Nein |
|||||||||
| 08 | Handbremskonsole | 1 | 51162756157 | $62.14 | Shop at ECS Tuning | |||||
| Für Fahrzeuge mit Armlehne vorne und Navigationssystem Business und Navigationssystem Professional und Radio MINI Visual Boost |
S473A=Ja S606A=Nein S609A=Nein S6FPA=Ja |
|||||||||
| 08 | Handbremskonsole | 1 | 51162756157 | $62.14 | Shop at ECS Tuning | |||||
| Für Fahrzeuge mit Armlehne vorne und Navigationssystem Business und Navigationssystem Professional und Radio MINI Visual Boost |
S473A=Ja S606A=Nein S609A=Nein S6FPA=Nein |
|||||||||
| 08 | Handbremskonsole | 1 | 51162756156 | $62.14 | Shop at ECS Tuning | |||||
| Für Fahrzeuge mit Armlehne vorne und Navigationssystem Business und Navigationssystem Professional und Radio MINI Visual Boost |
S473A=Nein S606A=Ja S609A=Nein S6FPA=Nein |
|||||||||
| 08 | Handbremskonsole | 1 | 51162756157 | $62.14 | Shop at ECS Tuning | |||||
| nur in Verbindung mit | ||||||||||
| -- | Zierring Getränkehalter links vorn | CARBON BLACK | 1 | 51162756163 | $11.87 | Shop at ECS Tuning | ||||
| -- | Getränkehalter Handbremskonsole hinten | 1 | 51162756167 | $12.82 | Shop at ECS Tuning | |||||
| Für Fahrzeuge mit Armlehne vorne und Navigationssystem Business und Navigationssystem Professional und Radio MINI Visual Boost |
S473A=Nein S606A=Nein S609A=Ja S6FPA=Nein |
|||||||||
| 08 | Handbremskonsole | 1 | 51162756157 | $62.14 | Shop at ECS Tuning | |||||
| nur in Verbindung mit | ||||||||||
| -- | Zierring Getränkehalter links vorn | CARBON BLACK | 1 | 51162756163 | $11.87 | Shop at ECS Tuning | ||||
| -- | Getränkehalter Handbremskonsole hinten | 1 | 51162756167 | $12.82 | Shop at ECS Tuning | |||||
| Für Fahrzeuge mit Armlehne vorne und Navigationssystem Business und Navigationssystem Professional und Radio MINI Visual Boost |
S473A=Nein S606A=Nein S609A=Nein S6FPA=Ja |
|||||||||
| 08 | Handbremskonsole | 1 | 51162756157 | $62.14 | Shop at ECS Tuning | |||||
| nur in Verbindung mit | ||||||||||
| -- | Zierring Getränkehalter links vorn | CARBON BLACK | 1 | 51162756163 | $11.87 | Shop at ECS Tuning | ||||
| -- | Getränkehalter Handbremskonsole hinten | 1 | 51162756167 | $12.82 | Shop at ECS Tuning | |||||
| Für Fahrzeuge mit Armlehne vorne und Navigationssystem Business und Navigationssystem Professional und Radio MINI Visual Boost |
S473A=Nein S606A=Nein S609A=Nein S6FPA=Nein |
|||||||||
| 08 | Handbremskonsole | 1 | 51162756156 | $62.14 | Shop at ECS Tuning | |||||
| nur in Verbindung mit | ||||||||||
| -- | Zierring Getränkehalter links vorn | CARBON BLACK | 1 | 51162756163 | $11.87 | Shop at ECS Tuning | ||||
| -- | Getränkehalter Handbremskonsole hinten | 1 | 51162756167 | $12.82 | Shop at ECS Tuning | |||||
| 09 | Clip | 4 | 07131481910 | $0.26 | Shop at ECS Tuning | |||||
| 10 | Schraube thermoplastische Kunststoffe | M5X20MM ZNFE SW | 3 | 51162755697 | $0.41 | Shop at ECS Tuning | ||||
| 11 | Torxschraube selbstschneidend | 6X16 | 1 | 51162755932 | $0.66 | Shop at ECS Tuning | ||||
| 11 | Torxschraube mit Bund | 6X20 | 1 | 51452756345 | $0.57 | Shop at ECS Tuning | ||||
| Für Fahrzeuge mit Auto Start Stop Funktion und Dynamische-Stabilitäts-Control und Automatische-Stabilitäts-Control (ASC+T) und Sport Button |
S1CCA=Nein S210A=Nein S214A=Nein S4UFA=Nein |
|||||||||
| 12 | Attrappe Schalterblock | 1 | 61302754704 | $3.27 | Shop at ECS Tuning | |||||
| Für Fahrzeuge mit Chrome Line Interieur |
S345A=Ja |
|||||||||
| 13 | Zierring Chrom Getränkehalter vorn | CHROM | 2 | 51162756166 | $10.79 | Shop at ECS Tuning | ||||
| Für Fahrzeuge mit Chrome Line Interieur und Erweiterte Dekorumfänge |
S345A=Nein S4AUA=Ja |
|||||||||
| 13 | Zierring Getränkehalter links vorn | SILVER | 2 | 51162756165 | $12.05 | Shop at ECS Tuning | ||||
| Für Fahrzeuge mit Chrome Line Interieur und Erweiterte Dekorumfänge |
S345A=Nein S4AUA=Nein |
|||||||||
| 13 | Zierring Getränkehalter links vorn | CARBON BLACK | 2 | 51162756163 | $11.87 | Shop at ECS Tuning | ||||
| 14 | Einsatz Getränkehalter | 2 | 51162756159 | $4.65 | Shop at ECS Tuning | |||||
| Für Fahrzeuge mit Armlehne vorne |
S473A=Nein |
|||||||||
| 15 | Getränkehalter Handbremskonsole hinten | 1 | 51162756167 | $12.82 | Shop at ECS Tuning | |||||
| Für Fahrzeuge mit Erweiterte Dekorumfänge und Armlehne vorne |
S4AUA=Nein S473A=Nein |
|||||||||
| 16 | Zierring Getränkehalter hinten | CARBON BLACK | 1 | 51162756169 | $11.03 | Shop at ECS Tuning | ||||
| Für Fahrzeuge mit Chrome Line Interieur und Erweiterte Dekorumfänge und Armlehne vorne |
S345A=Nein S4AUA=Ja S473A=Nein |
|||||||||
| 16 | Zierring Getränkehalter hinten | SILVER | 1 | 51162756171 | $11.03 | Shop at ECS Tuning | ||||
| Für Fahrzeuge mit Chrome Line Interieur und Erweiterte Dekorumfänge und Armlehne vorne |
S345A=Ja S4AUA=Ja S473A=Nein |
|||||||||
| 16 | Zierring Getränkehalter hinten | CHROME | 1 | 51162756172 | $10.12 | Shop at ECS Tuning | ||||
| Für Fahrzeuge mit Armlehne vorne |
S473A=Ja |
|||||||||
| 17 | Getränkehalter Handbremskonsole hinten | CARBON BLACK | 1 | 51169194039 | $16.13 | Shop at ECS Tuning | ||||
| 18 | Abdeckung Mittelarmlehne links | CARBON BLACK | 1 | 09/2008 | 51169185111 | Shop at ECS Tuning | ||||
| nur in Verbindung mit | ||||||||||
| -- | Mittelarmlehne Dekor silber vorne | CARBON BLACK | 1 | 09/2008 | 51169185114 | $126.89 | Shop at ECS Tuning | |||
| 18 | Abdeckung Mittelarmlehne rechts | CARBON BLACK | 1 | 09/2008 | 51169185112 | Shop at ECS Tuning | ||||
| nur in Verbindung mit | ||||||||||
| -- | Mittelarmlehne Dekor silber vorne | CARBON BLACK | 1 | 09/2008 | 51169185114 | $126.89 | Shop at ECS Tuning | |||
| Für Fahrzeuge mit Raucherpaket |
S441A=Ja |
|||||||||
| 19 | Ascher | CARBON BLACK | 1 | 51162756336 | $20.22 | Shop at ECS Tuning | ||||
| Für Fahrzeuge mit Armlehne vorne |
S473A=Ja |
|||||||||
| 20 | Füllstück | MRSZ4 | 1 | 51472754964 | $8.30 | Shop at ECS Tuning | ||||
| 21 | Linsenschraube | DG5X12 ZNFE SW | 2 | 07146959889 | $0.36 | Shop at ECS Tuning | ||||
| Für Fahrzeuge mit Auto Start Stop Funktion und Dynamische-Stabilitäts-Control und Automatische-Stabilitäts-Control (ASC+T) und Sport Button |
S1CCA=Nein S210A=Nein S214A=Nein S4UFA=Nein |
|||||||||
| 22 | Linsenschraube | ISA 4X12 | 3 | 07147135132 | $0.16 | Shop at ECS Tuning | ||||
| 23 | Spreizmutter | 1 | 07130657024 | $0.25 | Shop at ECS Tuning | |||||
| 24 | Einlegematte Getränkehalter | 2 | 51169305790 | Shop at ECS Tuning | ||||||
