Armauflage Mittelkonsole for BMW MINI R56 Cooper (2007)

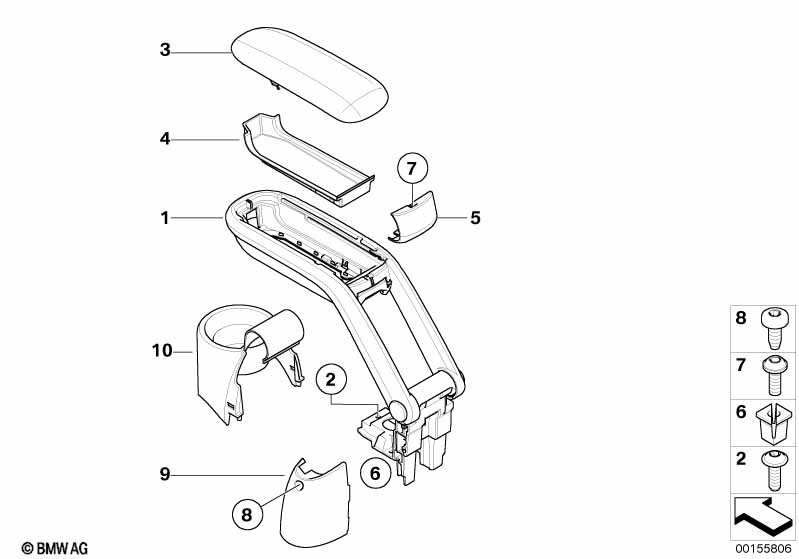

This Armauflage Mittelkonsole technical drawing provides a detailed breakdown of the assembly for the MINI R56 Cooper. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2007.
| Nr. | Beschreibung | Erläuterungen | Anzahl | Von | Bis | Teilenummer | Preis | Ergänzungen | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Für Fahrzeuge mit Armlehne vorne |
S473A=Ja |
||||||||
| 01 | Mittelarmlehne Dekor silber vorne | CARBON BLACK | 1 | 08/2010 | 51169185114 | $126.89 | Shop at ECS Tuning | |||
| 02 | Linsenschraube | PT6X18 | 5 | 07146959826 | $0.62 | Shop at ECS Tuning | ||||
| 03 | Armauflage Mittelkonsole Kunstleder | SCHWARZ | 1 | 51162753341 | $58.66 | Shop at ECS Tuning | ||||
| 04 | Ablageschale Mittelarmlehne | 1 | 51166954280 | $5.40 | Shop at ECS Tuning | |||||
| 05 | Abdeckung Mittelarmlehne | CARBON BLACK | 1 | 51162756045 | $5.59 | Shop at ECS Tuning | ||||
| 06 | Spreizmutter | 3 | 07130657024 | $0.25 | Shop at ECS Tuning | |||||
| 07 | Linsenschraube | PT2,1X9 | 1 | 07140393431 | $0.16 | Shop at ECS Tuning | ||||
| 08 | Linsenschraube | DG5X12 ZNFE SW | 2 | 07146959889 | $0.36 | Shop at ECS Tuning | ||||
| 09 | Abdeckung Mittelarmlehne links | CARBON BLACK | 1 | 09/2008 | 51169185111 | Shop at ECS Tuning | ||||
| nur in Verbindung mit | ||||||||||
| -- | Mittelarmlehne Dekor silber vorne | CARBON BLACK | 1 | 09/2008 | 51169185114 | $126.89 | Shop at ECS Tuning | |||
| 09 | Abdeckung Mittelarmlehne rechts | CARBON BLACK | 1 | 09/2008 | 51169185112 | Shop at ECS Tuning | ||||
| nur in Verbindung mit | ||||||||||
| -- | Mittelarmlehne Dekor silber vorne | CARBON BLACK | 1 | 09/2008 | 51169185114 | $126.89 | Shop at ECS Tuning | |||
| 10 | Getränkehalter Handbremskonsole hinten | CARBON BLACK | 1 | 51169194039 | $16.13 | Shop at ECS Tuning | ||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW MINI R56 Cooper Armauflage Mittelkonsole?
- This technical diagram illustrates the Armauflage Mittelkonsole within the Fahrzeugausstattung group for the MINI R56 Cooper produced during 2007. It provides a detailed exploded view of the components, identifying key parts such as the Mittelarmlehne Dekor silber vorne (Part #51169185114).
- Which models use the hardware listed in this Armauflage Mittelkonsole?
- The hardware and components featured in the Armauflage Mittelkonsole are specific to the MINI R56 Cooper produced during 2007. These technical specifications ensure that parts like the Mittelarmlehne Dekor silber vorne (51169185114) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Armauflage Mittelkonsole assembly?
- Each item in the Armauflage Mittelkonsole corresponds to the numbered list below the illustration. For the MINI R56 Cooper, you can identify the Mittelarmlehne Dekor silber vorne by locating its position on the schematic, which then links to the official BMW part number 51169185114 for the Fahrzeugausstattung section.
