Anbauteile Instrumententafel unten for BMW MINI R56 Cooper (2007)

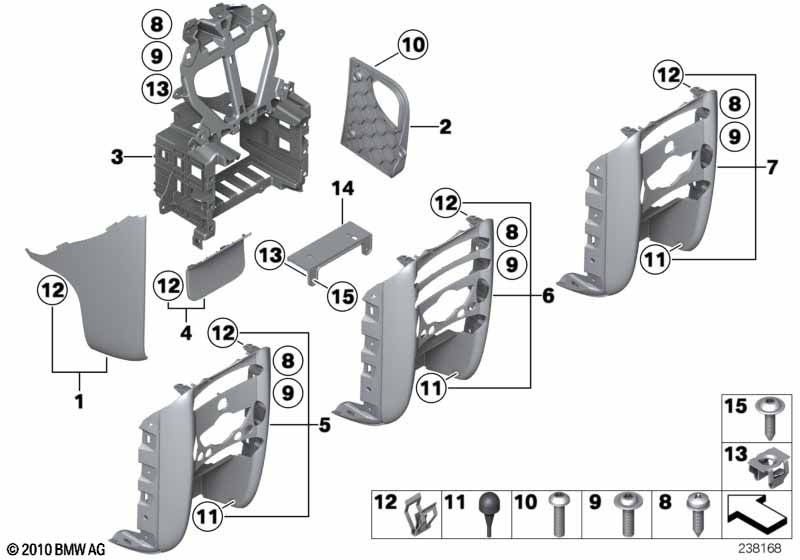

This Anbauteile Instrumententafel unten technical drawing provides a detailed breakdown of the assembly for the MINI R56 Cooper. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2007.
| Nr. | Beschreibung | Erläuterungen | Anzahl | Von | Bis | Teilenummer | Preis | Ergänzungen | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Verkleidung Mittelkonsole links | 1 | 51452752773 | $29.52 | Shop at ECS Tuning | |||||
| 01 | Verkleidung Mittelkonsole rechts | 1 | 51452752774 | $29.52 | Shop at ECS Tuning | |||||
| 02 | Abdeckung rechts | 1 | 51459248860 | Shop at ECS Tuning | ||||||
| 03 | Funktionsträger Mittelkonsole | 1 | 08/2010 | 51452752777 | $93.68 | Entfallen | Shop at ECS Tuning | |||
| 04 | Heizungsabdeckung Mittelkonsole unten | 1 | 51452752909 | $6.46 | Shop at ECS Tuning | |||||
| Für Fahrzeuge mit Klimaautomatik und Navigationssystem Professional |
S534A=Ja S609A=Nein |
|||||||||
| 05 | Blende Mittelkonsole | 1 | 03/2008 | 51162752899 | $49.63 | Shop at ECS Tuning | ||||
| Für Fahrzeuge mit Klimaautomatik und Navigationssystem Professional |
S534A=Ja S609A=Ja |
|||||||||
| 06 | Blende Mittelkonsole | 1 | 03/2008 | 51162752900 | $49.63 | +Pfand | Shop at ECS Tuning | |||
| Für Fahrzeuge mit Klimaautomatik oder Navigationssystem Professional |
S534A=Nein S609A=Nein |
|||||||||
| 07 | Blende Mittelkonsole | 1 | 03/2008 | 51162754160 | $49.63 | Shop at ECS Tuning | ||||
| 08 | Linsenblechschraube | ST4,2X16-U1- SW | 10 | 07119903793 | $0.38 | Shop at ECS Tuning | ||||
| 09 | Torxschraube mit Bund | 6X20 | 4 | 51452756345 | $0.57 | Shop at ECS Tuning | ||||
| 10 | Schraube | 4X16 | 3 | 07129907551 | Shop at ECS Tuning | |||||
| 11 | Gummipuffer | 2 | 51162756333 | $0.81 | Shop at ECS Tuning | |||||
| 12 | Clip | 8 | 51162756334 | $1.48 | Shop at ECS Tuning | |||||
| 13 | Clip | 2 | 51452756285 | $0.35 | Shop at ECS Tuning | |||||
Ergänzungen
- Entfallen = nicht mehr lieferbar.
- +Pfand = plus Altteilepfand (Möglicherweise muss das Altteil im Austausch abgegeben werden)
