Verschlussdeckel/Verschlussstopfen for BMW MINI R56 Cooper (2007)

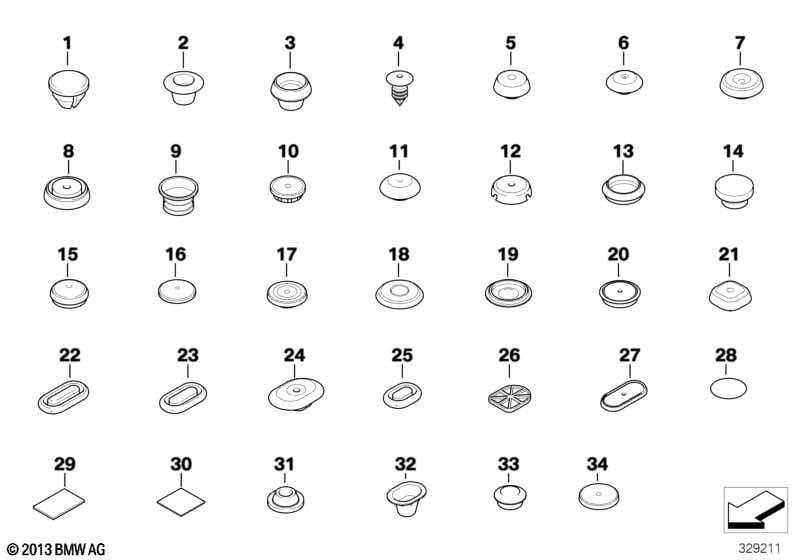

This Verschlussdeckel/Verschlussstopfen technical drawing provides a detailed breakdown of the assembly for the MINI R56 Cooper. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2007.
| Nr. | Beschreibung | Erläuterungen | Anzahl | Von | Bis | Teilenummer | Preis | Ergänzungen | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | D = Lochkreisdurchmesser in der Karosserie |
|||||||||
| 01 | Verschlussstopfen | D=6MM | 4 | 51711904603 | $0.32 | Shop at ECS Tuning | ||||
| Für Fahrzeuge mit Glasdach elektrisch |
S403A=Nein |
|||||||||
| 02 | Stopfen | 2 | 51717190553 | $0.55 | Shop at ECS Tuning | |||||
| 03 | Verschlussstopfen | D=9,70MM | 4 | 51718235734 | $0.32 | Shop at ECS Tuning | ||||
| 04 | Verschlussstopfen | D=10,10MM | 8 | 51717056053 | $0.47 | Shop at ECS Tuning | ||||
| 05 | Verschlussstopfen | D=12MM | 23 | 07147127539 | $0.26 | Shop at ECS Tuning | ||||
| 06 | Verschlussstopfen | D=12MM | 9 | 07147131129 | $0.49 | Shop at ECS Tuning | ||||
| 07 | Verschlussstopfen | D=15MM | 12 | 07147127540 | $0.26 | Shop at ECS Tuning | ||||
| 08 | Verschlussstopfen | D=18MM | 12 | 07130687653 | $0.45 | Shop at ECS Tuning | ||||
| 09 | Verschlussstopfen | D=18MM | 6 | 51718222691 | $0.32 | Shop at ECS Tuning | ||||
| 10 | Lackstopfen mit Schmelzklebering | D=20MM | 2 | 07/2023 | 41007140848 | $0.43 | Shop at ECS Tuning | |||
| 10 | Lackstopfen | D=20MM | 2 | 51915A0C2C2 | Shop at ECS Tuning | |||||
| 11 | Verschlussstopfen | D=20MM | 42 | 07147140850 | $0.19 | Shop at ECS Tuning | ||||
| 12 | Verschlussstopfen | D=20MM | 2 | 06/2008 | 51718174490 | $0.56 | Shop at ECS Tuning | |||
| 13 | Verschlussstopfen | D=25MM | 10 | 51717175886 | $0.63 | Shop at ECS Tuning | ||||
| 13 | Verschlussstopfen | D=25MM | 3 | 51718126605 | $0.39 | Shop at ECS Tuning | ||||
| 14 | Lackstopfen mit Schmelzklebering | D=25MM | 8 | 07/2023 | 07147180506 | $0.41 | Shop at ECS Tuning | |||
| 14 | Lackstopfen | D=25MM | 8 | 51915A0C2C3 | Shop at ECS Tuning | |||||
| 15 | Verschlussstopfen | D=30MM | 8 | 51718168260 | $0.50 | Shop at ECS Tuning | ||||
| 16 | Verschlussstopfen | D=35MM | 3 | 07147140849 | $0.73 | Shop at ECS Tuning | ||||
| 17 | Verschlussstopfen | D=40MM | 2 | 51712258519 | $0.89 | Shop at ECS Tuning | ||||
| 19 | Verschlussstopfen | D=53MM | 2 | 07130588736 | $0.66 | Entfallen | Shop at ECS Tuning | |||
| 20 | Verschlussstopfen | D=55MM | 2 | 61138353500 | $1.12 | Shop at ECS Tuning | ||||
| 21 | Verschlussstopfen | 7X7MM | 2 | 51717173469 | $0.47 | Shop at ECS Tuning | ||||
| 22 | Verschlussstopfen | 12X18MM | 26 | 51710588793 | $0.79 | Shop at ECS Tuning | ||||
| 23 | Verschlussstopfen | 18X24MM | 7 | 51710588794 | $0.85 | Shop at ECS Tuning | ||||
| 25 | Verschlussstopfen | 25X30MM | 10 | 07149193300 | $0.59 | Shop at ECS Tuning | ||||
| 26 | Verschlussstopfen | 42X41,5MM | 1 | 51711507300 | $2.56 | Shop at ECS Tuning | ||||
| 27 | Verschlussstopfen | 50X90MM | 6 | 51717036152 | $2.56 | Shop at ECS Tuning | ||||
| 28 | Abdichtfolie | PUR, D=30MM | 3 | 51711922189 | $0.82 | Shop at ECS Tuning | ||||
| 28 | Dicht- und Dämmunterlage | D=39,5 / GRAU | X | 51719479250 | Entfallen | Shop at ECS Tuning | ||||
| 28 | Dicht- und Dämmunterlage | D=39,5 /SCHWARZ | X | 07147392446 | Shop at ECS Tuning | |||||
| 29 | Abdichtung | 40X30MM | 8 | 09/2024 | 51718241617 | $0.98 | Shop at ECS Tuning | |||
| 29 | Abdichtfolie | 50X50 | 8 | 09/2024 | 07149304034 | Shop at ECS Tuning | ||||
| 29 | Abdichtung | 50X110 | 8 | 07149304035 | Shop at ECS Tuning | |||||
| 30 | Klebeband wärmehaftend | 40X40MM | 8 | 51717159180 | $0.73 | Entfallen | Shop at ECS Tuning | |||
| Für Fahrzeuge mit Glasdach elektrisch |
S403A=Ja |
|||||||||
| 31 | Dichttülle | D=20MM | 2 | 51717036220 | $1.87 | Shop at ECS Tuning | ||||
Ergänzungen
- Entfallen = nicht mehr lieferbar.
