Unterbodenverkleidung for BMW MINI R56 Cooper (2007)

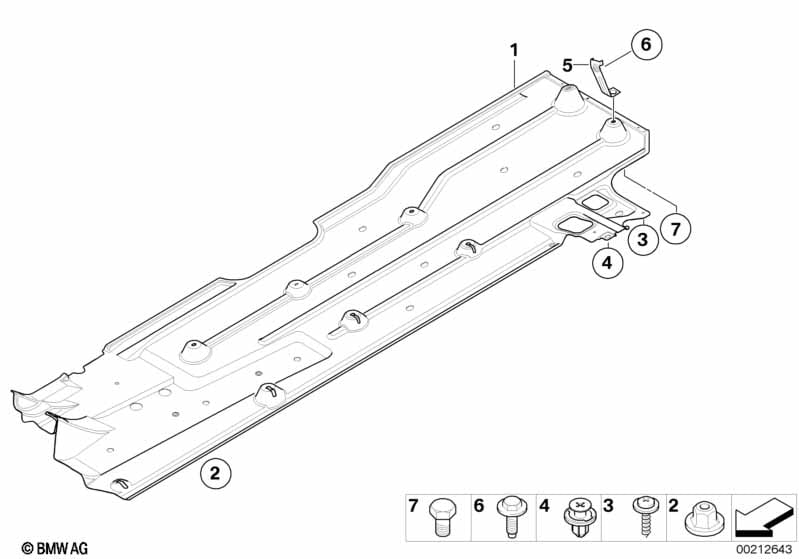

This Unterbodenverkleidung technical drawing provides a detailed breakdown of the assembly for the MINI R56 Cooper. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2007.
| Nr. | Beschreibung | Erläuterungen | Anzahl | Von | Bis | Teilenummer | Preis | Ergänzungen | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Unterbodenverkleidung links | 1 | 03/2013 | 51752753163 | $61.57 | Entfallen | Shop at ECS Tuning | |||
| 01 | Unterbodenverkleidung rechts | 1 | 03/2013 | 51752753164 | $61.57 | Entfallen | Shop at ECS Tuning | |||
| 02 | Kunststoffhutmutter mit Scheibe | D=18MM | 20 | 08/2013 | 51161943122 | $0.39 | Shop at ECS Tuning | |||
| 02 | Kunststoffmutter Grobgewindebolzen | M6 | 20 | 07147336362 | Shop at ECS Tuning | |||||
| 03 | Linsenschraube | L=18MM | 2 | 07147146367 | $0.29 | Shop at ECS Tuning | ||||
| 04 | Spreizniet | 2 | 07130702966 | $0.48 | Shop at ECS Tuning | |||||
| 05 | Halter Unterbodenverkleidung links | 1 | 51752753165 | $5.35 | Shop at ECS Tuning | |||||
| 05 | Halter Unterbodenverkleidung rechts | 1 | 51752753166 | $5.35 | Shop at ECS Tuning | |||||
| 06 | Sechskantschraube mit Scheibe | M6X25 | 2 | 07147117693 | $1.09 | Shop at ECS Tuning | ||||
| 07 | Sechskantschraube mit Scheibe | M6X25-U2 | 2 | 07119905871 | $0.59 | Shop at ECS Tuning |
Ergänzungen
- Entfallen = nicht mehr lieferbar.
