Aerokit Verkleidung vorn for BMW MINI R56 Cooper (2007)

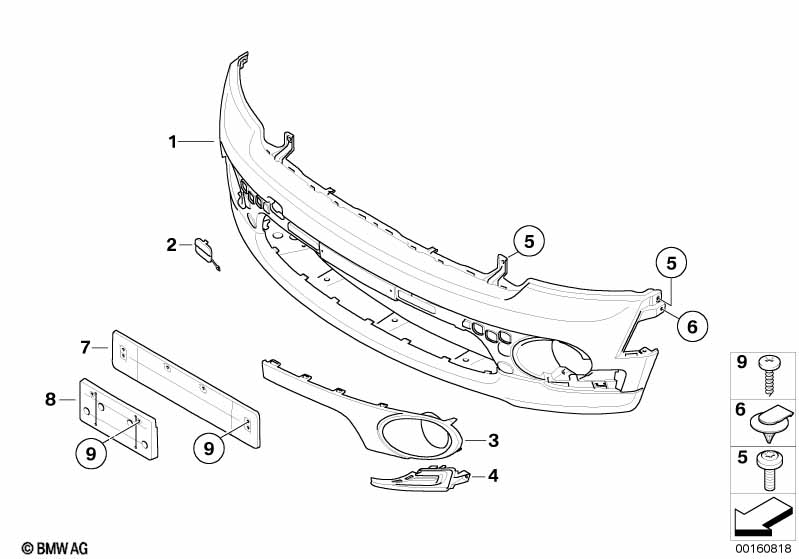

This Aerokit Verkleidung vorn technical drawing provides a detailed breakdown of the assembly for the MINI R56 Cooper. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2007.
| Nr. | Beschreibung | Erläuterungen | Anzahl | Von | Bis | Teilenummer | Preis | Ergänzungen | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Für Fahrzeuge mit Aerodynamikpaket |
S7ARA=Ja |
||||||||
| 01 | Verkleidung Stossfänger grundiert vorn | 1 | 51117199856 | $264.48 | Shop at ECS Tuning | |||||
| nur in Verbindung mit | ||||||||||
| -- | Satz Anbauteile Stossfänger vorn | VALUE PARTS | 1 | 51112411406 | Shop at ECS Tuning | |||||
| 02 | Blende Abschleppöse grundiert | 1 | 51117199873 | $7.77 | Shop at ECS Tuning | |||||
| 03 | Blende grundiert links | 1 | 51117199871 | $28.40 | +Pfand | Shop at ECS Tuning | ||||
| 03 | Blende grundiert rechts | 1 | 51117199872 | $28.40 | +Pfand | Shop at ECS Tuning | ||||
| 04 | Gitter links | 1 | 51117188605 | $20.86 | Shop at ECS Tuning | |||||
| 04 | Gitter rechts | 1 | 51117188606 | $20.86 | Shop at ECS Tuning | |||||
| 05 | PT-Schraube | M5X16 | X | 51642752568 | $0.86 | Shop at ECS Tuning | ||||
| 06 | Clip | 2 | 07132757821 | $0.75 | Shop at ECS Tuning | |||||
| 07 | Kennzeichenträger | 1 | 51132753979 | $17.58 | Entfallen | Shop at ECS Tuning | ||||
| Teil technisch nicht notwendig - entfällt ersatzlos |
||||||||||
| Für Fahrzeuge mit Steuerung Kennzeichenbefestigung |
S992A=Ja |
|||||||||
| 08 | Kennzeichenträger | 1 | 51132754743 | $16.98 | Entfallen | Shop at ECS Tuning | ||||
| 08 | Kennzeichenträger | 1 | 51132756510 | $17.58 | Shop at ECS Tuning | |||||
| 09 | Linsenblechschraube | ST4,8X16MM | 4 | 07142756133 | $0.29 | Shop at ECS Tuning | ||||
Ergänzungen
- +Pfand = plus Altteilepfand (Möglicherweise muss das Altteil im Austausch abgegeben werden)
- Entfallen = nicht mehr lieferbar.
