Aerokit Verkleidung hinten for BMW MINI R56 Cooper (2007)

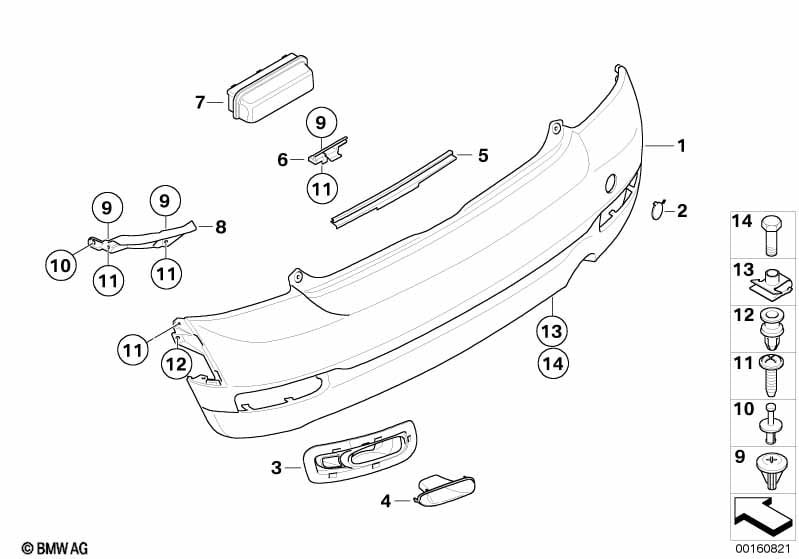

This Aerokit Verkleidung hinten technical drawing provides a detailed breakdown of the assembly for the MINI R56 Cooper. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2007.
| Nr. | Beschreibung | Erläuterungen | Anzahl | Von | Bis | Teilenummer | Preis | Ergänzungen | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Für Fahrzeuge mit Aerodynamikpaket |
S7ARA=Ja |
||||||||
| 01 | Verkleidung Stossfänger grundiert hinten | 1 | 08/2010 | 51127199877 | $304.68 | Shop at ECS Tuning | ||||
| nur in Verbindung mit | ||||||||||
| -- | Satz Anbauteile Stossfänger hinten | VALUE PARTS | 1 | 08/2010 | 51122411407 | Shop at ECS Tuning | ||||
| Achtung! Produktinformation beachten. "Nur-in-Verbindung-mit"-Teile verwenden. |
||||||||||
| 01 | Verkleidung Stossfänger grundiert hinten | PDC | 1 | 08/2010 | 51127201900 | $319.70 | Shop at ECS Tuning | |||
| nur in Verbindung mit | ||||||||||
| -- | Entkopplungsring PDC Wandler | 4 | 08/2010 | 66206923000 | $1.05 | Shop at ECS Tuning | ||||
| -- | Satz Anbauteile Stossfänger hinten | VALUE PARTS | 1 | 08/2010 | 51122411407 | Shop at ECS Tuning | ||||
| -- | Satz Blindblenden | GEN 4 | 1 | 08/2010 | 51125A3F536 | Shop at ECS Tuning | ||||
| -- | Aufkleber | NO PDC | 1 | 08/2010 | 01295A3BFA7 | Shop at ECS Tuning | ||||
| Für Fahrzeuge mit Park Distance Control hinten (PDC) |
S507A=Ja |
|||||||||
| 01 | Verkleidung Stossfänger grundiert hinten | PDC | 1 | 08/2010 | 51127201900 | $319.70 | Shop at ECS Tuning | |||
| nur in Verbindung mit | ||||||||||
| -- | Satz Anbauteile Stossfänger hinten | VALUE PARTS | 1 | 08/2010 | 51122411407 | Shop at ECS Tuning | ||||
| 02 | Blende Abschleppöse grundiert | 1 | 08/2010 | 51127199879 | $8.14 | Shop at ECS Tuning | ||||
| 03 | Gitter links | 1 | 08/2010 | 51127188619 | $36.50 | Shop at ECS Tuning | ||||
| 03 | Gitter rechts | 1 | 08/2010 | 51127188620 | $36.50 | Shop at ECS Tuning | ||||
| Für Fahrzeuge mit Park Distance Control hinten (PDC) |
S507A=Ja |
|||||||||
| 03 | Gitter links | PDC | 1 | 08/2010 | 51127199787 | $36.50 | Shop at ECS Tuning | |||
| 03 | Gitter rechts | PDC | 1 | 08/2010 | 51127199788 | $36.50 | Shop at ECS Tuning | |||
| 05 | Führungsschiene | 1 | 08/2010 | 51127127744 | $14.63 | Shop at ECS Tuning | ||||
| 06 | Halter Stossfänger | 1 | 08/2010 | 51127126172 | $10.05 | Shop at ECS Tuning | ||||
| 07 | Blende Heckentlüftung | 2 | 08/2010 | 64229242797 | Shop at ECS Tuning | |||||
| 07 | Heckentlüftung | 2 | 08/2010 | 64229242798 | Shop at ECS Tuning | |||||
| 08 | Abstützung links | 1 | 08/2010 | 51122751303 | $9.57 | Shop at ECS Tuning | ||||
| 08 | Abstützung rechts | 1 | 08/2010 | 51122751304 | $9.57 | Shop at ECS Tuning | ||||
| 09 | Spreizmutter | 10 | 08/2010 | 63252758031 | Shop at ECS Tuning | |||||
| 10 | Spreizniet | 10 | 08/2010 | 51472754477 | $1.12 | Shop at ECS Tuning | ||||
| 11 | Linsenschraube | L=18MM | 4 | 08/2010 | 07147146367 | $0.29 | Shop at ECS Tuning | |||
| 12 | Spreizniet | 1 | 08/2010 | 07130702966 | $0.48 | Shop at ECS Tuning | ||||
| 13 | C-Clip Mutter | M6 | 1 | 08/2010 | 07131502288 | $0.64 | Shop at ECS Tuning | |||
| 14 | Sechskantschraube | 1 | 08/2010 | 72128244969 | $0.79 | Shop at ECS Tuning | ||||
