Verkleidung Windlauf aussen for BMW MINI R56 Cooper (2007)

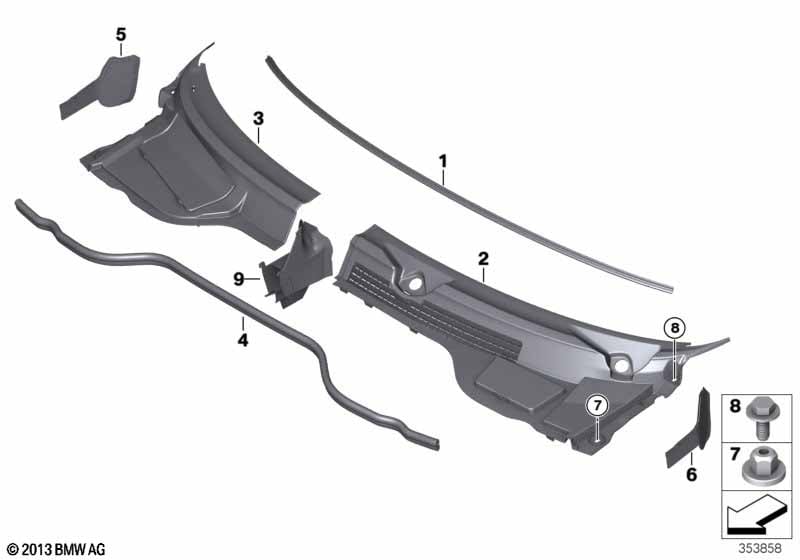

This Verkleidung Windlauf aussen technical drawing provides a detailed breakdown of the assembly for the MINI R56 Cooper. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2007.
| Nr. | Beschreibung | Erläuterungen | Anzahl | Von | Bis | Teilenummer | Preis | Ergänzungen | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Halteleiste Abdeckung Stirnwand | 1 | 51312756196 | $28.27 | Shop at ECS Tuning | |||||
| 02 | Abdeckung Windlauf links | 1 | 51132751209 | $38.12 | Shop at ECS Tuning | |||||
| 03 | Abdeckung Windlauf rechts | 1 | 51132751210 | $38.12 | Shop at ECS Tuning | |||||
| 04 | Abdichtung Windlauf | 1 | 51717148848 | $22.00 | Shop at ECS Tuning | |||||
| 05 | Steg rechts | 1 | 51132756405 | $7.93 | Shop at ECS Tuning | |||||
| 07 | Kunststoffhutmutter mit Scheibe | D=18MM | 2 | 08/2013 | 51161943122 | $0.39 | Shop at ECS Tuning | |||
| 07 | Kunststoffmutter Grobgewindebolzen | M6 | 2 | 07147336362 | Shop at ECS Tuning | |||||
| 08 | Sechskantschraube mit Scheibe | M6X20 | 2 | 07147151867 | $0.65 | Shop at ECS Tuning |
