Schliesssystem Tür vorn for BMW MINI R56 Cooper (2007)

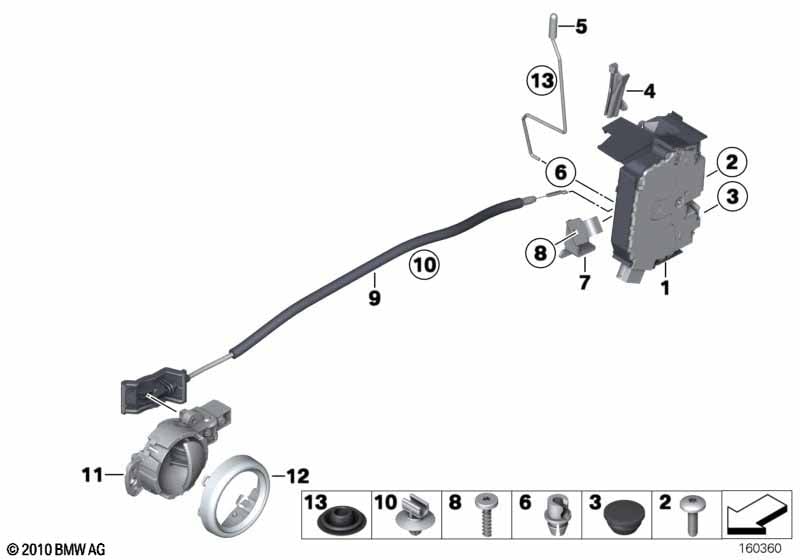

This Schliesssystem Tür vorn technical drawing provides a detailed breakdown of the assembly for the MINI R56 Cooper. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2007.
| Nr. | Beschreibung | Erläuterungen | Anzahl | Von | Bis | Teilenummer | Preis | Ergänzungen | ||
|---|---|---|---|---|---|---|---|---|---|---|
| nur passend zu Beifahrerseite | ||||||||||
| 01 | Drehfallenschloss rechts | 1 | 03/2009 | 51200556769 | $117.07 | Shop at ECS Tuning | ||||
| nur passend zu Fahrerseite | ||||||||||
| 01 | Drehfallenschloss links | 1 | 03/2009 | 51200556768 | $117.07 | Shop at ECS Tuning | ||||
| 02 | Schraube | 6 | 51212754815 | $0.56 | Shop at ECS Tuning | |||||
| 03 | Verschlussstopfen | D=12MM | 2 | 51718110199 | $0.18 | Shop at ECS Tuning | ||||
| 04 | Halter Bowdenzug | 2 | 51217040548 | $13.18 | Shop at ECS Tuning | |||||
| 05 | Betätigungsstange links | 1 | 51217148185 | $3.38 | Shop at ECS Tuning | |||||
| 05 | Betätigungsstange rechts | 1 | 51217148186 | $3.38 | Shop at ECS Tuning | |||||
| 06 | Clip | 2 | 51217116342 | $1.23 | Shop at ECS Tuning | |||||
| 07 | Halter Bowdenzug links | 1 | 51211499779 | $7.45 | Shop at ECS Tuning | |||||
| 07 | Halter Bowdenzug rechts | 1 | 51211499780 | $7.45 | Shop at ECS Tuning | |||||
| 08 | Torxschraube für Kunststoff | ISA L=20MM | 2 | 07146986087 | $0.25 | Entfallen | Shop at ECS Tuning | |||
| 09 | Bowdenzug Türöffner innen | 2 | 51212754525 | $13.30 | Shop at ECS Tuning | |||||
| 10 | Clip Bowdenzug | 4 | 01/2009 | 51217040546 | $0.35 | Shop at ECS Tuning | ||||
| 11 | Türöffner innen links | 1 | 51212753717 | $36.85 | Shop at ECS Tuning | |||||
| 11 | Türöffner innen rechts | 1 | 51212753718 | $36.85 | Shop at ECS Tuning | |||||
| Für Fahrzeuge mit Erweiterte Dekorumfänge |
S4AUA=Nein |
|||||||||
| 12 | Blende Türöffner schwarz innen links | CARBON BLACK | 1 | 51412753335 | $9.29 | Shop at ECS Tuning | ||||
| 12 | Blende Türöffner schwarz innen rechts | CARBON BLACK | 1 | 51412753336 | $9.29 | Shop at ECS Tuning | ||||
| Für Fahrzeuge mit Chrome Line Interieur und Erweiterte Dekorumfänge |
S345A=Nein S4AUA=Ja |
|||||||||
| 12 | Blende Türöffner silber innen links | 1 | 51412753337 | $9.13 | Shop at ECS Tuning | |||||
| 12 | Blende Türöffner silber innen rechts | 1 | 51412753338 | $9.13 | Shop at ECS Tuning | |||||
| Für Fahrzeuge mit Chrome Line Interieur und Erweiterte Dekorumfänge |
S345A=Ja S4AUA=Ja |
|||||||||
| 12 | Blende Türöffner Chrom innen links | 1 | 51412753339 | $9.63 | Shop at ECS Tuning | |||||
| 12 | Blende Türöffner Chrom innen rechts | 1 | 51412753340 | $9.63 | Shop at ECS Tuning | |||||
| 13 | Gummitülle | 2 | 51211499776 | $1.33 | Shop at ECS Tuning | |||||
Ergänzungen
- Entfallen = nicht mehr lieferbar.
