Schliesssystem Tür vorn for BMW MINI R56 Cooper (2007)

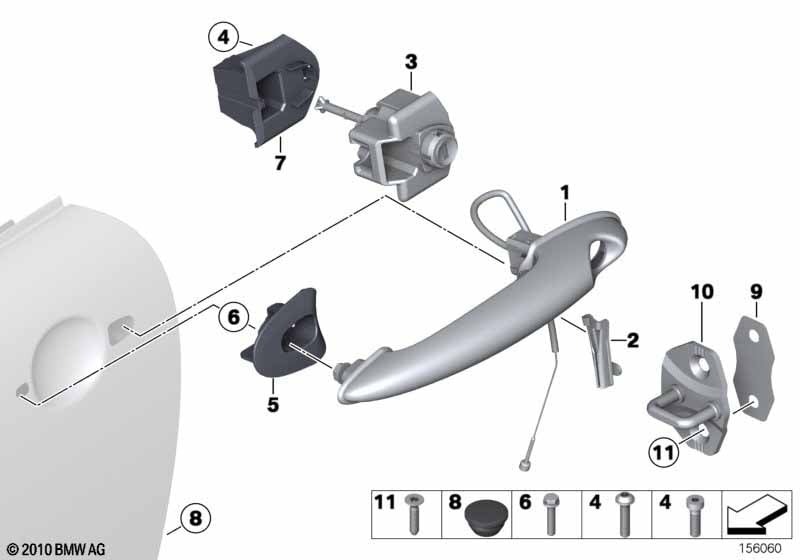

This Schliesssystem Tür vorn technical drawing provides a detailed breakdown of the assembly for the MINI R56 Cooper. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2007.
| Nr. | Beschreibung | Erläuterungen | Anzahl | Von | Bis | Teilenummer | Preis | Ergänzungen | ||
|---|---|---|---|---|---|---|---|---|---|---|
| nur passend zu Beifahrerseite | ||||||||||
| 01 | Griffbügel verchromt | 1 | 51217198472 | $48.25 | Shop at ECS Tuning | |||||
| nur passend zu Fahrerseite | ||||||||||
| 01 | Griffbügel verchromt | 1 | 51217198471 | $48.25 | Shop at ECS Tuning | |||||
| Für Fahrzeuge mit Komfortzugang nur passend zu Beifahrerseite |
S322A=Ja |
|||||||||
| 01 | Griffbügel verchromt | 1 | 51212752578 | $86.86 | Shop at ECS Tuning | |||||
| Für Fahrzeuge mit Komfortzugang nur passend zu Fahrerseite |
S322A=Ja |
|||||||||
| 01 | Griffbügel verchromt | 1 | 51212752577 | $86.86 | Shop at ECS Tuning | |||||
| 02 | Halter Bowdenzug | 2 | 51217040548 | $13.18 | Shop at ECS Tuning | |||||
| 03 | Verschluss mit Code | 1 | 51217074428 | $95.07 | Shop at ECS Tuning | |||||
| 03 | Verschluss mit Schlüssel | 1 | 51217074440 | $83.04 | Shop at ECS Tuning | |||||
| 04 | Schraube Innentorx | M5X16MM | 2 | 51211167094 | $0.47 | Shop at ECS Tuning | ||||
| 04 | Innensechskantschraube | 2 | 51217003125 | $4.73 | Shop at ECS Tuning | |||||
| 05 | Befestigungselement | 2 | 51217040550 | $2.43 | Shop at ECS Tuning | |||||
| 06 | Schraube | 2 | 51217037778 | $0.59 | Shop at ECS Tuning | |||||
| 07 | Befestigungselement | 2 | 51217040549 | $2.52 | Shop at ECS Tuning | |||||
| 08 | Verschlussstopfen | D=12MM | 2 | 51718110199 | $0.18 | Shop at ECS Tuning | ||||
| 09 | Dichtung Schliesskeil | 2 | 51217042375 | $0.92 | Shop at ECS Tuning | |||||
| 10 | Schliesskeil | 2 | 07/2009 | 51217010402 | $16.32 | Shop at ECS Tuning | ||||
| 11 | Senkschraube | 4 | 51219463885 | Shop at ECS Tuning | ||||||
