Vorderwand for BMW MINI R56 Cooper (2007)

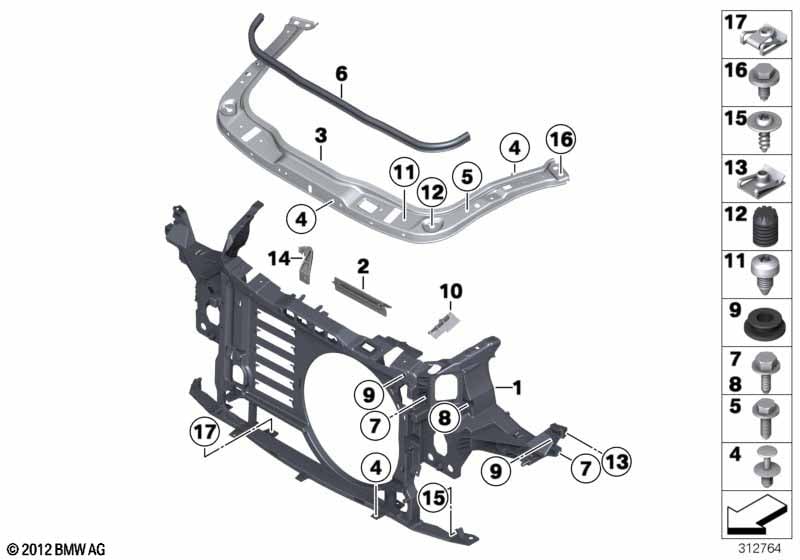

This Vorderwand technical drawing provides a detailed breakdown of the assembly for the MINI R56 Cooper. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2007.
| Nr. | Beschreibung | Erläuterungen | Anzahl | Von | Bis | Teilenummer | Preis | Ergänzungen | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Vorderwand | 1 | 08/2010 | 51647145012 | $274.03 | Shop at ECS Tuning | ||||
| 02 | Staudruckklappe | 5 | 51642751397 | $8.53 | Shop at ECS Tuning | |||||
| 03 | Schlossbrücke | 1 | 08/2010 | 51712751260 | $175.68 | Shop at ECS Tuning | ||||
| 04 | Spreizniet | D = 8MM | 8 | 51471911992 | $0.40 | Shop at ECS Tuning | ||||
| 05 | Sechskantschraube | M6X20 | 2 | 05/2010 | 51642756420 | $0.82 | Shop at ECS Tuning | |||
| 06 | Dichtung Frontklappe vorne | 1 | 51712751261 | $10.84 | Shop at ECS Tuning | |||||
| 07 | PT-Schraube | M5X16 | 6 | 51642753389 | $0.69 | Shop at ECS Tuning | ||||
| 08 | PT-Schraube | M5X16 | 11 | 51642752568 | $0.86 | Shop at ECS Tuning | ||||
| 09 | Tülle | 1 | 17132751855 | $2.37 | Shop at ECS Tuning | |||||
| 10 | Verstärkung Vorderwand | 1 | 51642755091 | $1.88 | Shop at ECS Tuning | |||||
| 11 | Torxschraube mit Scheibe | M6X12 | 4 | 07146985055 | $0.38 | Shop at ECS Tuning | ||||
| 12 | Anschlagpuffer | 2 | 51232756173 | $1.83 | Shop at ECS Tuning | |||||
| 13 | C-Clip Mutter | M6 | 2 | 51642755037 | $0.58 | Shop at ECS Tuning | ||||
| 14 | Halter Zulaufleitung Klima | 1 | 51112755451 | $3.65 | Shop at ECS Tuning | |||||
| 15 | PT-Schraube mit Scheibe | ISA 5X18 | 4 | 06/2015 | 51642756146 | $0.77 | Entfallen | Shop at ECS Tuning | ||
| 15 | Schraube | V-TS5X20 ZNS3 | 4 | 51119908446 | Shop at ECS Tuning | |||||
| 16 | Sechskantschraube mit Bund | M8X15 | 4 | 07147156546 | $1.36 | Shop at ECS Tuning | ||||
| 17 | C-Clip Mutter | 2 | 07146981767 | $1.33 | Shop at ECS Tuning |
Ergänzungen
- Entfallen = nicht mehr lieferbar.
