Verkleidung hinten for BMW 5 Series G30 LCI 520i (2019)

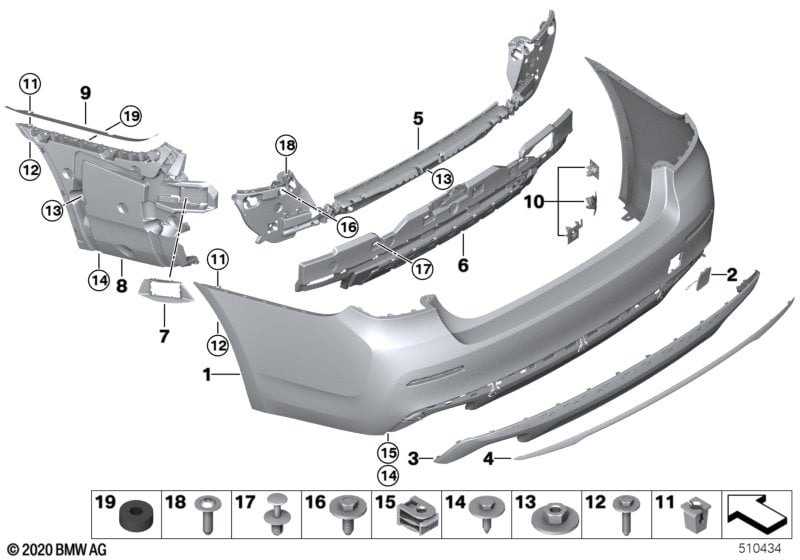

This Verkleidung hinten technical drawing provides a detailed breakdown of the assembly for the 5 Series G30 LCI 520i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2019.
| Nr. | Beschreibung | Erläuterungen | Anzahl | Von | Bis | Teilenummer | Preis | Ergänzungen | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Für Fahrzeuge mit M Aerodynamikpaket |
S715A=Nein |
||||||||
| Für Fahrzeuge mit Luxury Line und Parkassistenzsystem und Parkassistenzsystem Plus |
P7S2A=Ja S5DMA=Ja S5DNA=Ja |
|||||||||
| 01 | Verkleidung Stossfänger hinten | PDC/ PMA | 1 | 51129852175 | Shop at ECS Tuning | |||||
| nur in Verbindung mit | ||||||||||
| -- | Satz Anbauteile Stoßfänger hinten | VALUE PARTS | 1 | 51125B4E201 | Shop at ECS Tuning | |||||
| Für Fahrzeuge mit Luxury Line und Park Distance Control (PDC) und Parkassistenzsystem und Parkassistenzsystem Plus |
P7S2A=Ja S508A=Ja S5DMA=Nein S5DNA=Nein |
|||||||||
| 01 | Verkleidung Stossfänger hinten | PDC | 1 | 51129852174 | Entfallen | Shop at ECS Tuning | ||||
| nur in Verbindung mit | ||||||||||
| -- | Satz Anbauteile Stoßfänger hinten | VALUE PARTS | 1 | 51125B4E201 | Shop at ECS Tuning | |||||
| Für Fahrzeuge mit Luxury Line und Park Distance Control (PDC) und Parkassistenzsystem und Parkassistenzsystem Plus |
P7S2A=Ja S508A=Nein S5DMA=Nein S5DNA=Nein |
|||||||||
| 01 | Verkleidung Stossfänger hinten | 1 | 51129852173 | Entfallen | Shop at ECS Tuning | |||||
| nur in Verbindung mit | ||||||||||
| -- | Satz Anbauteile Stoßfänger hinten | VALUE PARTS | 1 | 51125B4E201 | Shop at ECS Tuning | |||||
| 02 | Abdeckung Abschleppöse hinten grundiert | 1 | 51129852170 | Shop at ECS Tuning | ||||||
| 03 | Verkleidung Stossfänger hinten unten | 1 | 51129498614 | Shop at ECS Tuning | ||||||
| Für Fahrzeuge mit Luxury Line |
P7S2A=Nein |
|||||||||
| 04 | Zierleiste Stossfänger hinten | BASIS | 1 | 51129464222 | Shop at ECS Tuning | |||||
| Für Fahrzeuge mit Länderausführung China und Luxury Line |
L8AAA=Nein P7S2A=Ja |
|||||||||
| 04 | Zierleiste Stossfänger hinten | LUXURY LINE | 1 | 51129464229 | Shop at ECS Tuning | |||||
| 05 | Führung Mitte hinten | 1 | 51129498616 | Shop at ECS Tuning | ||||||
| 06 | Versteifung Stossfänger hinten unten | 1 | 51129498619 | Shop at ECS Tuning | ||||||
| Für Fahrzeuge mit Länderausführung China und Driving Assistant und Driving Assistant Professional |
L8AAA=Nein S5ASA=Ja S5AUA=Ja |
|||||||||
| 07 | Absorbertrichter links | SRR | 1 | 51129465847 | Shop at ECS Tuning | |||||
| 07 | Absorbertrichter rechts | SRR | 1 | 51129465848 | Shop at ECS Tuning | |||||
| 08 | Führung hinten links | 1 | 51129498617 | Shop at ECS Tuning | ||||||
| 08 | Führung hinten rechts | 1 | 51129498618 | Shop at ECS Tuning | ||||||
| 09 | Schutzfolie links | 1 | 51127385755 | Shop at ECS Tuning | ||||||
| 09 | Schutzfolie rechts | 1 | 51127385756 | Shop at ECS Tuning | ||||||
| 10 | Satz Aufnahme PDC-/PMA-Sensor hinten | 1 | 51129852181 | Shop at ECS Tuning | ||||||
| 11 | Spreizmutter | ST 4.8 | 2 | 63121374075 | $0.23 | Shop at ECS Tuning | ||||
| 12 | Sechskantschraube für Kunststoff | 8 | 07149110670 | $0.71 | Shop at ECS Tuning | |||||
| 13 | Kombimutter | 19 | 07147305178 | Shop at ECS Tuning | ||||||
| 14 | Sechskantschraube | TS5X20 SW8 D=22 | 4 | 07149213164 | $0.38 | Shop at ECS Tuning | ||||
| 15 | C-Clip Kunststoffmutter | TS5 | 2 | 07147311312 | Shop at ECS Tuning | |||||
| 16 | Sechskantblechschraube | 2 | 07147151963 | $0.29 | Shop at ECS Tuning | |||||
| 17 | Spreizniet | D = 8MM | 4 | 51471911992 | $0.40 | Shop at ECS Tuning | ||||
| 18 | Linsenschraube | ST5X17-ZNS3 | 2 | 07147127714 | $0.25 | Shop at ECS Tuning | ||||
| 19 | Dichtring | 4 | 51127256354 | Shop at ECS Tuning | ||||||
Ergänzungen
- Entfallen = nicht mehr lieferbar.
