Schliesssystem Tür vorn for BMW 2 Series U06 Active Tourer 218d (2025)

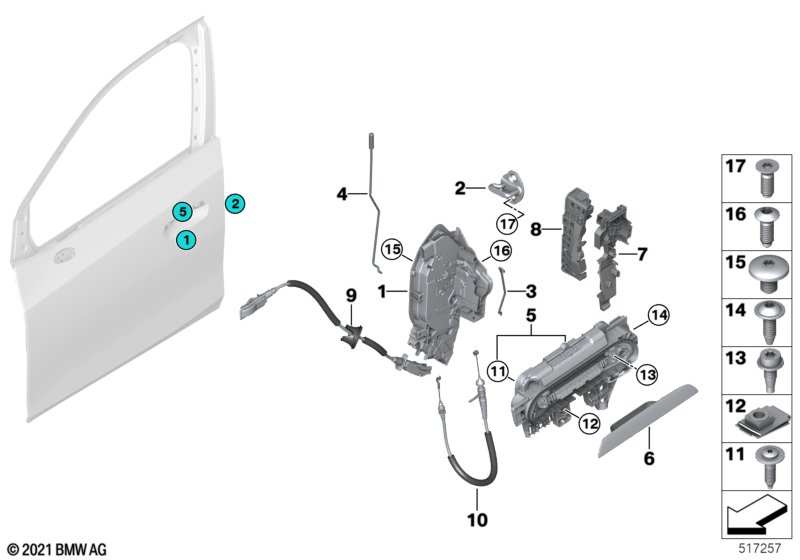

This Schliesssystem Tür vorn technical drawing provides a detailed breakdown of the assembly for the 2 Series U06 Active Tourer 218d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| Nr. | Beschreibung | Erläuterungen | Anzahl | Von | Bis | Teilenummer | Preis | Ergänzungen | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Für Fahrzeuge mit Diebstahlsicherung |
S8TGA=Ja |
|||||||||
| 01 | Systemschloss links | ZS LL | 1 | 07/2023 | 51215A160C5 | Shop at ECS Tuning | ||||
| 01 | Systemschloss rechts | LL | 1 | 07/2023 | 51215A160C8 | Shop at ECS Tuning | ||||
| Für Fahrzeuge mit Diebstahlsicherung |
S8TGA=Nein |
|||||||||
| 01 | Systemschloss links | LL | 1 | 07/2023 | 51215A160B5 | Shop at ECS Tuning | ||||
| 01 | Systemschloss rechts | LL | 1 | 07/2023 | 51215A160B8 | Shop at ECS Tuning | ||||
| 02 | Schliessbügel mit Unterlage | 2 | 51215A67B30 | Shop at ECS Tuning | ||||||
| 03 | Verbindungsstange | LL | 1 | 51218498571 | Shop at ECS Tuning | |||||
| Für Fahrzeuge mit Komfortzugang |
S322A=Ja |
|||||||||
| 05 | Träger Türaussengriff links | 1 | 51215A68EC5 | NoS | Shop at ECS Tuning | |||||
| 05 | Träger Türaussengriff rechts | 1 | 51215A68EC8 | NoS | Shop at ECS Tuning | |||||
| Für Fahrzeuge mit Komfortzugang |
S322A=Nein |
|||||||||
| 05 | Träger Türaussengriff rechts | 1 | 51215A68EC2 | NoS | Shop at ECS Tuning | |||||
| 05 | Träger Türaussengriff links | 1 | 51215A68EC3 | NoS | Shop at ECS Tuning | |||||
| Für Fahrzeuge mit Komfortzugang und BMW Digital Key |
S322A=Nein S3DKA=Ja |
|||||||||
| 05 | Träger Türaussengriff rechts | 1 | 51215A0C432 | Shop at ECS Tuning | ||||||
| Für Fahrzeuge mit Komfortzugang und BMW Digital Key |
S322A=Nein S3DKA=Nein |
|||||||||
| 05 | Träger Türaussengriff rechts | 1 | 51215A0C432 | Shop at ECS Tuning | ||||||
| 05 | Träger Türaussengriff links | 1 | 51215A25803 | Shop at ECS Tuning | ||||||
| Für Fahrzeuge mit Komfortzugang und BMW Digital Key |
S322A=Ja S3DKA=Nein |
|||||||||
| 05 | Träger Türaussengriff rechts | 1 | 51215A0C428 | Shop at ECS Tuning | ||||||
| Für Fahrzeuge mit Komfortzugang und BMW Digital Key |
S322A=Ja S3DKA=Ja |
|||||||||
| 05 | Träger Türaussengriff links | 1 | 51215A25801 | Shop at ECS Tuning | ||||||
| Für Fahrzeuge mit Komfortzugang und BMW Digital Key |
S322A=Ja S3DKA=Nein |
|||||||||
| 05 | Träger Türaussengriff links | 1 | 51215A25801 | Shop at ECS Tuning | ||||||
| Für Fahrzeuge mit Komfortzugang und BMW Digital Key |
S322A=Nein S3DKA=Ja |
|||||||||
| 05 | Träger Türaussengriff links | 1 | 51215A25801 | Shop at ECS Tuning | ||||||
| Für Fahrzeuge mit Komfortzugang |
S322A=Ja |
|||||||||
| 06 | Blende Türaussengriff grundiert links | NFC | 1 | 11/2024 | 51215B5DC01 | Shop at ECS Tuning | ||||
| 06 | Blende Türaussengriff grundiert rechts | 1 | 11/2024 | 51215B5DC02 | Shop at ECS Tuning | |||||
| Für Fahrzeuge mit Komfortzugang |
S322A=Nein |
|||||||||
| 06 | Blende Türaussengriff grundiert | 2 | 02/2023 | 51215A69074 | Shop at ECS Tuning | |||||
| 07 | Adapter Träger Türaussengriff links | LL | 1 | 51215A104B7 | Shop at ECS Tuning | |||||
| 08 | Adapter Träger vorn links | LL | 1 | 51215A2CCF7 | Shop at ECS Tuning | |||||
| 09 | Bowdenzug Türöffner innen vorne | 2 | 51218498553 | Shop at ECS Tuning | ||||||
| 10 | Bowdenzug Türaussengriff vorn | 2 | 51218498561 | Shop at ECS Tuning | ||||||
| 11 | Schraube Träger Türaussengriff | FAHRERSEITE | 1 | 51215A448C0 | Shop at ECS Tuning | |||||
| 11 | Schraube Träger Türaussengriff | 1 | 51215A448C9 | Shop at ECS Tuning | ||||||
| 12 | C-Clip Mutter | 2 | 07147576706 | Shop at ECS Tuning | ||||||
| 13 | ISA-Schraube | M4X10-PF-U1-8.8 | 4 | 07129909775 | Shop at ECS Tuning | |||||
| 14 | Zylinderschraube mit Ansatz | M5 | 1 | 07147154925 | $0.53 | Shop at ECS Tuning | ||||
| 15 | Torxschraube mit Scheibe | ISA M8X12 | 2 | 07149149652 | $0.45 | Shop at ECS Tuning | ||||
| 16 | Linsensenkschraube | 4 | 07147490260 | Shop at ECS Tuning | ||||||
| 17 | Senkschraube | 4 | 51219463885 | Shop at ECS Tuning | ||||||
Ergänzungen
- NoS = No Stock
