Kopfstütze hinten elektrisch for BMW 7 Series E32 750iL (1990)

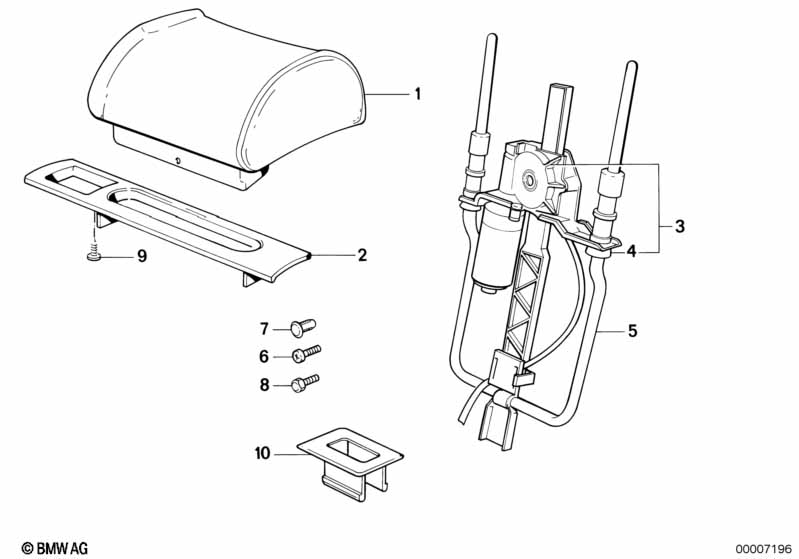

This Kopfstütze hinten elektrisch technical drawing provides a detailed breakdown of the assembly for the 7 Series E32 750iL. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1990.
| Nr. | Beschreibung | Erläuterungen | Anzahl | Von | Bis | Teilenummer | Preis | Ergänzungen | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 02 | Blende links | KARMESINROT | 1 | 52208113619 | $33.31 | Entfallen | Shop at ECS Tuning | |||
| 02 | Blende rechts | KARMESINROT | 1 | 52208113620 | $33.31 | Entfallen | Shop at ECS Tuning | |||
| 02 | Blende links | SCHWARZ | 1 | 09/1987 | 52201969257 | $34.43 | Entfallen | Shop at ECS Tuning | ||
| 02 | Blende rechts | SCHWARZ | 1 | 09/1987 | 52201969258 | $32.36 | Entfallen | Shop at ECS Tuning | ||
| 02 | Blende links | BRASIL | 1 | 09/1990 | 09/1991 | 52208140429 | Entfallen | Shop at ECS Tuning | ||
| 02 | Blende rechts | BRASIL | 1 | 09/1990 | 09/1991 | 52208140430 | Entfallen | Shop at ECS Tuning | ||
| 02 | Blende links | SILBERGRAU | 1 | 09/1990 | 52208140419 | $25.67 | Entfallen, +Pfand | Shop at ECS Tuning | ||
| 02 | Blende rechts | SILBERGRAU | 1 | 09/1990 | 52208140420 | $228.79 | Entfallen, +Pfand | Shop at ECS Tuning | ||
| 02 | Blende links | SILBERGRAU-HELL | 1 | 09/1990 | 52208140421 | $33.31 | Entfallen | Shop at ECS Tuning | ||
| 02 | Blende rechts | SILBERGRAU.HELL | 1 | 09/1990 | 52208140422 | $33.31 | Entfallen | Shop at ECS Tuning | ||
| 02 | Blende links | ULTRAMARIN | 1 | 09/1990 | 52208140423 | Entfallen | Shop at ECS Tuning | |||
| 02 | Blende rechts | ULTRAMARIN | 1 | 09/1990 | 52208140424 | Entfallen | Shop at ECS Tuning | |||
| 02 | Blende links | PERGAMENT | 1 | 09/1990 | 52208140425 | $33.31 | Entfallen | Shop at ECS Tuning | ||
| 02 | Blende rechts | PERGAMENT | 1 | 09/1990 | 52208140426 | $33.31 | Entfallen | Shop at ECS Tuning | ||
| 02 | Blende links | PERGAMENT-HELL | 1 | 09/1990 | 52208140427 | Entfallen | Shop at ECS Tuning | |||
| 02 | Blende rechts | PERGAMENT-HELL | 1 | 09/1990 | 52208140428 | Entfallen | Shop at ECS Tuning | |||
| 03 | Stellantrieb Kopfstütze | 2 | 05/1987 | 52201969039 | $214.11 | Entfallen | Shop at ECS Tuning | |||
| 04 | Führungshülse | 4 | 09/1987 | 52208132020 | $1.80 | Shop at ECS Tuning | ||||
| 05 | Bügel | 2 | 09/1987 | 52201964974 | $25.76 | Entfallen | Shop at ECS Tuning | |||
| 06 | Sechskantschraube mit Scheibe | M6X20-Z3 | 4 | 09/1987 | 07119915031 | $0.24 | Shop at ECS Tuning | |||
| 07 | Clip schwarz | 2 | 09/1987 | 52201964201 | $0.38 | Shop at ECS Tuning | ||||
| 08 | Sechskantschraube | M6X10 | X | 09/1987 | 07119900054 | $0.25 | Shop at ECS Tuning | |||
| 08 | Sechskantschraube mit Scheibe | M6X10-Z3-2 | 4 | 09/1987 | 07119915011 | Entfallen | Shop at ECS Tuning | |||
| 09 | Linsensenkblechschraube | ST3,5X9,5 | 2 | 09/1987 | 07119902524 | $0.82 | Shop at ECS Tuning | |||
| 10 | Blende Schalter | SCHWARZ | 2 | 09/1987 | 52201975890 | $6.58 | Shop at ECS Tuning | |||
| 10 | Blende Schalter | KARMESINROT | 2 | 09/1987 | 52208114681 | $8.93 | Entfallen | Shop at ECS Tuning | ||
| 10 | Blende Schalter | BRASIL | 2 | 09/1990 | 09/1991 | 52208116211 | $8.93 | Entfallen | Shop at ECS Tuning | |
| 10 | Blende Schalter | SILBERGRAU | 2 | 09/1990 | 52208116206 | $6.64 | Entfallen | Shop at ECS Tuning | ||
| 10 | Blende Schalter | SILBERGRAU-HELL | 2 | 09/1990 | 52208116207 | $5.19 | Entfallen | Shop at ECS Tuning | ||
| 10 | Blende Schalter | ULTRAMARIN | 2 | 09/1990 | 52208116208 | $8.93 | Entfallen | Shop at ECS Tuning | ||
| 10 | Blende Schalter | PERGAMENT | 2 | 09/1990 | 52208116209 | $6.78 | Entfallen | Shop at ECS Tuning | ||
| 10 | Blende Schalter | PERGAMENT-HELL | 2 | 09/1990 | 52208116210 | $8.93 | Entfallen | Shop at ECS Tuning |
Ergänzungen
- Entfallen = nicht mehr lieferbar.
- +Pfand = plus Altteilepfand (Möglicherweise muss das Altteil im Austausch abgegeben werden)
