Durchlade/Sitz hinten for BMW 5 Series E34 518i (1995)

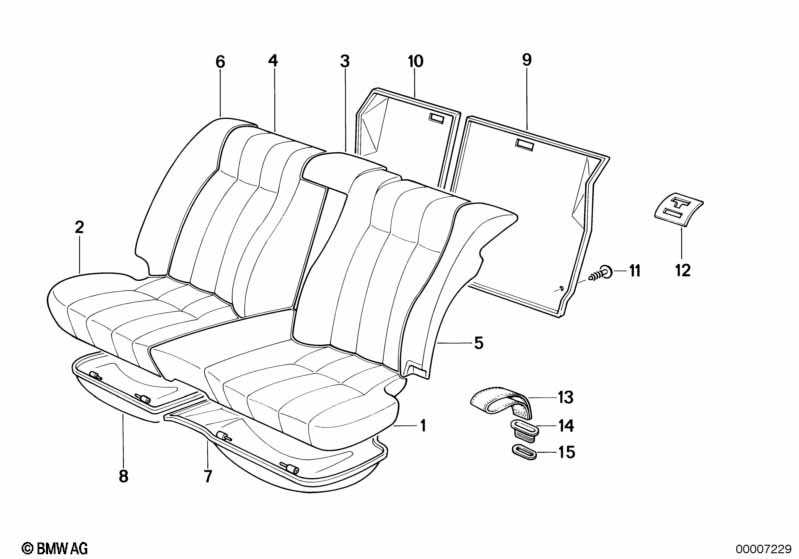

This Durchlade/Sitz hinten technical drawing provides a detailed breakdown of the assembly for the 5 Series E34 518i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1995.
| Nr. | Beschreibung | Erläuterungen | Anzahl | Von | Bis | Teilenummer | Preis | Ergänzungen | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Sitz hinten links | 1 | 52208181373 | Entfallen | Shop at ECS Tuning | |||||
| 02 | Sitz hinten rechts | 1 | 52208181374 | Entfallen | Shop at ECS Tuning | |||||
| 03 | Rückenlehne hinten links | SCHWARZ | 1 | 52208107137 | Entfallen | Shop at ECS Tuning | ||||
| 04 | Rückenlehne hinten rechts | SCHWARZ | 1 | 52208107138 | $326.99 | Entfallen | Shop at ECS Tuning | |||
| 05 | Seitenteil links | 1 | 52208107113 | Entfallen | Shop at ECS Tuning | |||||
| 06 | Seitenteil rechts | 1 | 52208107114 | Entfallen | Shop at ECS Tuning | |||||
| 07 | Verkleidung | 1 | 52208107105 | Entfallen | Shop at ECS Tuning | |||||
| 08 | Verkleidung | 1 | 52208107106 | Entfallen | Shop at ECS Tuning | |||||
| 09 | Verkleidung Lehne links | 1 | 52208107111 | $94.30 | Entfallen | Shop at ECS Tuning | ||||
| 10 | Verkleidung Lehne rechts | 1 | 52208107112 | Entfallen | Shop at ECS Tuning | |||||
| 11 | Stopfen | X | 52208102287 | $0.38 | Shop at ECS Tuning | |||||
| 12 | Blende | SCHWARZ | 2 | 52208107587 | $30.60 | Shop at ECS Tuning | ||||
| 12 | Blende | KARMESINROT | 2 | 52208117817 | $23.16 | Entfallen | Shop at ECS Tuning | |||
| 12 | Blende | ULTRAMARIN | 2 | 09/1990 | 52208139845 | $23.16 | Entfallen | Shop at ECS Tuning | ||
| 12 | Blende | PERGAMENT | 2 | 09/1990 | 52208139846 | $29.54 | Entfallen | Shop at ECS Tuning | ||
| 12 | Blende | SILBERGRAU | 2 | 09/1990 | 52208148630 | $30.60 | Shop at ECS Tuning | |||
| 12 | Blende | SILBERGRAU-HELL | 2 | 09/1990 | 52208148631 | $30.60 | Shop at ECS Tuning | |||
| 13 | Schlaufe Sitz | SCHWARZ | 1 | 52208110884 | Entfallen | Shop at ECS Tuning | ||||
| Polsterleder Bison | ||||||||||
| 13 | Schlaufe Sitz | SILBERGRAU-HELL | 2 | 09/1990 | 52208143987 | Entfallen | Shop at ECS Tuning | |||
| 13 | Schlaufe Sitz | ULTRAMARIN | 2 | 09/1990 | 52208143988 | Entfallen | Shop at ECS Tuning | |||
| 13 | Schlaufe Sitz | PERGAMENT | 2 | 09/1990 | 52208143989 | Entfallen | Shop at ECS Tuning | |||
| Polsterleder Buffalo | ||||||||||
| 13 | Schlaufe Sitz | ANTHRAZIT | 2 | 09/1990 | 52208143991 | Entfallen | Shop at ECS Tuning | |||
| Für Fahrzeuge mit Stoffausführung |
=Ja |
|||||||||
| 13 | Schlaufe Sitz | SILBERGRAU | 2 | 09/1990 | 52208143983 | Entfallen | Shop at ECS Tuning | |||
| 13 | Schlaufe Sitz | ULTRAMARIN | 2 | 09/1990 | 52208143984 | Entfallen | Shop at ECS Tuning | |||
| 13 | Schlaufe Sitz | PERGAMENT | 2 | 09/1990 | 52208143985 | Entfallen | Shop at ECS Tuning | |||
| 14 | Führung | 1 | 52208117497 | Entfallen | Shop at ECS Tuning | |||||
| 15 | Deckel | 1 | 52208117495 | Entfallen | Shop at ECS Tuning | |||||
Ergänzungen
- Entfallen = nicht mehr lieferbar.
