Elektr.Antrieb Schiebedach for BMW 1502-2002tii 1502 (1975)

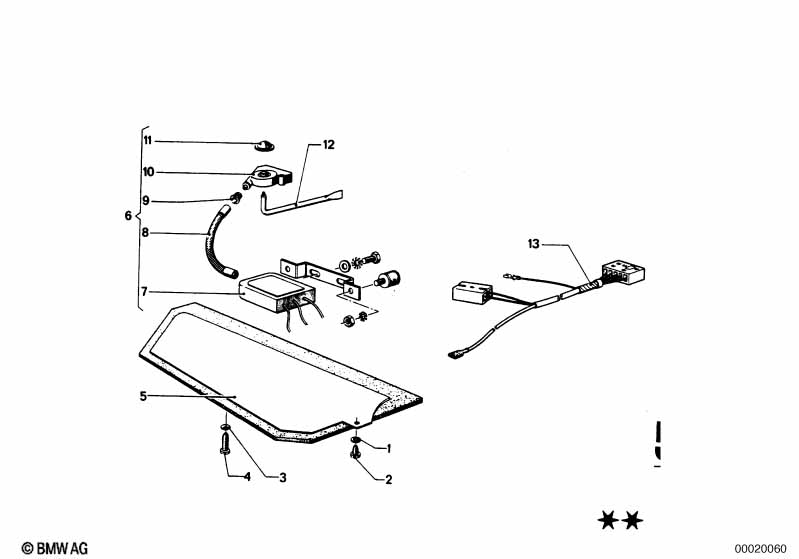

This Elektr.Antrieb Schiebedach technical drawing provides a detailed breakdown of the assembly for the 1502-2002tii 1502. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1975.
| Nr. | Beschreibung | Erläuterungen | Anzahl | Von | Bis | Teilenummer | Preis | Ergänzungen | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Unterlegscheibe | A3,2 | 2 | 07119931015 | $0.09 | Shop at ECS Tuning | ||||
| 02 | Linsenblechschraube | ST2,9X9,5 | 2 | 07119907707 | $0.09 | Shop at ECS Tuning | ||||
| 03 | Hohlscheibe | 2 | 52101813993 | Entfallen | Shop at ECS Tuning | |||||
| 04 | Linsensenkblechschraube | B3,5X22 | 2 | 07119902577 | Entfallen | Shop at ECS Tuning | ||||
| 05 | Abdeckung links | 1 | 54121826923 | Entfallen | Shop at ECS Tuning | |||||
| 05 | Abdeckung rechts | 1 | 54121826924 | Entfallen | Shop at ECS Tuning | |||||
| 07 | Flachmotor | 1 | 08/1973 | 07/1977 | 54121358021 | Entfallen | Shop at ECS Tuning | |||
| 08 | Seilzug | 1 | 54139734132 | $38.81 | Shop at ECS Tuning | |||||
| 09 | Schraube | 1 | 54139634174 | Entfallen | Shop at ECS Tuning | |||||
| 10 | Getriebe Elektrisches Schiebehebedach | 1 | 54139734134 | Entfallen | Shop at ECS Tuning | |||||
| 11 | Abdeckkappe | 1 | 54121806989 | Entfallen | Shop at ECS Tuning | |||||
| 12 | Notbetätigung | 1 | 54121834838 | $27.90 | Entfallen | Shop at ECS Tuning | ||||
| 13 | Kabel | 1 | 61121358369 | Entfallen | Shop at ECS Tuning |
Ergänzungen
- Entfallen = nicht mehr lieferbar.
